Description

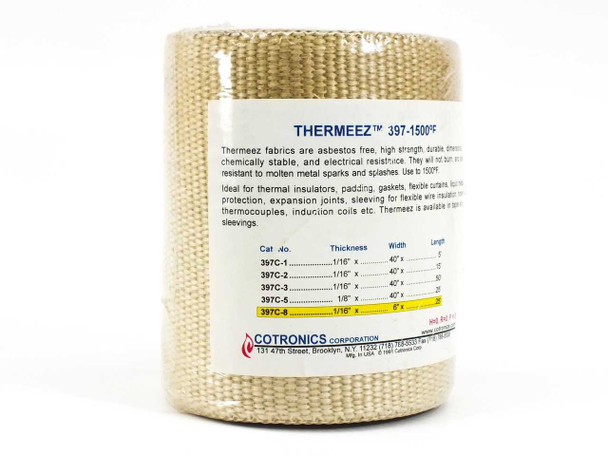

Cotronics Thermeez 397C-8 Ceramic Fiber Cloth 1500°F 6" Wide 25 Ft Asbestos Free
The Cotronics Thermeez 397C-8 is a woven ceramic fiber insulation cloth rated for continuous service up to 1500°F, with a melting point of 2800°F. It is made from industrial-grade, asbestos-free ceramic fibers and comes as a 6-inch wide, 25-foot roll at 1/16-inch thickness. The fabric resists molten metal sparks and splashes and offers measurable dielectric strength, making it suitable for both thermal and electrical insulation tasks.
Specifications & What's Included
- Brand: Cotronics Corporation
- Product Line: Thermeez 397-1500°F
- Catalog Number: 397C-8
- Material: Industrial-grade woven ceramic fiber — asbestos free
- Width: 6 inches
- Length: 25 feet
- Thickness: 1/16 inch
- Max Continuous Service Temperature: 1500°F
- Melting Point: 2800°F
- Density: 35 lb/ft³
- Specific Heat: 0.25 BTU/lb°F
- Dielectric Strength: 450 volts/mil
- Thermal Conductivity @ 500°F: 0.50 BTU-in/Hr°F·ft²
- Thermal Conductivity @ 1000°F: 0.95 BTU-in/Hr°F·ft²
- Manufactured in the USA by Cotronics Corporation, Brooklyn, NY
- Includes: one roll in original Cotronics packaging
Applications
Cotronics Thermeez ceramic fiber cloth is used wherever a flexible, high-temperature insulation material is needed. Common applications include thermal insulators and padding, gasketing, flexible curtains and blankets around furnace openings, liquid metal splash protection, expansion joint packing, and sleeving for flexible wire and cable insulation. It is also used to insulate hoses, thermocouples, and induction coils. The woven ceramic fiber construction allows the cloth to be cut, shaped, and wrapped around irregular forms — something rigid refractory materials cannot do. It sees regular use in foundry, metalworking, kiln, heat-treating, and industrial furnace environments, as well as in laboratory and semiconductor equipment where localized high-temperature insulation is needed in tight spaces.
This Cotronics Thermeez 397C-8 ceramic fiber insulation cloth is new and unused in its original Cotronics packaging. The roll shows no signs of use or wear. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Cotronics |
Model: |
Thermeez 397-1500F |
MPN: |
397C-8 |
Type: |
Woven Ceramic Fiber Insulation Cloth |
SKU: |
48943 |
Seller Notes: |
One roll: 6" wide x 25 ft, 1/16" thick, in original Cotronics packaging. |
Country/Region of Manufacture: |
United States |
Material: |
Industrial-grade ceramic fiber (asbestos free) |
Max Continuous Service Temperature: |
1500°F |
Melting Point: |
2800°F |
Width: |
6 inches |
Length: |
25 feet |
Thickness: |
1/16 inch |
Density: |
35 lb/ft³ |
Dielectric Strength: |
450 volts/mil |
Specific Heat: |
0.25 BTU/lb°F |
Thermal Conductivity at 500°F: |
0.50 BTU-in/Hr°F·ft² |
Thermal Conductivity at 1000°F: |
0.95 BTU-in/Hr°F·ft² |
Form Factor: |
Roll |
Application: |
Thermal insulation, gaskets, curtains, expansion joints, sleeving |
Condition Notes: |
This Cotronics Thermeez 397C-8 ceramic fiber cloth is new and unused in original packaging. No signs of use or wear. Please contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
