Description
Cosmicar Television Lens 12.5mm f/1.4 No.89456 C-Mount CCTV Fixed Focal

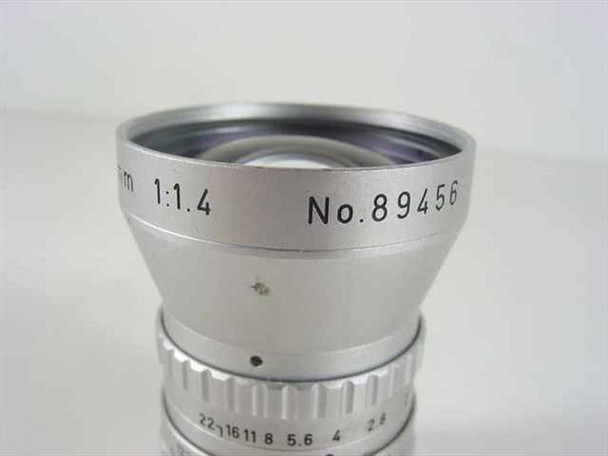

The Cosmicar No.89456 is a fixed focal length television lens with a 12.5mm focal length and a fast f/1.4 maximum aperture. Made in Japan by Cosmicar (the industrial and CCTV lens division of Pentax), this is a manual-iris, manual-focus C-mount prime lens built for use with 2/3" or 1" format video and CCTV cameras. The silver all-metal barrel features engraved aperture and focus scales, with a smooth, well-damped aperture ring running from f/1.4 to f/22.
Specifications & What's Included
- Brand: Cosmicar (Pentax)
- Serial / Part Number: No.89456
- Focal Length: 12.5mm
- Maximum Aperture: f/1.4
- Aperture Range: f/1.4 – f/22 (engraved scale visible on barrel)
- Mount: C-Mount (standard 1-inch, 32 TPI thread)
- Focus: Manual
- Iris: Manual
- Construction: All-metal silver barrel
- Condition: Used — lens only; no front/rear caps, case, or accessories included
Applications
Cosmicar television lenses were designed for use with professional CCTV and industrial video cameras using the standard C-mount. The 12.5mm focal length provides a moderate wide-to-normal angle of view on 2/3" format sensors, making it well suited for surveillance, machine vision, scientific imaging, and industrial inspection systems. Cosmicar lenses from this era — produced under the Pentax industrial brand from the 1960s through the 1980s — are known for their robust all-metal construction and optical quality, and are still used today in machine vision rigs, legacy industrial cameras, and film/video projects that call for a C-mount prime. The fast f/1.4 aperture is especially useful in low-light or controlled-lighting environments common in factory floor and lab imaging setups. C-mount is one of the longest-lived camera mount standards, and these lenses remain compatible with a wide range of modern C-mount machine vision and scientific cameras.
This Cosmicar Television Lens 12.5mm f/1.4 (No.89456) is in good used condition. The silver barrel shows light wear and a few small marks on the front section, as visible in the photos — consistent with normal handling over time. The front and rear glass elements appear clean and intact with no obvious chips or cracks visible. Focus and aperture rings turn smoothly. This is a lens only; no caps, case, or accessories are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Cosmicar |
Model: |
89456 |
MPN: |
89456 |
SKU: |
26361 |
Type: |
Fixed Focal Length Television Lens |
Focal Length: |
12.5mm |
Maximum Aperture: |
f/1.4 |
Aperture Range: |
f/1.4 – f/22 |
Mount Type: |
C-Mount |
Lens Design: |
Fixed Focal Length (Prime) |
Application: |
CCTV, Machine Vision, Industrial Imaging |
Country/Region of Manufacture: |
Japan |
Compatible With: |
C-Mount cameras, CCTV cameras, machine vision cameras |
Seller Notes: |
Lens only — no caps, case, or accessories included. |
Condition Notes: |
This Cosmicar 12.5mm f/1.4 Television Lens No.89456 is in good used condition. The silver barrel shows light handling wear and small marks. Glass elements appear clean and intact. Focus and aperture rings turn smoothly. |
