Description
Cosel PMC100E-1 AC-DC Power Supply 5V 13A +12V -12V 2A 1A 100W 100-240VAC
The Cosel PMC100E-1 is a compact enclosed AC-to-DC switching power supply delivering three regulated DC outputs simultaneously. It accepts a wide-range AC input — 100–120V or 200–240V — making it compatible with both North American and international mains voltages without switching. Output is provided via a screw terminal block, making it straightforward to wire into a panel, chassis, or custom assembly. Manufactured in Japan and certified to UL and CSA standards.
Specifications & What's Included
- Model: Cosel PMC100E-1
- Total Output Power: 100W

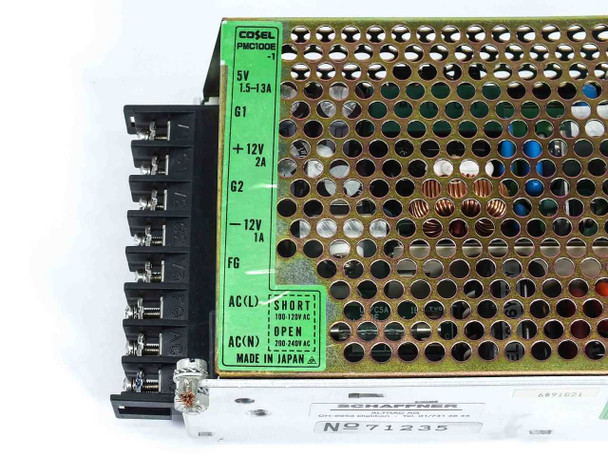

- Output 1 (V1/G1): 5 VDC, 1.5–13A
- Output 2 (V2/G2): +12 VDC, 2A
- Output 3 (V3/FG): -12 VDC, 1A
- Number of Outputs: 3 (triple output)
- Input Voltage: 100–120V AC (SHORT position) / 200–240V AC (OPEN position)
- Input Current: 2.7A @ 100–120V / 1.3A @ 200–240V
- Input Frequency: 50–60 Hz
- Output Connection: Screw terminal block (rear)
- Input Connection: IEC C14 AC inlet
- Form Factor: Enclosed chassis / open-frame style with perforated metal cover
- Certifications: UL, CSA (File LR60474, Level 3); UL mark visible on label
- Country of Manufacture: Japan
- What's Included: Power supply unit only
Applications
The Cosel PMC100E-1 belongs to Cosel's PMC series of enclosed switching power supplies, a line widely used in industrial equipment, scientific instruments, telecommunications hardware, and factory automation systems. The triple-output configuration — 5V logic rail plus symmetrical ±12V rails — is a classic combination found in analog/digital mixed circuits, instrumentation amplifiers, operational amplifier circuits, signal processing boards, and embedded control systems. The wide-range AC input (100–240V) is common in equipment designed for international or multi-facility deployment. Cosel is a well-regarded Japanese manufacturer known in the industrial and instrumentation market; their PMC series supplies are frequently found in OEM equipment produced from the 1990s through the 2000s. These units are still used today in legacy equipment maintenance, lab bench setups, custom electronics builds, and as replacement supplies in industrial machinery that specifies screw-terminal enclosed supplies of this output profile.

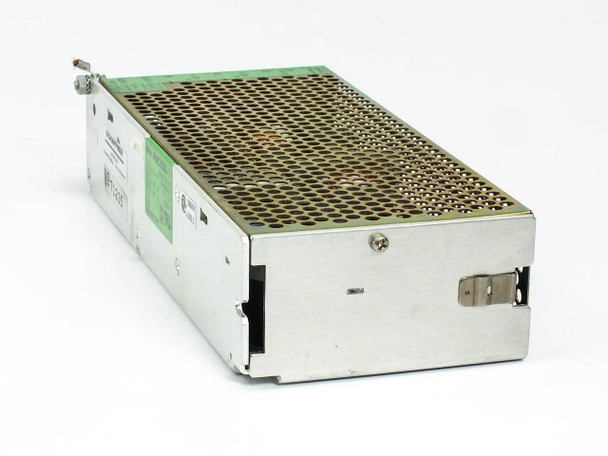

This Cosel PMC100E-1 AC-DC power supply has been inspected and is in good used condition. It was pulled from a working environment where it was actively in service. The chassis shows light surface oxidation/patina consistent with its age — visible on the top and sides — but the unit is structurally intact with no cracks or damage. The screw terminal block and IEC AC inlet are clean and undamaged. The rating label is fully legible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Cosel |
Model: |
PMC100E-1 |
MPN: |
PMC100E-1 |
SKU: |
48755 |
Type: |
AC-DC Enclosed Power Supply |
Output Power: |
100W |
Output Voltage 1: |
5 VDC, 1.5–13A |
Output Voltage 2: |
+12 VDC, 2A |
Output Voltage 3: |
-12 VDC, 1A |
Number of Outputs: |
3 |
Input Voltage: |
100-120V AC / 200-240V AC |
Input Current: |
2.7A (100-120V) / 1.3A (200-240V) |
Input Frequency: |
50-60 Hz |
Output Connection: |
Screw terminal block |
Input Connection: |
IEC AC inlet (C14) |
Form Factor: |
Open Frame / Enclosed Chassis |
Certifications: |
UL, CSA (LR60474 Level 3) |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only — no accessories. Pulled from a working environment. |
Condition Notes: |
Cosel PMC100E-1 AC-DC power supply in good used condition. Pulled from a working environment. Light surface oxidation on chassis consistent with age. Terminal block and IEC inlet are clean. No damage. |
