Description
Corcom 3ET3 EMI Power Line Filter 250VAC 3A 50/60Hz Hardwired RFI Suppressor
L-C Pi network power line filter designed to suppress electromagnetic interference and radio frequency noise on AC mains circuits. Hardwired unit with Molex-style input connector and spade output terminals.
Specifications
- Rated Voltage: 250 VAC
- Rated Current: 3A
- Operating Frequency: 50/60 Hz
- Inductance: 2 × 36.3 mH
- Capacitance: 2 × 0.47 µF (X2), 2 × 0.004 µF (Y)
- Damping Resistor: 330K Ohms
- Certifications: UL, CSA, VDE
Applications
Power line filters of this type were used in industrial equipment, telecommunications apparatus, and test instrumentation to reduce conducted EMI/RFI emissions. Commonly found in telecom switching systems, broadcast equipment, and laboratory instruments requiring filtered AC mains input.
Condition: Used

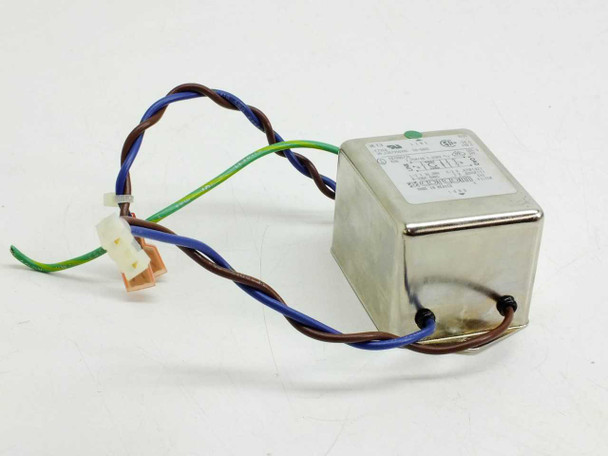

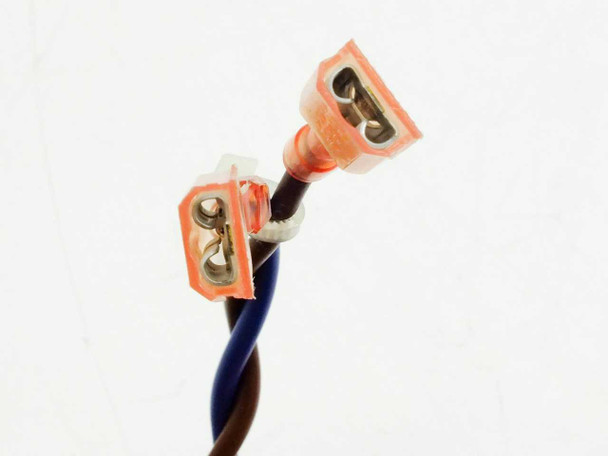

This Corcom 3ET3 EMI Power Line Filter has been inspected and is in good used condition. The metal housing is intact with light surface marks consistent with prior installation. The hardwired leads — blue, brown, and green/yellow — are undamaged, and both the Molex-style input connector and the spade output terminals are present and in usable shape. Please view our photo set and contact us if you have any questions.
This Corcom 3ET3 EMI Power Line Filter has been inspected and is in good used condition. The metal housing is intact with light surface marks consistent with prior installation. The hardwired leads — blue, brown, and green/yellow — are undamaged, and both the Molex-style input connector and the spade output terminals are present and in usable shape. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Corcom |
Model: |
3ET3 |
MPN: |
3ET3 |
Type: |
EMI / RFI Power Line Filter |
SKU: |
46656 |
Rated Voltage: |
250 VAC |
Rated Current: |
3A |
Wiring / Termination: |
Hardwired leads with Molex-style connector and spade terminals |
Filter Topology: |
L-C Pi network (inductors + capacitors) |
Inductance: |
2 x 36.3 mH |
Capacitance: |
2 x 0.47 uF (X2), 2 x 0.004 uF (Y) |
Damping Resistor: |
330K Ohms |
Country/Region of Manufacture: |
Mexico |
Certifications: |
UL, CSA, VDE (per label markings) |
Form Factor: |
Inline / Chassis-mount |
Condition: |
Used – Inspected |
Seller Notes: |
Hardwired unit with Molex-style input connector and spade output terminals. |
Condition Notes: |
Corcom 3ET3 EMI Power Line Filter, used and inspected. Metal housing intact with light surface marks from prior use. All leads intact; Molex connector and spade terminals present and in good shape. |
