Copper

Copper Chilled Water Manifold 3/4" Pipe 4-Branch 1/2" Nibco Ball Valves HVAC

(No reviews yet) Write a Review
SKU:
32269
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout
  • Copper chilled water manifold front view — 3/4" main pipe with 90° elbow feed, four 1/2" Nibco blue-handle brass ball valves on downward branches, surface oxidation and solder joints visible
  • Copper chilled water manifold rear/top view — showing 90° elbow inlet end at left, four Nibco ball valve branches with blue handles pointing upward, solder flux residue and light oxidation on pipe

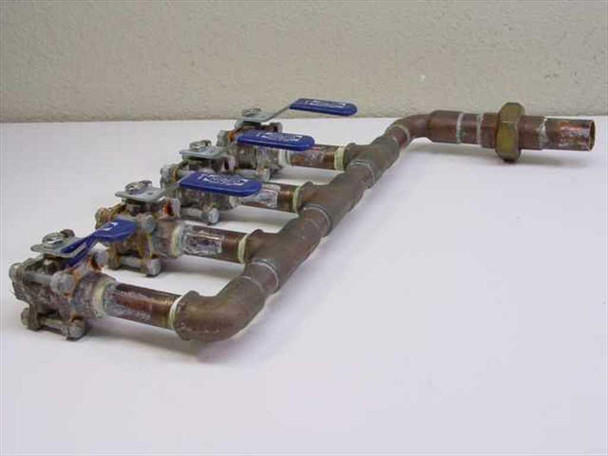

  • Copper chilled water manifold angled side view — 90° elbow outlet end at right with hex fitting, four Nibco ball valve branches visible from side showing valve body detail and solder joints along main run
$60.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Copper Chilled Water Manifold 3/4" Pipe 4-Branch 1/2" Nibco Ball Valves HVAC

This is a custom-fabricated copper chilled water manifold designed to distribute chilled water from a single 3/4" feed line to four independently controlled 1/2" branch circuits. The main run is 3/4" copper pipe terminating at one end with a 90° elbow inlet, measuring approximately 15" from the end to the center of the bend. Each of the four branches is fitted with a 1/2" Nibco brass ball valve, spaced 3" on center along the main run.

Specifications & What's Included

  • Main pipe: 3/4" copper
  • Inlet configuration: 3/4" copper with 90° elbow
  • Overall length: approximately 15" end to center of 90° bend
  • Number of branch outlets: 4
  • Branch size: 1/2"
  • Branch spacing: 3" on center
  • Valves: four 1/2" Nibco brass ball valves (blue lever handles)
  • Construction: soldered copper pipe and fittings throughout
  • Manifold only — no additional fittings, hoses, or hardware included

Applications

Custom copper chilled water manifolds like this one are used in HVAC and hydronic cooling systems to distribute chilled water from a central chiller or air handler to multiple terminal units — such as fan coils, chilled beams, or cooling coils — each on its own individually controlled circuit. The ball valves on each branch allow flow to be shut off to any single zone for balancing, maintenance, or isolation without interrupting the rest of the system. This type of manifold is commonly found in commercial buildings, laboratories, cleanrooms, server rooms, and industrial process cooling applications where precise zone-by-zone control of chilled water flow is needed. The 3/4" copper main with 1/2" branches is well-suited to low-to-medium flow distribution in smaller multi-zone chilled water systems.

Condition: Used
This custom copper chilled water manifold has been inspected and is in good used condition. The photos show light surface oxidation and flux residue on the copper pipe and solder joints, which is normal for used copper plumbing. All four 1/2" Nibco brass ball valves are present and their handles move freely. This manifold was pulled from a working environment where it was previously in service. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
Custom 4-Valve Chilled Water Manifold
MPN:
N/A
Type:
Chilled Water Manifold
SKU:
32269
Main Pipe Size:
3/4" Copper
Branch Size:
1/2"
Number of Branches:
4
Branch Spacing:
3" on center
Valve Brand:
Nibco
Valve Type:
1/2" Brass Ball Valve
Number of Valves:
4
Overall Length:
Approx. 15" end to center of 90° bend
Inlet Configuration:
3/4" copper feed line with 90° elbow
Material:
Copper pipe, brass fittings and valves
Application:
Chilled water distribution, HVAC, hydronic cooling
Seller Notes:
Manifold only — no additional hardware or fittings included.
Country/Region of Manufacture:
United States
Condition Notes:
This custom copper chilled water manifold is in good used condition. Light surface oxidation and flux residue visible on pipe and joints — normal for used copper. All four Nibco ball valves present. Pulled from a working environment.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
