Description
Copper Square Tube Liquid Cooling Heating Coil 16x12" 0.5" Tubing w/ 2 Ports

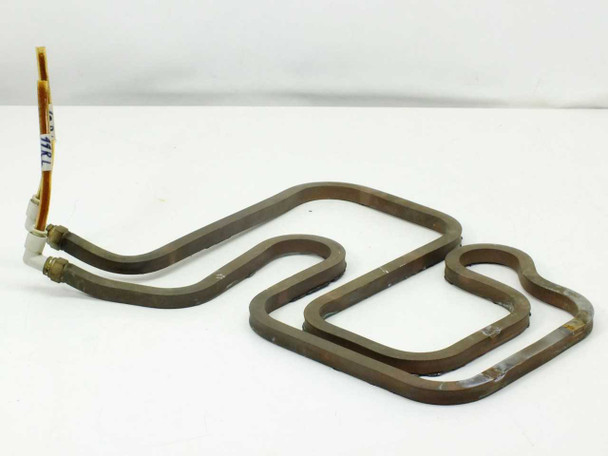

This is a serpentine copper square-tube coil used to circulate liquid for heating or cooling applications. Formed from 0.5" x 0.5" copper square tubing bent into a continuous serpentine path, the coil terminates at two 0.5" open-tube ports (inlet and outlet) joined at a brazed fitting. The overall footprint measures 16 inches long by 12 inches wide by 0.5 inches in profile height. Photos show two coil panels that appear to be a matched pair from the same assembly.
Specifications & What's Included
- Material: Copper
- Tubing profile: Square — 0.5" x 0.5"
- Port size: 0.5" (two ports — inlet and outlet)
- Overall dimensions: 16" L x 12" W x 0.5" H
- Configuration: Serpentine / continuous-path coil
- Port connection: Brazed fitting joining the two port tubes
- Number of ports: 2 (open tube ends, unthreaded)
- Includes: Coil assembly only — no mounting hardware or fittings
Applications
Copper serpentine coils of this type are used in a wide range of liquid-based thermal management systems. Common applications include heated platens, cooling plates for semiconductor processing stages, temperature-controlled chuck or stage assemblies, laboratory heat exchangers, and custom HVAC or industrial process temperature control rigs. The square-tube profile offers a relatively flat, low-profile geometry that makes these coils well suited for embedding in or clamping against flat surfaces where even heat distribution is needed. The two-port design allows connection to an external chiller, heater, or recirculating temperature control unit. Copper is the preferred material in many of these applications for its high thermal conductivity and ease of brazing to custom fittings.
This copper square-tube liquid cooling/heating coil has been inspected and is in good used condition. The copper surfaces show oxidation and patina consistent with prior service use, which is normal for copper components of this type and does not affect function. Both 0.5" port tube ends are open and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Copper Square Tube Cooling/Heating Coil |
Type: |
Liquid Cooling / Heating Serpentine Coil |
Material: |
Copper |
Tubing Profile: |
Square |
Tubing Size: |
0.5" x 0.5" |
Port Size: |
0.5" (two ports — inlet and outlet) |
Overall Dimensions: |
16" x 12" x 0.5" high |
Number of Ports: |
2 |
Application: |
Liquid Heating or Cooling, Thermal Management |
Connection Type: |
Open tube ends (brazed fitting at port junction) |
SKU: |
46560 |
Seller Notes: |
Coil only — no mounting hardware or fittings included. |
Country/Region of Manufacture: |
Unknown |
Condition Notes: |
This copper square-tube cooling/heating coil has been inspected and is in good used condition. Surfaces show normal oxidation and patina from prior use. Both 0.5" port ends are open and intact. |
