Description

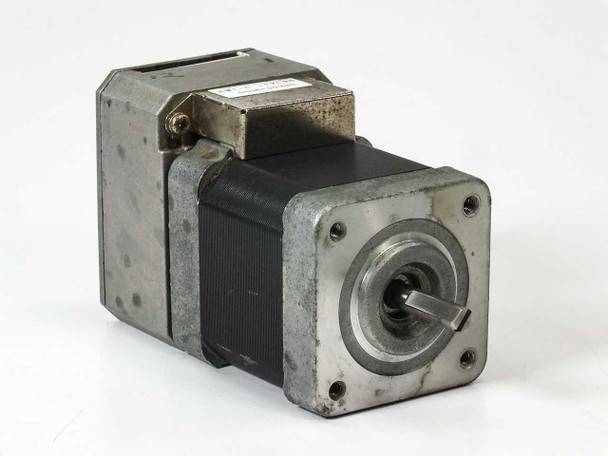

Cool Muscle CM1-C-17L30 Servo Motor 24VDC 18W 3000RPM Pulse Interface NEMA 17
The Cool Muscle CM1-C-17L30 is a compact, self-contained servo motor with an integrated motion controller built directly into the motor body. Unlike a conventional stepper or servo motor that requires a separate external driver, the CM1 series combines the motor, encoder, and controller into a single compact unit. It accepts pulse-train commands and communicates via a serial interface, allowing it to be programmed and controlled directly from a host PC or PLC without additional drive hardware.
Specifications & What's Included
- Model: CM1-C-17L30
- Stepper motor base: KH42KM2B036
- Supply voltage: 24VDC
- Power rating: 18W
- Speed: 3000 RPM
- Interface: Pulse interface with serial communication (requires proprietary interface cable)
- Frame size: NEMA 17 (42mm body)
- Shaft: Keyed output shaft
- Multi-pin connector on rear for communication/power
- Integrated controller/driver — no separate drive required
- Motor only — no interface cable included
Applications
The Cool Muscle CM1 series was developed by Muscle Corporation (Japan) as an all-in-one
Condition: Used
This Cool Muscle CM1-C-17L30 integrated servo motor has not been powered or tested at our facility — we do not have the required interface cable to communicate with the built-in controller. The output shaft turns smoothly by hand. The unit was pulled from a working environment where it had been in service. The body shows light surface wear and some oxidation consistent with used industrial equipment. No interface cable is included. Please view our photo set and contact us if you have any questions.
This Cool Muscle CM1-C-17L30 integrated servo motor has not been powered or tested at our facility — we do not have the required interface cable to communicate with the built-in controller. The output shaft turns smoothly by hand. The unit was pulled from a working environment where it had been in service. The body shows light surface wear and some oxidation consistent with used industrial equipment. No interface cable is included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Cool Muscle |
Model: |
CM1-C-17L30 |
MPN: |
CM1-C-17L30 |
Secondary Model: |
KH42KM2B036 |
SKU: |
49425 |
Type: |
Integrated Servo Motor with Built-In Controller |
Voltage: |
24VDC |
Power Rating: |
18W |
Speed: |
3000 RPM |
Interface Type: |
Pulse Interface |
Frame Size: |
NEMA 17 |
Phase: |
DC |
Shaft Type: |
Keyed Shaft |
Control Type: |
Computer Type / Integrated Controller |
Seller Notes: |
Motor only — no interface cable included |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Compact Integrated Servo Unit |
Condition Notes: |
Cool Muscle CM1-C-17L30 servo motor is untested — no interface cable available to test. Shaft turns smoothly by hand. Pulled from a working environment. Light surface wear. No cable included. |
