Cooke Tokki TP-125 MK III Automatic Fiber Optic Cable Cleaner w/ Foot Pedal

Cooke Tokki TP-125 MK III Automatic Fiber Optic Cable Cleaner w/ Foot Pedal

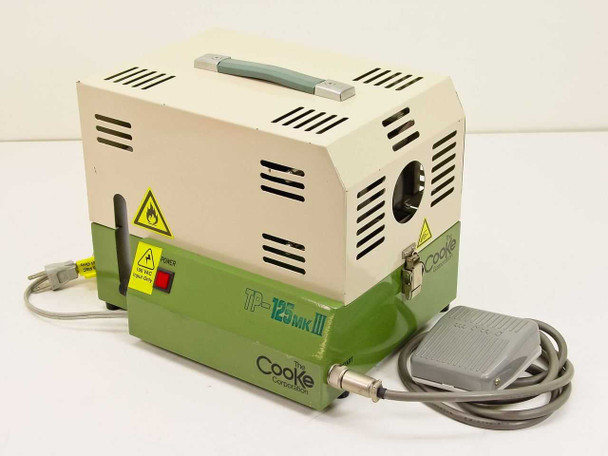

The Cooke/Tokki TP-125 MK III is a benchtop automatic fiber optic cable end-face cleaner designed for precision cleaning and polishing of fiber optic connectors. Manufactured by Tokki Corporation of Tokyo, Japan and sold and serviced in North America by The Cooke Corporation, this machine automates the fiber end-face preparation process using a motorized abrasive wheel and polishing mechanism. The foot pedal allows hands-free cycle actuation, keeping the operator's hands free to position the fiber connector.

Specifications & What's Included

• Model: TP-125 MK III (Type TP-125MKIII)
• Manufacturer: Tokki Corporation, Tokyo, Japan
• Sold and Serviced By: The Cooke Corporation, Auburn Hills, MI
• Manufacture Date: May 20, 2000
• Power Input: 100 VAC Only (as labeled on unit)
• Form Factor: Benchtop with integrated carrying handle
• Drive Mechanism: Motorized polishing/abrasive wheel with belt drive
• Fiber Chuck Assembly: Stainless steel guide rail and chuck assembly with adjustable positioning
• Fluid Reservoir: Integrated white plastic reservoir with tubing for polishing fluid delivery

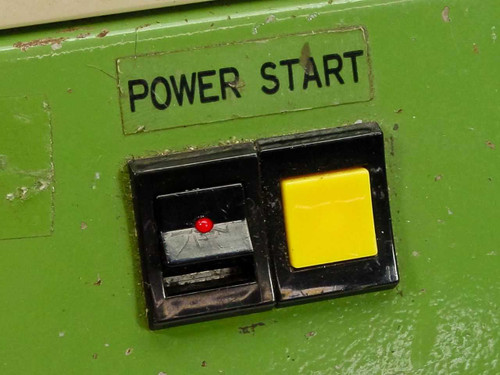

• Front Panel: Red POWER button; laser/fire hazard warning labels
• Foot Switch: Kokusai Dengyo Co., Ltd. Model SFK-1, AC 250V 6A, Part No. 41-22030, Made in Japan
• Foot Switch Connector: XLR-style locking connector to unit START port
• Enclosure: Two-tone cream and green steel enclosure with ventilation slots
• Included: Unit + foot switch assembly

Applications

The TP-125 MK III is used for automated cleaning and polishing of fiber optic cable end-faces — a critical step in fiber optic connector termination and maintenance. Properly polished fiber end-faces minimize insertion loss and back-reflection, which are essential to the performance of optical networks, telecom infrastructure, cable TV headends, and laboratory fiber optic test setups. This type of benchtop cleaner/polisher is standard equipment in fiber optic termination shops, telecommunications equipment rooms, and optical research labs. The foot-pedal actuation is particularly useful in production environments where throughput matters and the operator needs both hands on the fiber and connector during the polishing cycle. Equipment of this generation — mid-1990s through early 2000s — was widely used as fiber optic deployment expanded rapidly in telecom and enterprise networking. Tokki Corporation is a Japanese manufacturer known for precision optical fiber processing equipment.
