Conversion Devices SDP 106-3 Power Supply 300W 5V 12V 115-240V PN 175-00136
Industrial-grade embedded power supply module designed to provide multiple regulated DC outputs from standard AC mains. Manufactured in the United States for telecom and industrial equipment applications.
Specifications & What's Included
- Model: SDP 106-3 | MPN: 175-00136
- Input: 115V ±10% or 200–240V AC, 50/60Hz (auto-ranging)
- Output: 5V @ 25A, 12V @ 14A, 12V @ 3A (24A peak)
- Maximum Power: 300W
- Connectors: 20-pin main, 4-pin auxiliary
- Cooling: Internal rear-mounted fan
- Unit only — no accessories included
Applications
This supply type is commonly found in telecommunications infrastructure, industrial control systems, and embedded computing platforms requiring dual-voltage outputs. Typical uses include rack-mount telecom equipment, network processors, and industrial monitoring systems that operate on standard mains power.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

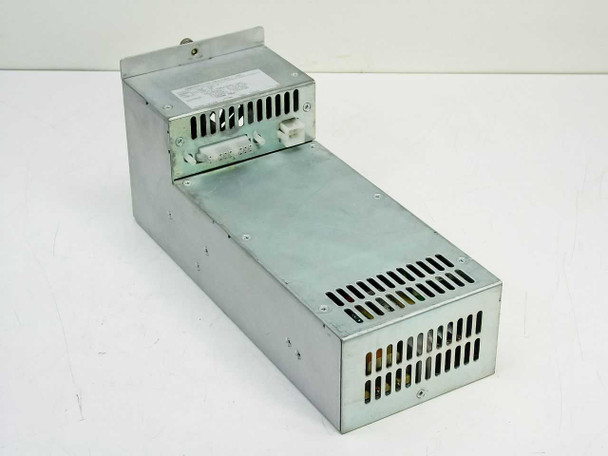

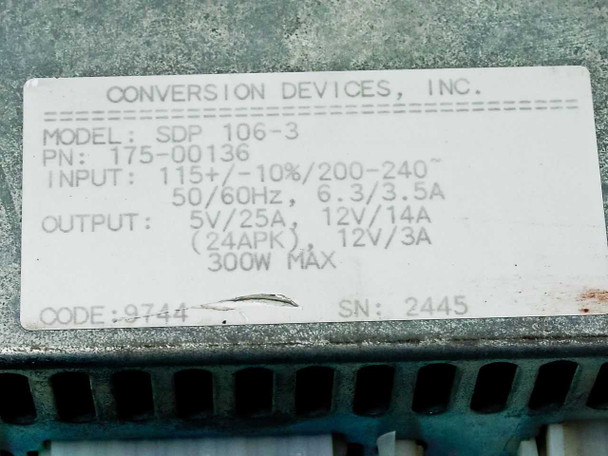

This Conversion Devices SDP 106-3 power supply, PN 175-00136, has been inspected and is in good used condition. It was pulled from a working environment where it was previously in active use. The chassis shows typical light wear consistent with service use; the label is intact and fully legible with all specifications clearly visible. The rear output connectors — a 20-pin main and a 4-pin auxiliary — appear intact with no obvious damage. The cooling fan and front panel switch are present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Conversion Devices, Inc. |
Model: |
SDP 106-3 |
MPN: |
175-00136 |
SKU: |
38547 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only — no accessories included. |
Form Factor: |
Inline / Embedded Module |
Power Requirements: |
115+/-10% / 200-240V AC, 50/60Hz, 6.3/3.5A |
Output Voltage 1: |
5V / 25A |
Output Voltage 2: |
12V / 14A |
Output Voltage 3: |
12V / 3A (24A Peak) |
Maximum Power Output: |
300W |
Input Voltage: |
115V / 200-240V AC (auto-ranging) |
Input Frequency: |
50/60Hz |
Input Current: |
6.3A @ 115V / 3.5A @ 200-240V |
Connector Type: |
20-pin main connector, 4-pin auxiliary connector |
Cooling: |
Internal fan (rear-mounted) |
Country of Manufacture: |
United States |
Condition Notes: |
Conversion Devices SDP 106-3 power supply (PN 175-00136) inspected and in good used condition. Pulled from a working environment. Chassis shows light service wear; connectors and label intact. Please contact us with any questions. |
