Description
Controlled Power Co Series 800 Power Purification System 2KVA 120VAC 5AAX-2K-8-C
The Controlled Power Company Series 800 is a benchtop power purification system that conditions incoming AC line power before delivering it to connected equipment. It accepts standard 120V AC single-phase input and provides a filtered, regulated 120V AC output, reducing electrical noise, transients, and line disturbances that can interfere with sensitive electronic equipment. Manufactured by Controlled Power Company of Troy, Michigan, this unit is UL Listed and carries catalog number 5AAX-2K-8-C.
Specifications & What's Included
- AC Input Voltage: 120V AC
- AC Input: Single Phase, 60 Hz
- Input KVA: 2.35 KVA
- AC Output Voltage: 120V AC
- Output KVA: 2 KVA
- Catalog Number: 5AAX-2K-8-C
- System Number: B-1-2460-83
- Date of Manufacture: January 1983
- Certifications: UL Listed (Power Supply 814X)
- Output Receptacles: 4 × NEMA 5-15R (rear panel)
- Cooling: Rear-mounted axial fan
- Front Panel Controls: Rocker power switch, red pilot indicator light
- Form Factor: Benchtop/desktop
- Manufacturer: Controlled Power Company, Troy, Michigan 48084
- Included: Unit only — no accessories
Applications
Power purification systems like the Series 800 are used to protect sensitive electronic equipment from the noise, spikes, and transients that exist on standard commercial AC power lines. They were commonly deployed with early computer systems, laboratory instruments, scientific equipment, and telecommunications gear where clean, stable power was critical for reliable operation. In the early 1980s — when this unit was manufactured — computer systems and precision instruments were highly susceptible to line-borne interference, making line conditioners a standard part of any serious installation. The Series 800 incorporates filtering circuitry and an isolation transformer to attenuate common-mode and normal-mode noise, delivering cleaner power to downstream equipment. This type of conditioner continues to find use today wherever sensitive analog or digital equipment must be isolated from a noisy power environment.

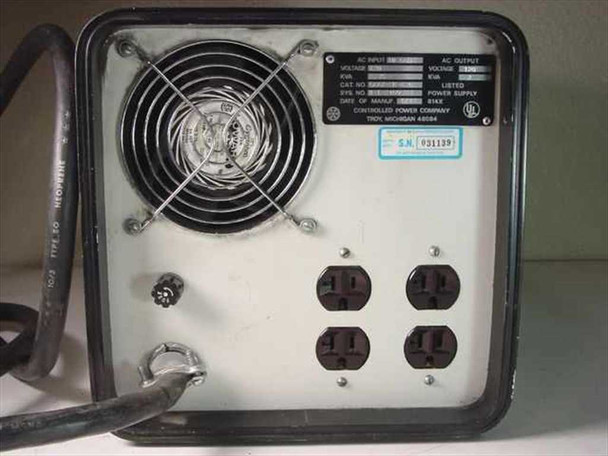

This Controlled Power Company Series 800 Power Purification System has been inspected and appears to be in good used condition. The front panel label, rocker power switch, and red pilot light are intact. The rear panel shows four NEMA 5-15R output receptacles and a large cooling fan, all appearing undamaged. The unit shows light cosmetic wear consistent with age — it dates from January 1983, and the housing has some general surface discoloration typical of equipment of this era. It has not been powered up or tested at our facility, but was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Controlled Power Company |
Model: |
Series 800 |
MPN: |
5AAX-2K-8-C |
Secondary Model: |
B-1-2460-83 |
SKU: |
29939 |
Type: |
Power Purification System / Line Conditioner |
AC Input Voltage: |
120V AC |
AC Output Voltage: |
120V AC |
Input KVA: |
2.35 KVA |
Output KVA: |
2 KVA |
Input Frequency: |
60 Hz |
Phase: |
Single Phase |
Number of Output Receptacles: |
4 |
Output Connector Type: |
NEMA 5-15R |
Certifications: |
UL Listed (Power Supply 814X) |
Country/Region of Manufacture: |
United States |
Date of Manufacture: |
January 1983 |
Form Factor: |
Desktop / Benchtop |
Seller Notes: |
Unit only — no accessories included. |
Condition Notes: |
This Controlled Power Company Series 800 Power Purification System has been inspected and appears to be in good used condition. Not powered or tested at our facility but pulled from prior use. Shows light cosmetic wear typical of its age (mfg. 1/83). |
