Description
Control4 C4-TSMC7-EN-BL 7" Portable Touch Screen WiFi Ethernet Home Control
The Control4 C4-TSMC7-EN-BL is a 7-inch portable touch screen designed for use with Control4 home automation systems. It features an edge-to-edge capacitive glass display and supports both WiFi and Ethernet connectivity, allowing it to communicate with a Control4 Director for monitoring and controlling connected systems throughout a home or commercial installation. Four programmable hard buttons along the bottom edge allow quick access to preset scenes without navigating on-screen menus.
Specifications & What's Included
- Model: Control4 C4-TSMC7-EN-BL
- Screen size: 7 inches
- Touchscreen type: Capacitive, edge-to-edge glass
- Connectivity: WiFi and Ethernet
- Front-facing camera: Yes (visible in photos)

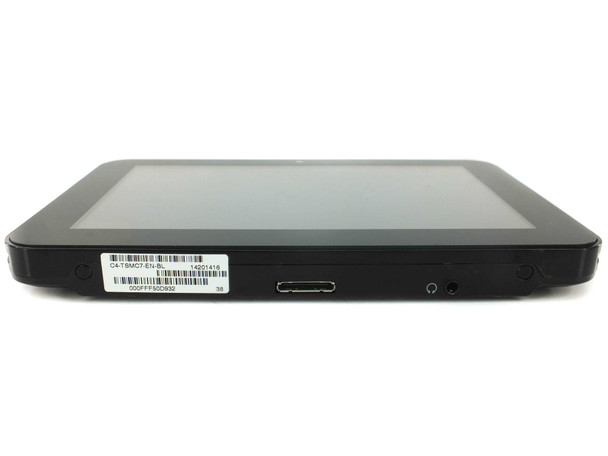

- Charging port: Micro-USB (visible on bottom and side edges)

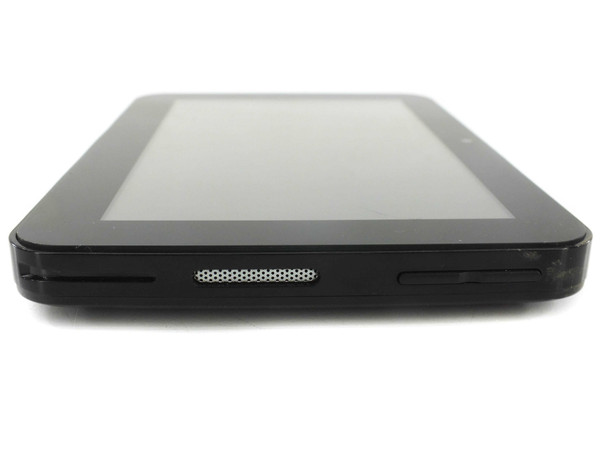

- Audio: Built-in speaker grille (top edge)
- Headphone jack: Yes (visible on bottom edge)
- Four programmable hard buttons (bottom bezel)
- Color: Black
- Intercom functionality: Supported (between compatible Control4 touch screens)
- Included: Touch screen unit only
- Not included: Charging dock / cradle
- Ships with a partial charge
Applications
Control4 touch screens like the C4-TSMC7-EN-BL are used as handheld or tabletop interfaces within Control4 smart home and commercial automation systems. They connect to a Control4 Director (a central controller running the automation logic) over a local WiFi or wired Ethernet network and give the user a graphical interface to control lighting, HVAC, audio/video, security, and other integrated systems from anywhere in the building. The portable form factor makes them well suited for rooms where a wall-mounted panel isn't practical, or as a roaming remote for whole-home control. The C4-TSMC7 model was sold as part of Control4's mid-2010s touch screen lineup, targeting residential integrators and commercial AV installations that required a wireless touchscreen endpoint. These units are commonly sought by integrators expanding an existing Control4 system, homeowners replacing a lost or damaged panel, or buyers setting up a used Control4 system where original hardware is needed.
This Control4 C4-TSMC7-EN-BL 7" Portable Touch Screen has been tested and confirmed in working order. It powers on, the display lights up, and the touchscreen responds to input. The unit may need to be factory reset to clear any existing user settings or configuration from its previous installation. No charging dock or cradle is included — the unit ships with a partial charge. Battery life expectancy is unknown given its used age and history. The back panel shows some light surface marks consistent with normal use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Control4 |
Model: |
C4-TSMC7-EN-BL |
MPN: |
C4-TSMC7-EN-BL |
SKU: |
52744 |
Type: |
Portable Touch Screen Controller |
Screen Size: |
7 inch |
Touchscreen Type: |
Capacitive |
Connectivity: |
WiFi, Ethernet |
Form Factor: |
Handheld / Portable |
Compatible With: |
Control4 Home Automation Systems |
Color: |
Black |
Includes: |
Touch screen only — no charging dock or cradle |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
No charging dock or cradle included. Ships with a partial charge. |
Country/Region of Manufacture: |
China |
Condition Notes: |
Control4 C4-TSMC7-EN-BL 7" touch screen tested and working — powers on, display lights up, responds to touch. May need factory reset. No dock/charger included. Ships with partial charge. Battery life unknown. |
