Description

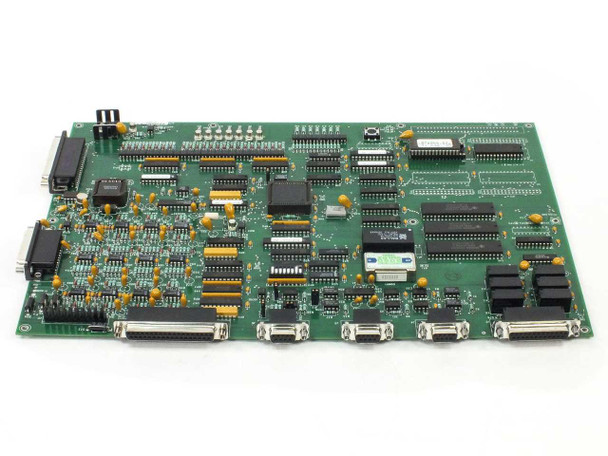

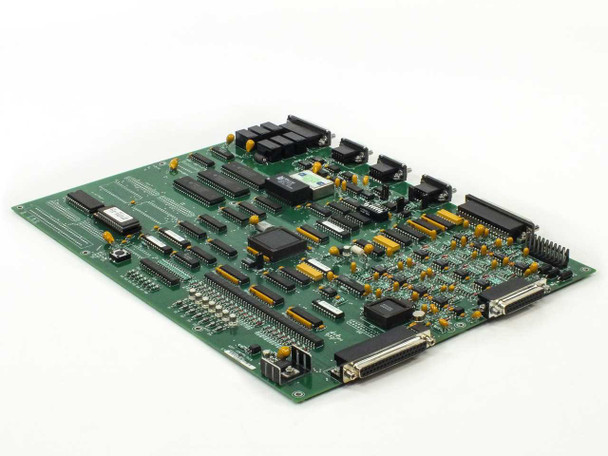

Control PCB Assembly 01015980 REV-14 Industrial Control Board PCB
This is a bare industrial control PCB assembly designed for embedded automation and telecom applications. The board features multiple standard connectors and integrated control circuitry for real-time data handling and signal management.
Specifications & What's Included
- Model: 01015980 REV-14
- Connector types: DB-25, DB-9, internal headers

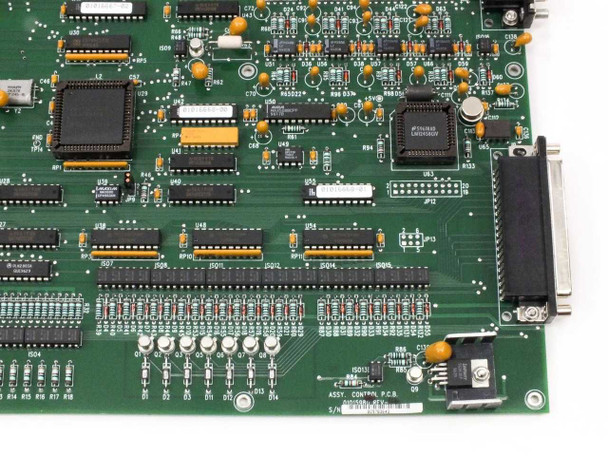

- Key components: Dallas RTC, Sharp PC812 optocoupler, ISO13x series isolators
- Form factor: Bare PCB card
- Includes: Board only; no enclosure or external cables
Applications
Control PCBs of this type are used in industrial automation systems, telecommunications equipment, and process control installations. Boards with RTC and optocoupler circuits typically handle timing-dependent operations, signal isolation, and relay control. The combination of DB connectors suggests compatibility with legacy industrial equipment and DIN-rail mounted systems common in manufacturing and infrastructure environments.
This Control PCB Assembly 01015980 REV-14 is being sold in untested condition. The board has not been powered or functionally tested at our facility. Visually, the board appears to be in good physical shape with no immediately obvious damage, broken traces, or missing components observed. Normal handling marks are present consistent with prior use or storage. The board is sold as-is for parts, repair, integration, or use by buyers able to verify functionality on their own equipment. Please view our full photo set for a detailed look at the board's condition and contact us if you have any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
01015980 |
MPN: |
01015980 |
Secondary Model: |
REV-14 |
SKU: |
50372 |
Type: |
Industrial Control PCB Assembly |
Hardware Revision: |
REV-14 |
Form Factor: |
Bare PCB / Card |
Connector Types: |
DB-25, DB-9, internal headers |
Notable ICs: |
Dallas RTC, Sharp PC812 optocoupler, ISO13x series |
Condition: |
Used – Untested / As-Is |
Seller Notes: |
Board only; no enclosure or external cables included |
Condition Notes: |
This Control PCB Assembly 01015980 REV-14 is being sold in untested condition. The board has not been powered or functionally tested at our facility. Visually, the board appears to be in good physical shape with no immediately obvious damage, broken |
