Description
ComStream CM101 PSK Digital Satellite Modem AADA-CCQB-CCQB 120V 60Hz 135W

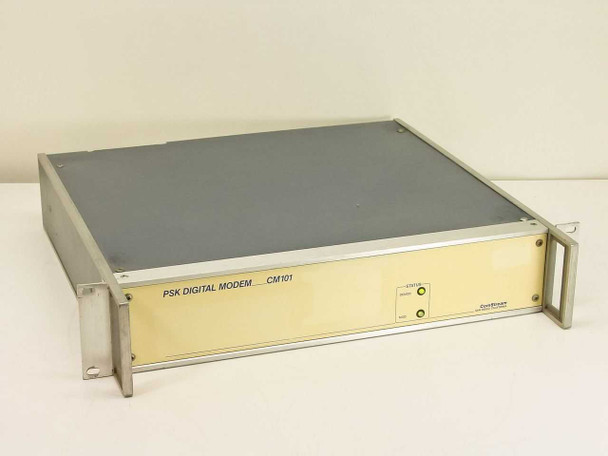

The ComStream CM101 is a rackmount PSK (Phase Shift Keying) digital satellite modem designed for ground-station satellite communications links. It handles both modulation and demodulation in a single 2U chassis, with separate front-panel LED indicators for MOD and DEMOD status. The unit carries model configuration code AADA-CCQB-CCQB and was manufactured by ComStream in San Diego, California.
Specifications & What's Included
- Brand: ComStream — San Diego, California
- Model: CM101

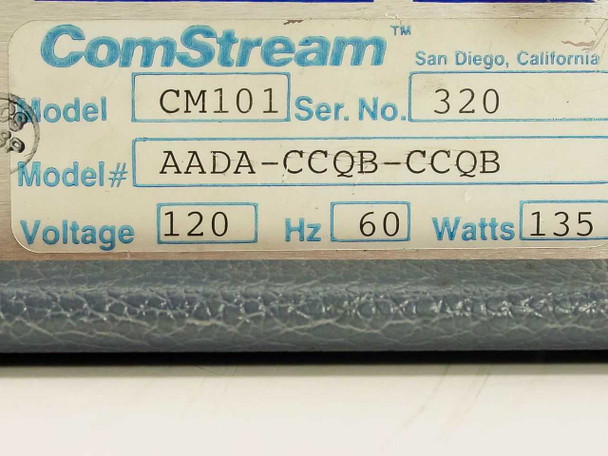

- Model/Config Code: AADA-CCQB-CCQB
- Modulation type: PSK (Phase Shift Keying)
- Form factor: Rackmount (2U approximate), with integrated rack ears
- Power input: 120V AC, 60Hz, 135W
- Fuse: 1.5A SB, 250V AC

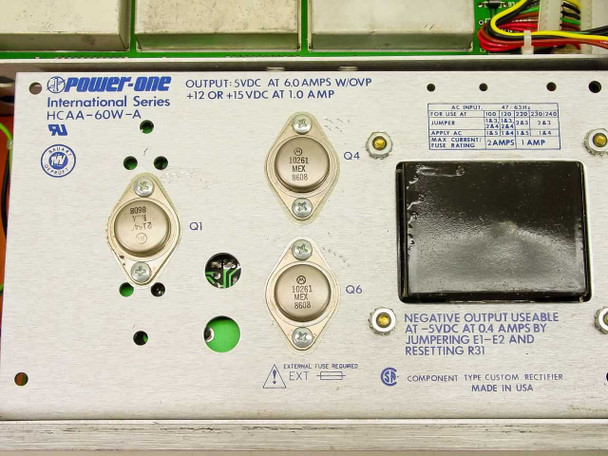

- Internal power supply: Power-One HCAA-60W-A International Series
- PSU outputs: +5VDC @ 6.0A with OVP; +12V or +15VDC @ 1.0A

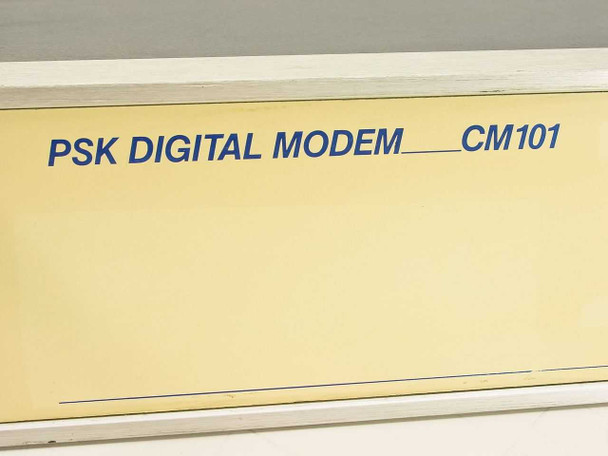

- Front panel: DEMOD status LED, MOD status LED, ComStream branding

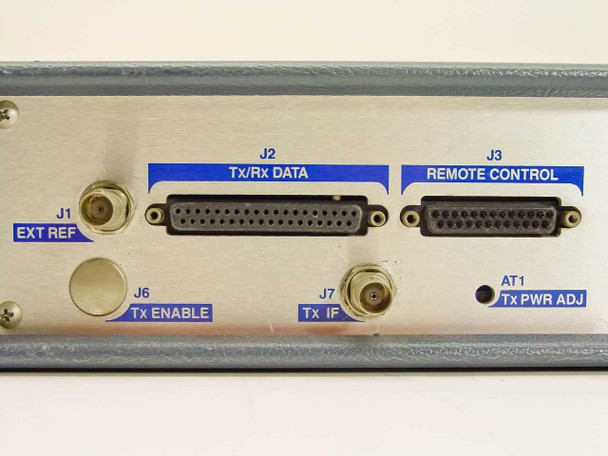

- Rear — J1: BNC — External Reference input
- Rear — J2: D-Sub 37-pin — Tx/Rx Data
- Rear — J3: D-Sub 25-pin — Remote Control
- Rear — J4: BNC — AGC Monitor output
- Rear — J5: BNC — Rx IF input
- Rear — J6: BNC — Tx Enable
- Rear — J7: BNC — Tx IF output
- Rear — AT1: Tx Power Adjustment trimmer
- Rear: IEC AC power inlet, rocker power switch, fuse holder, cooling fan
- Unit only — no accessories, cables, or documentation included
Applications
The ComStream CM101 is a satellite IF modem used in ground-station and VSAT (Very Small Aperture Terminal) satellite communications systems. PSK modems of this type sit between the baseband data equipment and the RF upconverter/downconverter chain, converting digital data streams into IF-frequency PSK-modulated signals for uplink and recovering data from the downlink IF signal. They were widely used in private satellite networks, broadcast contribution links, government/military data links, and enterprise WAN connectivity via satellite throughout the 1980s and 1990s — an era when dedicated satellite bandwidth was the primary means of linking geographically dispersed sites before terrestrial fiber became broadly available. ComStream was a significant manufacturer of satellite modems and related ground-station equipment during this period, and the CM101 represents a typical IF-band modem from that generation. The Remote Control port (J3) allows the modem to be integrated into a network management system for remote monitoring and configuration. Units of this type are still sought by satellite operators maintaining legacy ground station infrastructure, systems integrators, and satellite communications training facilities.

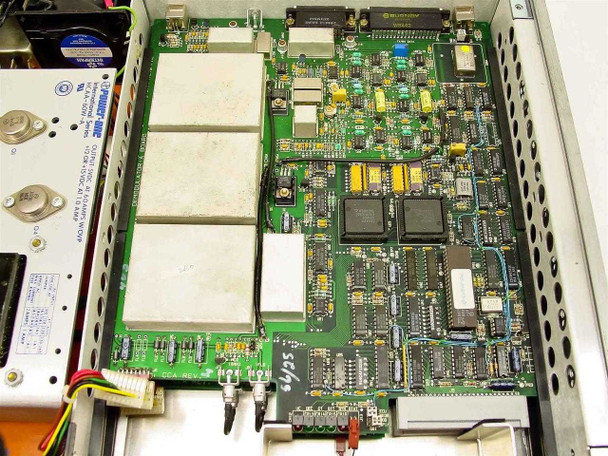

This ComStream CM101 PSK Digital Satellite Modem has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The cream-colored front panel shows light surface wear consistent with normal rack use, and the chassis is intact. Both front-panel status LEDs (MOD and DEMOD) are visible in the photos. The rear connectors and BNC ports appear clean and undamaged. The internal boards and Power-One power supply are intact with no obvious damage visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
ComStream |
Model: |
CM101 |
MPN: |
AADA-CCQB-CCQB |
Secondary Model: |
AADA-CCQB-CCQB |
SKU: |
31435 |
Type: |
PSK Digital Satellite Modem |
Form Factor: |
Rackmount |
Power Requirements: |
120V AC, 60Hz, 135W |
Voltage: |
120V AC |
Frequency: |
60Hz |
Power Consumption: |
135 Watts |
Modulation: |
PSK (Phase Shift Keying) |
Interface - IF Input: |
BNC (Rx IF — J5) |
Interface - IF Output: |
BNC (Tx IF — J7) |
Interface - Data: |
D-Sub 37-pin (J2 Tx/Rx Data) |
Interface - Remote Control: |
D-Sub 25-pin (J3 Remote Control) |
Interface - Ext Reference: |
BNC (J1 Ext Ref) |
Interface - AGC Monitor: |
BNC (J4 AGC Monitor) |
Interface - Tx Enable: |
BNC (J6 Tx Enable) |
Tx Power Adjustment: |
Front-accessible trimmer (AT1 Tx Pwr Adj) |
Status Indicators: |
Front panel LED: DEMOD status, MOD status |
Internal Power Supply: |
Power-One HCAA-60W-A International Series |
PSU Output: |
+5VDC @ 6.0A w/OVP; +12 or +15VDC @ 1.0A |
Fuse Rating: |
1.5A SB 250V AC |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only — no accessories included. Pulled from working environment. |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
ComStream CM101 PSK Digital Satellite Modem in good used condition. Pulled from a working environment where it was actively in use. Light surface wear on front panel. Chassis, connectors, and internal boards intact. No accessories included. |
