I-Bus 4806-1839 Industrial Rackmount Server 120/240V ISA Computer Concepts
The I-Bus 4806-1839 is an industrial-grade rackmount server/PC chassis designed for demanding automation, CNC, and process-control environments. Built by I-Bus (also marketed and integrated by Computer Concepts), this unit houses a large ISA expansion backplane and ships with a full complement of installed I/O expansion cards. It accepts universal AC input and is built to tower or rack-mount orientation for industrial floor or enclosure deployment.
Specifications & What's Included
- Manufacturer: I-Bus
- Model: 4806-1839

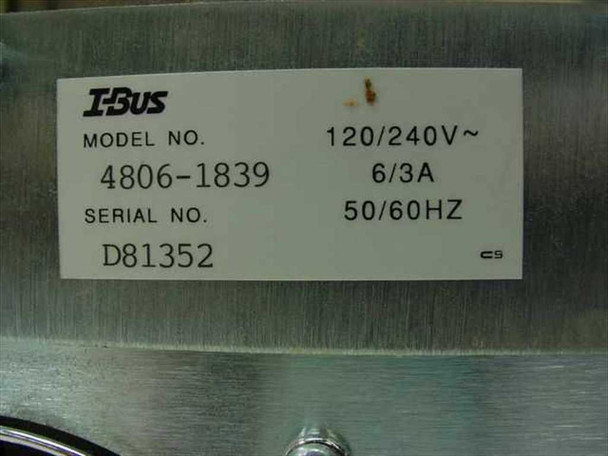

- Input Voltage: 120/240V AC (universal)
- Current Draw: 6A @ 120V / 3A @ 240V
- Frequency: 50/60 Hz
- Bus Architecture: ISA (Industry Standard Architecture)
- Expansion Slots: Approximately 10 ISA slots
- Form Factor: Tower / Rackmount industrial chassis
- Power Supply: Internal, with rear exhaust fan and IEC AC inlet
- Installed Expansion Cards (as labeled on I/O brackets):
- Audio 1
- Audio 2
- Emulator
- Network CNC
- COM 3 (DB-9 serial)
- Monitor (video output)
- Modem
- Network
- LPT 1 (parallel port)
- SCSI
- Connectors visible: DB-25, DB-9, and other I/O connectors on installed card brackets
- Front panel: Floppy drive bay, power/activity indicators, carry handle
Applications
I-Bus industrial PCs of this era were purpose-built for factory automation, CNC machine control, process monitoring, and other industrial computing applications where a standard desktop PC would not be suitable. The ISA bus was the dominant expansion architecture of the late 1980s through mid-1990s, and I-Bus systems were commonly integrated into CNC machining centers, automated test equipment, and supervisory control systems that required multiple dedicated I/O cards — serial, parallel, network, SCSI storage, and audio/modem channels — all running simultaneously within a single ruggedized chassis. The universal 120/240V power supply made these units suitable for both North American and international industrial installations. Today these systems are sought by facilities maintaining legacy CNC or automation equipment that requires a period-correct ISA-bus industrial PC platform, as well as by collectors of industrial computing hardware.
This I-Bus 4806-1839 Industrial Rackmount Server has been inspected and appears to be in good used condition. The chassis shows normal wear consistent with prior industrial service use, including some surface oxidation on the rear metal panel. Multiple ISA expansion cards are installed and visible, with labeled I/O brackets for Audio, Modem, Network, Monitor, COM, LPT, SCSI, and Emulator connections. The unit has not been powered up or tested at our facility, but it came out of a working industrial environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
I-Bus |
Model: |
4806-1839 |
MPN: |
4806-1839 |
Type: |
Industrial Rackmount Server / Industrial PC |
SKU: |
29277 |
Seller Notes: |
Includes installed expansion cards (Audio x2, Modem, Network, Monitor, COM, LPT, SCSI, Emulator). No additional cables or accessories. |
Power Requirements: |
120/240V AC, 6/3A, 50/60Hz |
Voltage: |
120/240V AC |
Current Rating: |
6A @ 120V / 3A @ 240V |
Frequency: |
50/60 Hz |
Form Factor: |
Tower / Rackmount Industrial Chassis |
Bus Type: |
ISA |
Expansion Slots: |
Multiple ISA slots (approx. 10) |
Installed I/O Cards: |
Audio x2, Modem, Network, Monitor, COM 3, LPT 1, SCSI, Emulator, Network CNC |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This I-Bus 4806-1839 Industrial Rackmount Server is in good used condition with normal wear and some surface oxidation on the rear panel. Multiple ISA expansion cards are installed. |
