Compressor Discharge Braided Hose 36" SS JIC Female NPT 2807-12 990827 Pair

Compressor Discharge Braided Hose 36" SS JIC Female NPT 2807-12 990827 Pair

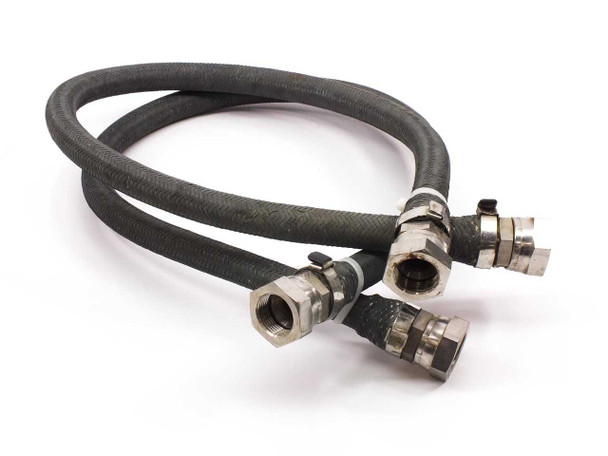

This listing is for a pair of 36-inch stainless steel wire-braided flexible compressor discharge hoses fitted with JIC female NPT hex nut ends. The braided construction provides flexibility and resistance to pressure surge and vibration, making these hoses well suited to connecting compressor discharge ports to downstream piping or equipment where rigid connections are impractical. Both hoses share the same configuration and part numbers.

Specifications & What's Included

• Quantity: Pair (2 hoses)
• Part Number: 2807-12 / 990827
• Secondary Part Number: 2807 408 -12
• Hose length: 36 inches
• Overall length (including fittings): 39.5 inches
• End fitting type: JIC Female NPT
• Hex nut size (large end): 1-7/16"
• Hex nut size (small end): 1-1/4"
• Hose construction: Stainless steel wire braid over inner core
• Rated applications: Hot air, steam, compressor discharge, and most chemical service

Applications

Stainless steel braided flexible hoses of this type are standard fittings in compressed air systems, steam lines, and industrial process piping where a flexible connector is needed between a compressor discharge port and a rigid downstream line. The stainless wire braid resists pressure pulses and protects the inner hose from abrasion, while the JIC female NPT end fittings allow direct connection to standard threaded pipe fittings. These hoses are commonly used in industrial facilities, manufacturing plants, HVAC mechanical rooms, and process environments handling hot air, steam, or aggressive chemical discharge. The NPT end configuration makes them compatible with a wide range of standard industrial pipe fittings. A matched pair is useful when two discharge lines must be plumbed simultaneously, such as on a dual-cylinder or duplex compressor installation.
