Compression Polymers Drip Tray 82x51x12 w/ Foot Pedal Teqcom ATP-2W8P-C

Compression Polymers Drip Tray 82x51x12 w/ Foot Pedal Teqcom ATP-2W8P-C Pneumatic Valve

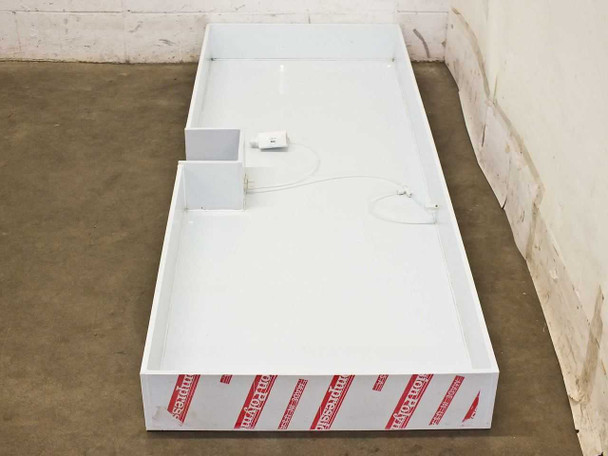

This is a large industrial polymer drip tray from Compression Polymers measuring 82 inches long by 51 inches wide by 12 inches deep. It includes an integrated pneumatic foot pedal drain system built around a Teqcom ATP-2W8P-C pneumatic valve, allowing hands-free drain actuation via a foot-activated air line. The tray is constructed from white polymer with raised sidewalls for fluid containment.

Specifications & What's Included

• Brand: Compression Polymers
• Tray dimensions: 82 x 51 x 12 inches (L x W x D)
• Material: White polymer / plastic
• Includes: Teqcom ATP-2W8P-C pneumatic valve
• Valve model: Teqcom ATP-2W8P-C (visible label confirmed in photos)
• Actuation: Pneumatic foot pedal operated drain

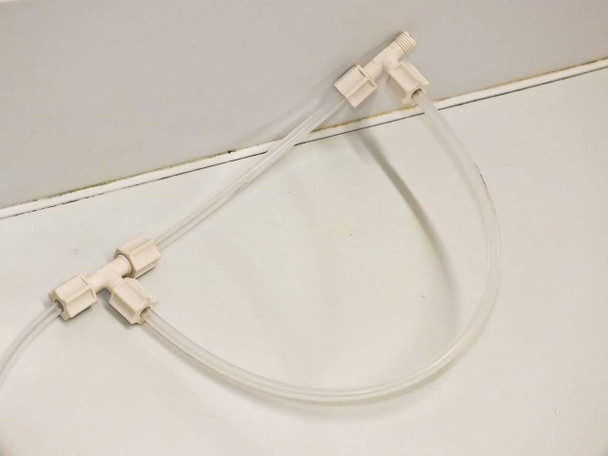

• Includes: White plastic tubing assembly with tee fittings and elbow connectors
• Includes: Small fluid reservoir/manifold block with barbed fittings (visible in photos)
• Valve compartment: Recessed section at one end of tray houses the valve assembly
• Form factor: Floor-mount / freestanding

Applications

Large polymer drip trays of this type are used in plastics processing and injection molding facilities to collect fluid drips, spills, and purge material from presses, extruders, and polymer handling equipment. The pneumatic foot pedal drain eliminates the need to manually open a drain valve while handling materials or operating equipment, making it practical in production environments where hands may be occupied. Drip trays are also used in chemical processing, finishing lines, and industrial wash stations to meet spill containment requirements. The large footprint of this tray — over 82 inches long — is suited to covering the floor zone beneath a full-size injection molding machine or similar large press.
