Description

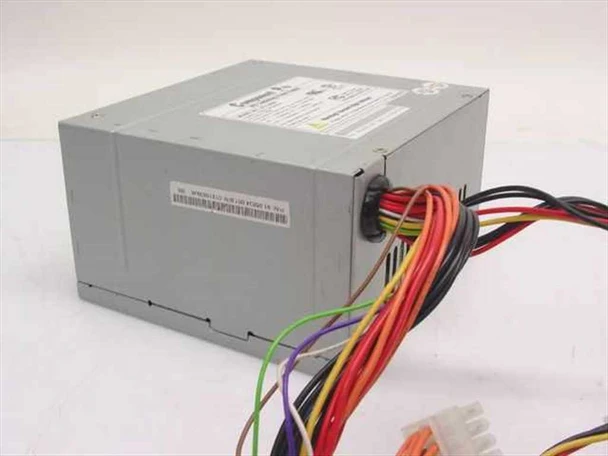

Component Pro ATX-250N 56.04250.G91 250W ATX Switching Power Supply PC
The Component Pro ATX-250N is a 250W ATX switching power supply designed for desktop PCs. It operates on a universal AC input of 115V or 230V at 60Hz/50Hz and delivers regulated DC outputs across the standard ATX voltage rails to power a motherboard, drives, and peripheral cards.
Specifications & What's Included
- Model: ATX-250N
- Part Number: 56.04250.G91
- Total DC Output Power: 250W
- Form Factor: ATX (non-modular)
- AC Input Voltage: 115V / 230V AC
- AC Input Current: 14.0A @ 115V / 8.0A @ 230V
- AC Input Frequency: 60Hz / 50Hz
- DC Output +3.3V: 14.0A (Orange)
- DC Output +5V: 25.0A (Red)
- DC Output -5V: 0.3A (Blue)
- DC Output +12V: 8.0A (Yellow)
- DC Output -12V: 0.8A (Brown)
- DC Output +5Vsb Standby: 0.8A (Purple)
- Maximum combined +3.3V & +5V output: 140W
- Fuse: 6.3A, 250V

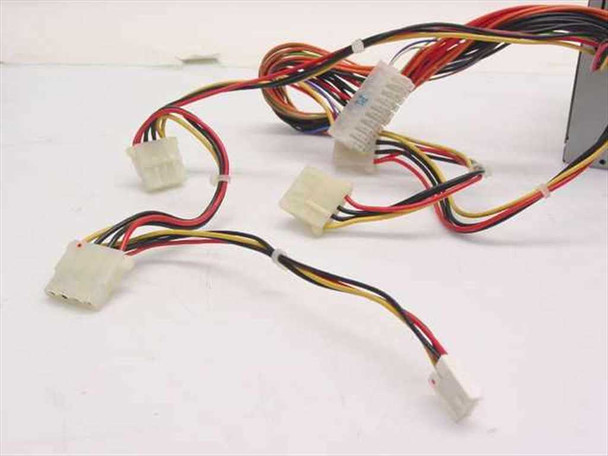

- Main connector: 20-pin ATX motherboard connector
- Drive connectors: Multiple 4-pin Molex peripheral connectors
- Certifications: UL, CSA (LR111897 Level 3), FCC
- Includes: Power supply unit with attached wire harness
Applications
The ATX power supply form factor became the dominant standard for desktop PC builds in the mid-1990s, replacing the earlier AT form factor, and remains in widespread use today. A 250W unit like the ATX-250N is well suited for older Pentium-class through early Athlon/Pentium 4-era desktop systems that draw modest power — particularly machines without a discrete graphics card or with a single optical drive and one or two hard drives. These units are commonly sought as direct replacements in legacy desktop computers, industrial PCs, and point-of-sale terminals that use the standard ATX form factor and do not require the higher wattages demanded by modern gaming or workstation builds. The dual-voltage input (115V/230V) makes the unit compatible with both North American and international AC mains.
This Component Pro ATX-250N (56.04250.G91) 250W ATX switching power supply has been bench-tested at our facility and is in good working condition. The housing shows light surface wear consistent with prior use, but the unit is structurally intact with no cracks or damage. The wire harness and connectors appear clean and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Component Pro |
Model: |
ATX-250N |
MPN: |
56.04250.G91 |
Type: |
ATX Switching Power Supply |
SKU: |
17928 |
Maximum Output Power: |
250W |
Form Factor: |
ATX |
AC Input Voltage: |
115V / 230V AC |
AC Input Current: |
14.0A (115V) / 8.0A (230V) |
AC Input Frequency: |
60Hz / 50Hz |
DC Output +3.3V: |
14.0A (Orange) |
DC Output +5V: |
25.0A (Red) |
DC Output -5V: |
0.3A (Blue) |
DC Output +12V: |
8.0A (Yellow) |
DC Output -12V: |
0.8A (Brown) |
DC Output +5Vsb: |
0.8A (Purple) |
Max Combined +3.3V & +5V: |
140W |
Fuse Rating: |
6.3A, 250V |
Modular: |
No |
Main Connector: |
20-pin ATX |
Drive Connectors: |
Molex (4-pin peripheral) |
Certifications: |
UL, CSA (LR111897 Level 3), FCC |
Seller Notes: |
Power supply only — no mounting screws or documentation included. |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Component Pro ATX-250N 56.04250.G91 250W ATX power supply has been bench-tested and is in good working condition. Light surface wear present. Connectors and harness are intact and undamaged. |
