Compaq 239920-001 238955-002 NVIDIA RIVA TNT2 M64 16MB AGP VGA Card Evo D500

Compaq 239920-001 238955-002 NVIDIA RIVA TNT2 M64 16MB AGP VGA Card Evo D500

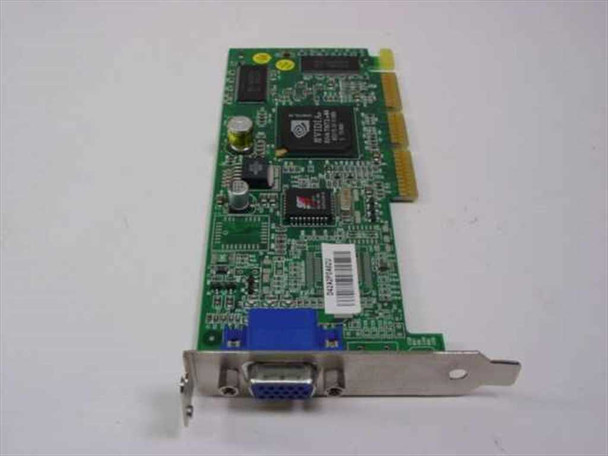

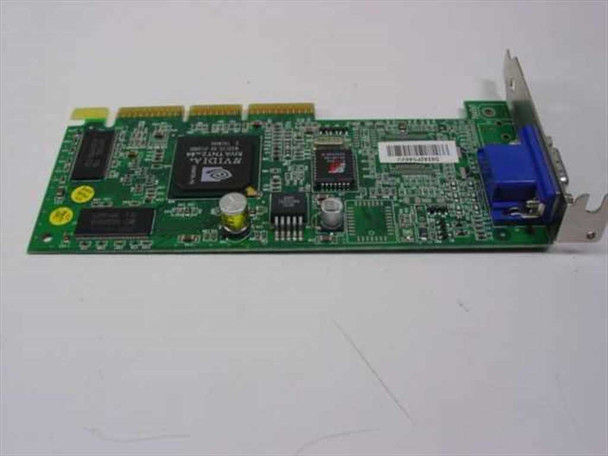

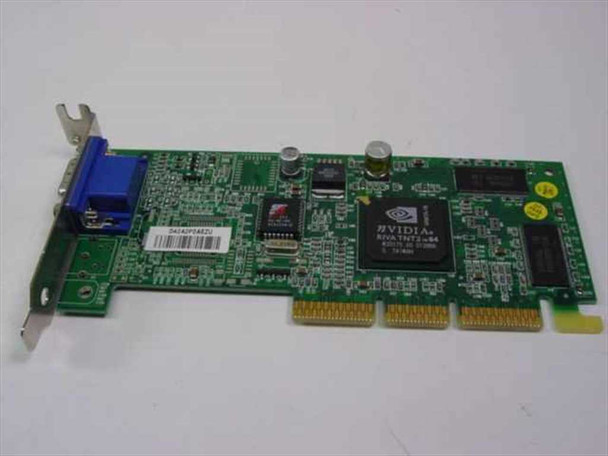

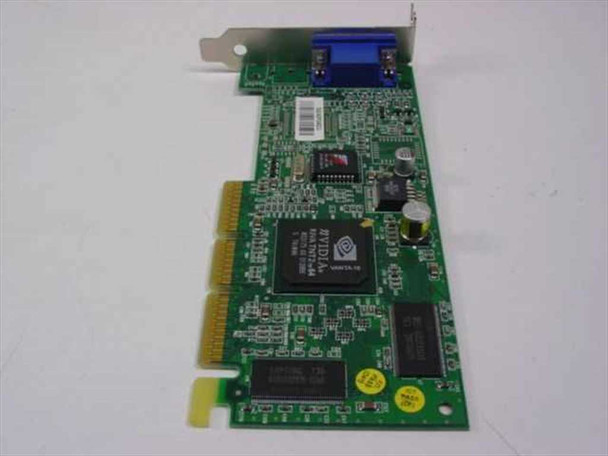

This is an OEM AGP video card produced for the Compaq Evo D Series desktop line, built around the NVIDIA RIVA TNT2 M64 GPU. It provides a single VGA (DE-15) analog display output and carries 16 MB of onboard SDRAM video memory. The card uses a low-profile bracket suited to the Compaq Evo D500 Small Form Factor chassis.

Specifications & What's Included

• Compaq Spare Part No.: 239920-001
• Compaq Assembly No.: 238955-002

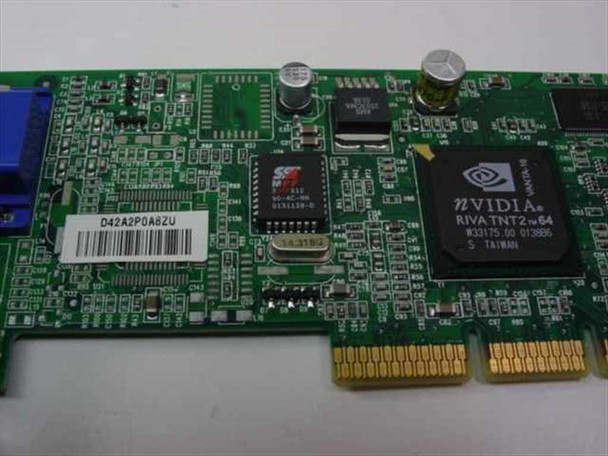

• GPU / Chipset: NVIDIA RIVA TNT2 M64 (chip marking: M33175 00 013006, manufactured in Taiwan)
• Video Memory: 16 MB SDRAM
• Bus Interface: AGP
• Video Output: 1× VGA (DE-15 / HD-15) analog
• Form Factor: Low profile / short bracket
• Compatible Systems: Compaq Evo D500 Small Form Factor, Compaq Evo D Series SFF desktops

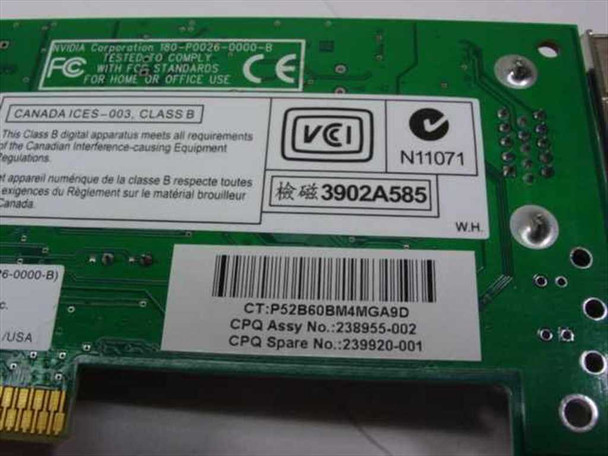

• Regulatory: FCC Class B (180-P0026-0000-B), VCCI, CE
• Card only — no accessories included

Applications

The NVIDIA RIVA TNT2 M64 was a budget-tier member of NVIDIA's late-1990s TNT2 family, introduced in 1999 as a cost-reduced variant of the TNT2 with a narrower 64-bit memory bus. Compaq integrated this GPU into OEM AGP cards for its Evo D-series business desktops — compact Small Form Factor machines built around Intel Pentium 4 processors and used widely in corporate office environments. The card is a direct replacement for the original graphics card in Compaq Evo D500 and related SFF systems, making it valuable to anyone maintaining or restoring one of those machines. It is also used by vintage PC collectors building period-correct late-1990s to early-2000s AGP systems.
