Description
Compaq NetFlex 142041-001 EISA Token Ring Network Controller Card 4/16 Mbps
Full-length EISA network interface card designed for Token Ring connectivity in legacy Compaq servers. Supports dual data rates of 4 Mbps and 16 Mbps with integrated Token Ring daughter module.
Specifications & What's Included
- Bus Type: EISA
- Network Technology: Token Ring
- Data Rate: 4 Mbps / 16 Mbps

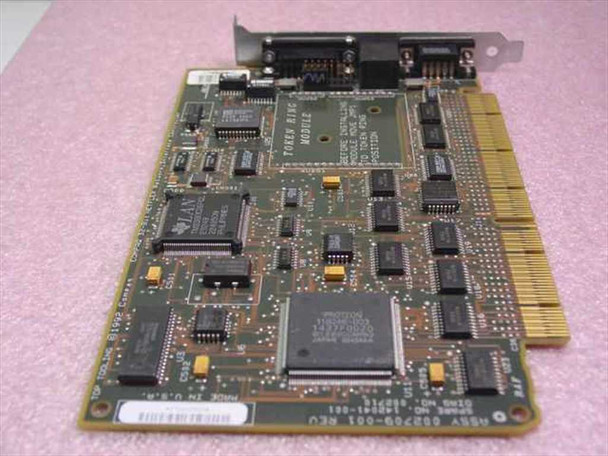

- Main Chipset: Texas Instruments TMS380C26
- Connectors: DB9 (Token Ring), DB25

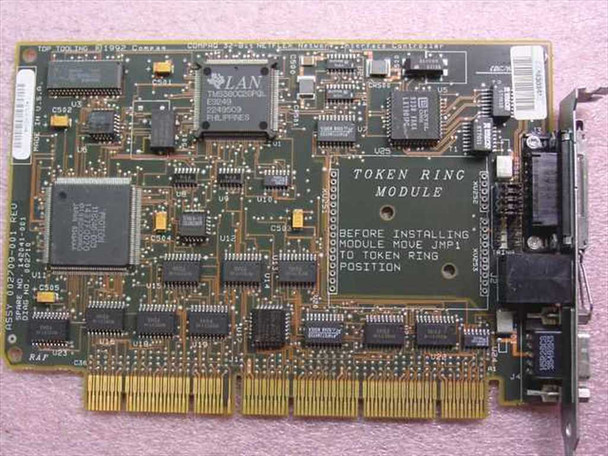

- Token Ring daughter module installed
- Manufactured in Philippines
Applications
This card was used in Compaq ProLiant, Deskpro, and SystemPro EISA servers during the 1990s and early 2000s for Token Ring local area network connectivity. Token Ring technology provided deterministic network access for mission-critical applications in enterprise environments before Ethernet became dominant. Compatible with EISA-bus Compaq systems requiring 4/16 Mbps Token Ring networking.
Condition: Used

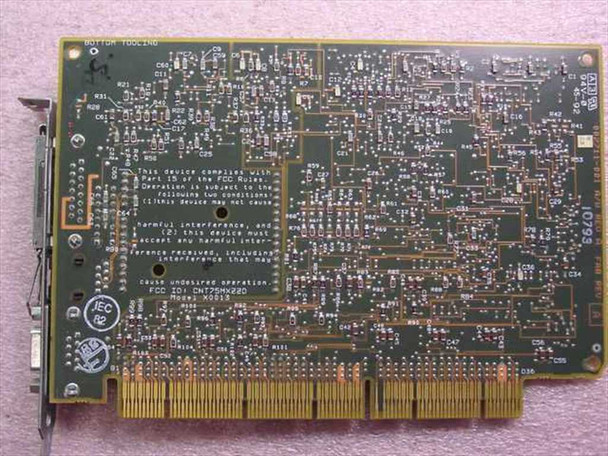

This Compaq NetFlex 142041-001 EISA Token Ring Network Controller Card has been inspected and appears to be in good condition. The PCB is clean with no visible damage, cracked traces, or broken components. The Token Ring daughter module is installed and seated on the card. The EISA edge connector contacts look clean and intact, and the bracket-mounted connectors show only minor normal wear. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Compaq NetFlex 142041-001 EISA Token Ring Network Controller Card has been inspected and appears to be in good condition. The PCB is clean with no visible damage, cracked traces, or broken components. The Token Ring daughter module is installed and seated on the card. The EISA edge connector contacts look clean and intact, and the bracket-mounted connectors show only minor normal wear. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Compaq |
Model: |
NetFlex |
MPN: |
142041-001 |

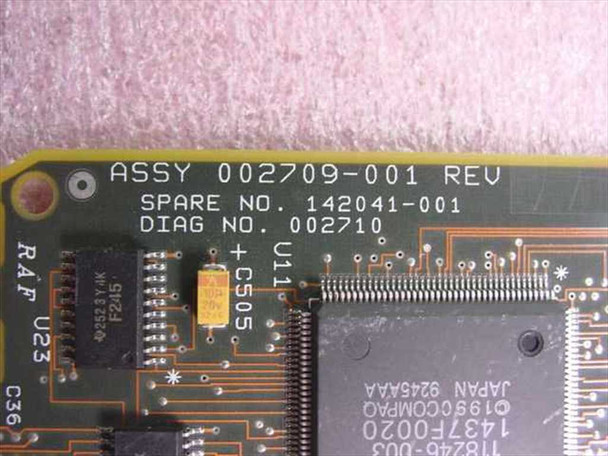

Secondary Model: |
002709-001 |
Diagnostic Number: |
002710 |
SKU: |
32583 |
Type: |
Token Ring Network Controller Card |
Bus Type: |
EISA |
Network Technology: |
Token Ring |
Data Rate: |
4 Mbps / 16 Mbps |
Form Factor: |
Full-Length EISA Card |
Token Ring Module: |
Included (daughter card, installed) |
Main Controller Chipset: |
Texas Instruments TMS380C26 (visible on PCB) |
LAN Controller: |
Texas Instruments (TI LAN chip, visible on PCB) |
Connector Type: |
DB9 (AUI/Token Ring), DB25 |
Country/Region of Manufacture: |
Philippines (per PCB label) |
Compatible With: |
Compaq ProLiant, Deskpro, SystemPro EISA servers |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Token Ring daughter module installed on card. Sold as shown. |
Condition Notes: |
Compaq NetFlex 142041-001 EISA Token Ring Controller Card. Inspected and in good condition. PCB clean, Token Ring module installed, EISA connector intact. Please view photos and contact us with any questions. |
