Description

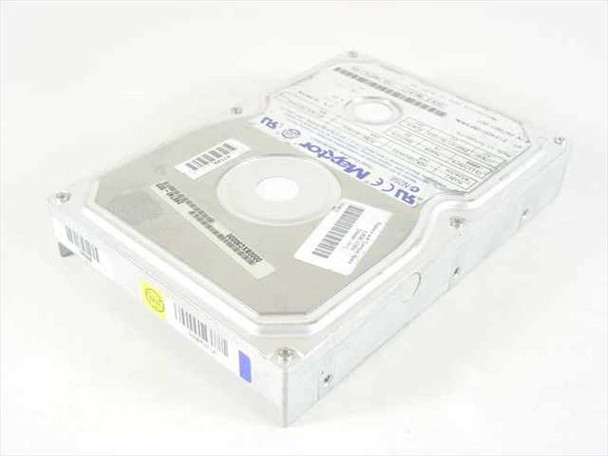

Maxtor 83240D4 3.2GB 3.5" IDE Hard Drive UDMA Compaq Spare 296681-001
The Maxtor 83240D4 is a 3.2GB 3.5-inch IDE (ATA) internal hard drive with UDMA support. It carries the Compaq spare part number 296681-001 and is a direct replacement drive for Compaq desktop systems that originally shipped with this unit. The drive was manufactured by Maxtor in Singapore.
Specifications & What's Included
- Brand: Maxtor
- Model: 83240D4
- Compaq Spare Part Number: 296681-001
- Alternate Part Number: 166580-001
- Capacity: 3.2 GB
- Interface: IDE (ATA) / UDMA
- Form Factor: 3.5-inch
- Cylinders: 6,696
- Heads: 15
- Sectors per Track: 63
- HDA/Uplevel: 04B
- PCBA/Uplevel: 24A
- Jumper (J50): Master/Single – On; Slave – Off
- Connector: 40-pin IDE data connector; 4-pin power/jumper block (visible on rear edge)
- Country of Manufacture: Singapore
- Includes: hard drive only
Applications
The Maxtor 83240D4 is a mid-to-late 1990s IDE hard drive from the era when ATA/UDMA was the standard interface for desktop PCs. Drives in this capacity range were common in Pentium-class and early Pentium II-era systems. As a Compaq-designated spare (296681-001), it was qualified for use in Compaq Deskpro, Presario, and similar desktop platforms of that period. Today these drives are primarily sought by collectors and technicians maintaining legacy Compaq desktops, vintage IBM-compatible PCs, and retro computing setups that require period-correct IDE storage. The 40-pin IDE interface and 3.5-inch form factor are standard for desktop IDE installations of this generation.
This Maxtor 83240D4 3.2GB 3.5" IDE internal hard drive has been tested, formatted, and wiped, and is in good working condition. All previous data has been securely erased. The drive shows normal cosmetic wear consistent with prior use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Maxtor |
Model: |
83240D4 |
MPN: |
83240D4 |
Secondary Model: |
296681-001 |
SKU: |
13442 |
Type: |
Internal Hard Drive (HDD) |
Capacity: |
3.2 GB |
Interface: |
IDE (ATA) / UDMA |
Form Factor: |
3.5" |
Cylinders: |
6696 |
Heads: |
15 |
Sectors per Track: |
63 |
HDA/Uplevel: |
04B |
PCBA/Uplevel: |
24A |
Jumper Setting: |
J50 – Master/Single: On, Slave: Off |
Compatible With: |
Compaq desktops using spare 296681-001 |
Compaq Spare Part Number: |
296681-001 |
Alternate Part Number: |
166580-001 |
Country/Region of Manufacture: |
Singapore |
Condition Notes: |
Maxtor 83240D4 3.2GB IDE hard drive has been tested, formatted, and wiped — in good working condition. All previous data securely erased. Normal cosmetic wear from prior use. Please view photos and contact us with questions. |
