Compaq 270883-001 ISA PCI AGP Backplane Riser Board DeskPro 4000 Series 3546

(No reviews yet) Write a Review
SKU:
17635
MPN:
270883-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Compaq 270883-001 ISA PCI AGP backplane riser board – top view showing ISA and PCI expansion slots

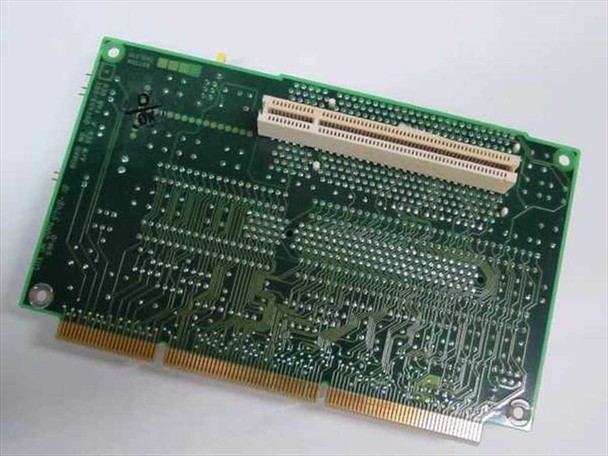

  • Compaq 270883-001 riser board – reverse/solder side view showing edge connector and PCB traces

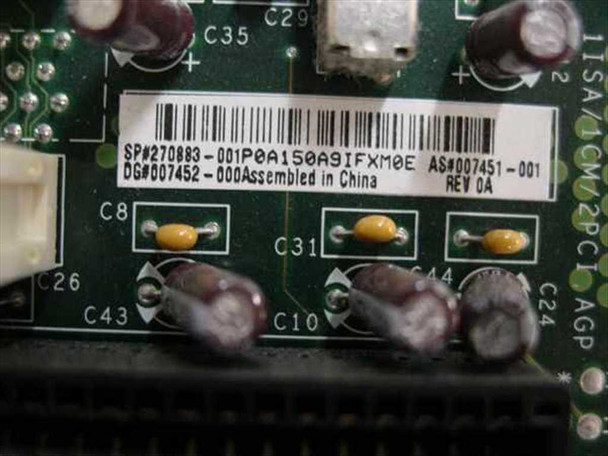

  • Compaq 270883-001 riser board label closeup showing part number SP#270883-001, AS#007451-001, DG#007452-000, Rev 0A, Assembled in China
$24.80
Was: $50.00
Current Stock: 4

Sold Out

Description

Compaq 270883-001 ISA PCI AGP Backplane Riser Board DeskPro 4000 Series 3546

ISA/PCI/AGP backplane riser board designed for the Compaq DeskPro 4000 Series 3546. This expansion board provides multiple slot connectors for adding ISA, PCI, and AGP adapter cards to the system.

Specifications & What's Included

  • Brand: Compaq
  • Model: 270883-001 (Secondary Model: 007451-001)
  • Type: ISA/PCI/AGP Backplane Riser Board
  • Hardware Revision: Rev 0A
  • Compatible With: Compaq DeskPro 4000 Series 3546
  • Expansion Slots: ISA, PCI, AGP
  • Form Factor: Riser Card / Expansion Board

Applications

Riser boards were used in compact desktop systems where vertical space was limited. This board allowed the DeskPro 4000 to support multiple expansion cards by mounting them perpendicular to the motherboard. The board supports legacy ISA slots alongside modern PCI and AGP interfaces, typical of late 1990s systems transitioning between technologies.

Condition: Used
This Compaq 270883-001 ISA/PCI/AGP backplane riser board has been inspected and is in good used condition. It was pulled from a working DeskPro 4000 system where it was in active use. The board shows normal handling wear consistent with removal from a desktop system. The slot connectors and edge connector appear clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
270883-001
MPN:
270883-001
Secondary Model:
007451-001
Assembly Number:
007452-000
Type:
ISA/PCI/AGP Backplane Riser Board
Compatible With:
Compaq DeskPro 4000 Series 3546
Expansion Slots:
ISA, PCI, AGP
Form Factor:
Riser Card / Expansion Board
Hardware Revision:
Rev 0A
Country/Region of Manufacture:
China
Interface:
ISA / PCI / AGP
SKU:
17635
Condition:
Used – Pulled from Working Environment
Seller Notes:
Riser board only; pulled from a working DeskPro 4000 system.
Condition Notes:
Compaq 270883-001 ISA/PCI/AGP riser board in good used condition. Pulled from a working DeskPro 4000 system. Inspected; slot connectors and edge connector appear clean and undamaged.
View AllClose

Related Products

Related Products

Compaq 247392-001 riser board for Deskpro 4000 — angled top view showing ISA and PCI expansion slots with Compaq logo Compaq 247392-001 riser board — reverse top view showing three tan ISA slot connectors and edge connector
Add to Cart
Quick view

Compaq 247392-001 Riser Board Deskpro 4000 ISA PCI Expansion Card 005957-001

Compaq

$22.00
Was: $40.00
Compaq 247392-001 Riser Board Deskpro 4000 ISA PCI Expansion Card 005957-001A riser board for the Compaq Deskpro 4000 desktop system. This expansion card provides additional ISA and PCI slot...
32826
SKU:
32826
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Brand:
Compaq
Model:
247392-001
MPN:
247392-001
Secondary Model:
005957-001
Assembly Number:
005957-001 Rev B
Diagram Number:
005958
Type:
Riser Board / Expansion Card
SKU:
32826
Compatible With:
Compaq Deskpro 4000
Expansion Slots:
ISA (16-bit), PCI
Form Factor:
Riser Card
Bus Interface:
ISA, PCI
Features:
VESA DDC, SCSI LED, Speaker headers, 3.3V
Country/Region of Manufacture:
China
Condition:
Used – Pulled from Working Environment
Seller Notes:
Riser board only; pulled from a working Deskpro 4000 environment.
Condition Notes:
Compaq 247392-001 Deskpro 4000 riser board. Inspected, good used condition. Pulled from a working environment. Normal light wear; no visible damage or broken connectors.

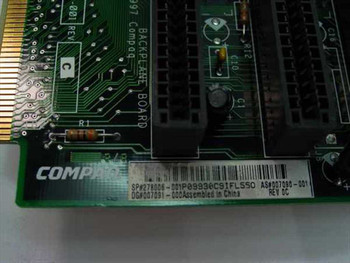

Compaq 278006-001 Backplane Riser Board for Deskpro 2000 — top view showing ISA and PCI expansion slots with Compaq logo Compaq 278006-001 Backplane Board label detail showing part number, Rev DC, AS#007080-001, and Assembled in China markings
