Compaq 172622-001 ISA/CMB/PCI Backplane Board Deskpro 466 Prolinea 450 466

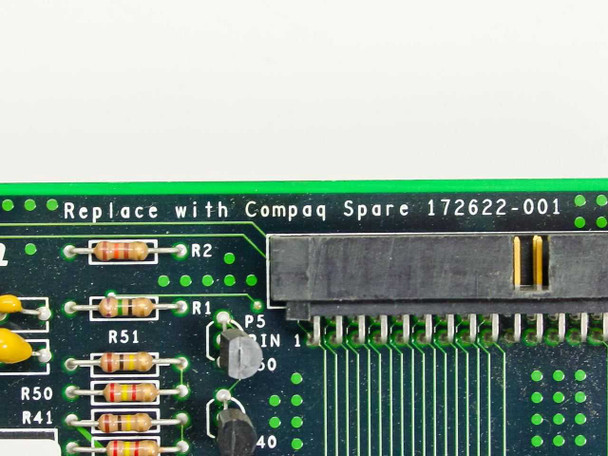

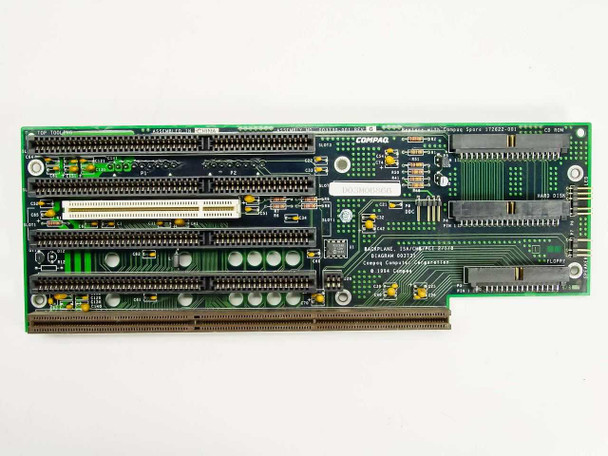

The Compaq 172622-001 is a genuine OEM backplane board designed for the Compaq Deskpro 466 and Prolinea 450/466 desktop systems. The board provides the system's expansion slot infrastructure, routing the ISA, CMB, and PCI buses from the motherboard to the installed expansion cards. The silkscreen on the board reads BACKPLANE, ISA/CMB/PCI 2/1/0 with Diagram 003731, produced by Compaq Computer Corporation in 1994.
Specifications & What's Included
- Part Number: 172622-001 (printed on board: "Replace with Compaq Spare 172622-001")
- Board Type: ISA/CMB/PCI Backplane
- Slot Configuration: ISA/CMB/PCI 2/1/0 (2 ISA, 1 CMB, 0 PCI — as silkscreened on board)
- Diagram Number: 003731
- Manufacturer: Compaq Computer Corporation
- Production Year: 1994
- Compatible Systems: Compaq Deskpro 466, Prolinea 450, Prolinea 466
- Form Factor: Desktop backplane (proprietary Compaq form factor)
- Includes: Backplane board only — no cables, brackets, or accessories
Applications
ISA backplane boards like this one were the expansion hub of mid-1990s desktop PCs, physically connecting ISA and early PCI expansion cards to the system bus. The Compaq Deskpro 466 and Prolinea 466 were part of Compaq's mainstream desktop lineup in the early-to-mid 1990s, based on Intel 486-class processors running at 33–66 MHz. The ISA (Industry Standard Architecture) bus, introduced in the early 1980s with the IBM PC/AT, dominated PC expansion through the early 1990s before giving way to PCI; by 1994 most new systems like this one offered a mixed ISA/PCI backplane as the transition was underway. CMB (Compaq Memory Bus) was a proprietary Compaq interface used on some of its 486-era boards. This backplane is a direct replacement part for any Deskpro 466 or Prolinea 450/466 system experiencing slot or bus connectivity issues, and is also of interest to technicians and collectors maintaining Compaq 486-era hardware.
This Compaq 172622-001 ISA/CMB/PCI backplane board has been inspected and appears to be in good used condition. The board shows normal light wear consistent with prior installation; the PCB, slot connectors, and header pins all look clean and undamaged. It was pulled from a working Compaq desktop environment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
