Compaq 141350-001 3.5" 1.44MB Floppy Drive TEAC FD-235HF Prolinea No Eject

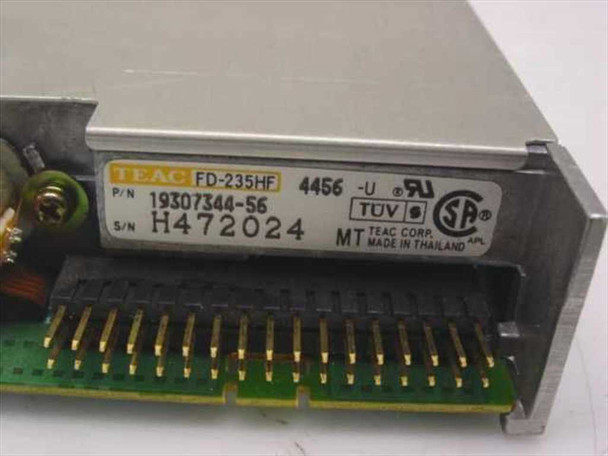

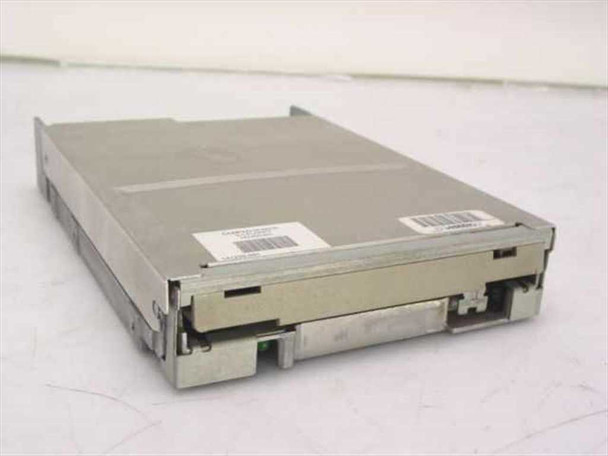

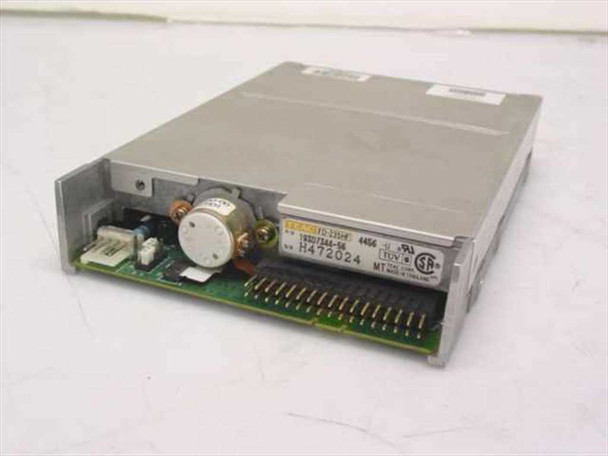

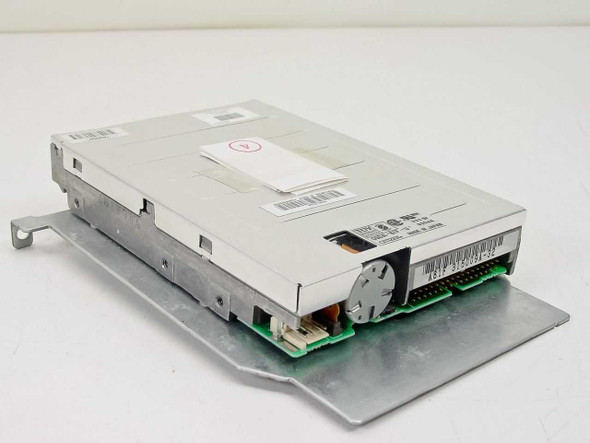

Internal 3.5-inch floppy disk drive manufactured by TEAC for Compaq Prolinea systems. Stores 1.44MB per disk and connects via 34-pin IDC ribbon connector with standard 4-pin Berg power connector.
Specifications & What's Included
- Model: Compaq 141350-001 / TEAC FD-235HF
- Capacity: 1.44MB
- Form Factor: 3.5-inch internal drive
- Interface: 34-pin floppy (IDC ribbon connector)
- Power: 4-pin Berg connector
- Feature: No eject button
- Certifications: UL, TUV, CSA
- Includes: Drive only; no cable or mounting hardware
Applications
This drive was used in Compaq Prolinea desktop systems during the 1990s for data storage and system boot operations. Compatible with Compaq Prolinea 3/25 and similar-era Compaq machines. Floppy drives of this type supported legacy operating systems including DOS, Windows 3.x, and early Windows 95 installations on systems without CD-ROM drives.
Condition: Used
This Compaq 141350-001 3.5" 1.44MB floppy drive (TEAC FD-235HF) has been inspected and appears to be in good used condition. The metal housing shows light surface wear consistent with prior installation use. The 34-pin IDC connector and Berg power connector are intact with no bent pins visible. The TEAC drive label is clean and legible. This drive was tested and is in good working order. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Compaq 141350-001 3.5" 1.44MB floppy drive (TEAC FD-235HF) has been inspected and appears to be in good used condition. The metal housing shows light surface wear consistent with prior installation use. The 34-pin IDC connector and Berg power connector are intact with no bent pins visible. The TEAC drive label is clean and legible. This drive was tested and is in good working order. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Compaq |
Model: |
141350-001 |
MPN: |
141350-001 |
Secondary Model: |
TEAC FD-235HF |
OEM Drive Manufacturer: |
TEAC |
OEM Part Number: |
19307344-56 |
Secondary Part Number: |
141228-001 |
Type: |
3.5" Internal Floppy Disk Drive |
Storage Capacity: |
1.44 MB |
Form Factor: |
3.5-inch Internal |
Eject Button: |
No (no eject button) |
Compatible With: |
Compaq Prolinea 3/25 |
Interface: |
34-pin Floppy (IDC ribbon connector) |
Power Connector: |
4-pin Berg (standard floppy power) |
Country/Region of Manufacture: |
Thailand |
Certifications: |
UL, TUV, CSA |
Condition: |
Used – Inspected |
SKU: |
12308 |
Seller Notes: |
Drive only; no data cable or mounting hardware included. |
Condition Notes: |
Compaq 141350-001 TEAC FD-235HF 3.5" 1.44MB floppy drive. Inspected and tested, in good working order. Light surface wear from prior use. Connector pins intact. Drive only — no cable or hardware included. |
