Codax Speed Lead LR-48 Info Systems Badge Scanner Lead Retrieval 115V-230V
The Codax Speed Lead LR-48 is a self-contained trade show lead retrieval system designed for exhibitors to capture and print visitor badge data on the spot. It combines a barcode badge scanner input, an automatic lead printer, an LCD display, a numeric keypad, and a 3.5" floppy disk drive in a single portable unit. Produced by Speed Lead Info Systems and manufactured in the USA, the LR-48 dates from 1998 and was a widely used tool at trade shows and conventions throughout the late 1990s and early 2000s.
Specifications & What's Included
- Model: Codax Speed Lead LR-48
- Manufacturer: Speed Lead Info Systems (Codax) — Made in USA, © 1998
- AC Input: 50/60 Hz, 115V~ 1A / 230V~ 0.5A (universal voltage)

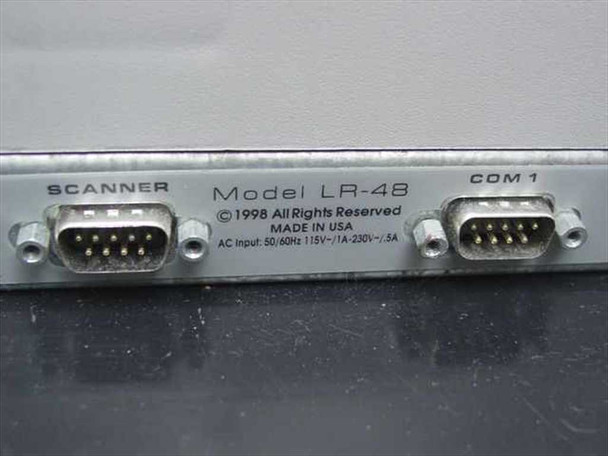

- Scanner Interface: DB-9 serial port (labeled SCANNER) — connects handheld barcode scanner
- COM Port: DB-9 serial port (labeled COM 1) — rear panel
- Display: Front-panel LCD
- Keypad: Integrated numeric/function keypad
- Printer: Built-in automatic lead printer (prints leads immediately after each scan)
- Storage: Internal 3.5" floppy disk drive for saving an extra copy of captured leads
- Paper Feed: Press + button for manual paper advance
- Recommended scan distance: 4" to 6" for optimum performance (per label)
- Form Factor: Benchtop/portable
- Includes: Power cord, black protective carrying case (as shown)
Applications
The Speed Lead LR-48 was designed for exhibitors at trade shows, conferences, and conventions who needed a simple, stand-alone way to capture visitor contact data from scanned badges. Rather than relying on a laptop or separate printer, the LR-48 handled everything in one unit — scan the attendee badge, and the lead printed automatically on the built-in printer. Leads could also be saved to a standard 3.5" floppy disk for later import into a contact database. The system was popular in the late 1990s through the mid-2000s trade show market, particularly for smaller exhibitor booths that needed a reliable, easy-to-operate lead capture solution without complex setup. The universal 115V/230V power input made it suitable for international events as well.
This Codax Speed Lead LR-48 badge scanner and lead retrieval system has been inspected and is in good used condition. The unit powers up and the housing is intact with light surface wear consistent with trade show use. The front-panel LCD display, keypad, built-in printer, and 3.5" floppy drive are all present. Both rear DB-9 serial ports are clean and undamaged. A black protective carrying case is included as shown in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Codax |
Model: |
LR-48 |
MPN: |
LR-48 |
Type: |
Trade Show Badge Scanner / Lead Retrieval System |
SKU: |
27043 |
Condition: |
Used – Inspected and Tested |
Power Input: |
AC 50/60Hz, 115V~ 1A / 230V~ 0.5A |
Interface - Scanner Port: |
DB-9 Serial (SCANNER) |
Interface - COM Port: |
DB-9 Serial (COM 1) |
Storage: |
3.5" Floppy Disk Drive (optional backup) |
Output: |
Built-in thermal/dot printer (auto-prints leads) |
Display: |
LCD |
Country/Region of Manufacture: |
United States |
Year of Manufacture: |
1998 |
Form Factor: |
Benchtop / Portable |
Application: |
Trade show lead capture, exhibitor badge scanning |
Seller Notes: |
Unit only; includes power cord. Carrying case shown in photo. |
Condition Notes: |
Codax Speed Lead LR-48 badge scanner inspected and in good used condition. Housing intact, LCD, keypad, printer, floppy drive, and both DB-9 ports present and clean. Carrying case included. |
