CMI Control Module Inc 2040-002 RS232/485 Comm Snap Module Rev G Time Clock

CMI Control Module Inc 2040-002 RS232/485 Comm Snap Module Rev G Time Clock

The CMI Control Module Inc 2040-002 is an RS232/RS485 Communication Snap Module designed to add serial communication capability to compatible CMI legacy time clock systems. It snaps directly onto the time clock hardware, providing RS-232 and RS-485 interface ports that allow the time clock to communicate with a host computer or network for data collection and management. The unit carries part code CM/232.232/6MJ.485/8MJ and is hardware revision Rev G.

Specifications & What's Included

• Brand: CMI Control Module Inc
• Model / MPN: 2040-002
• Hardware Revision: Rev G

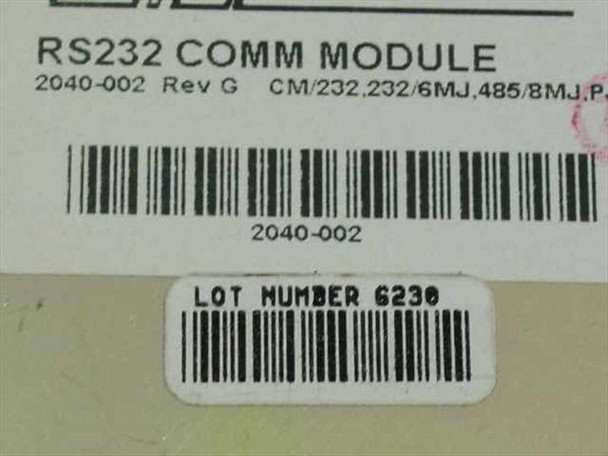

• Part Code: CM/232.232/6MJ.485/8MJ
• Interface: RS-232 and RS-485 serial communication

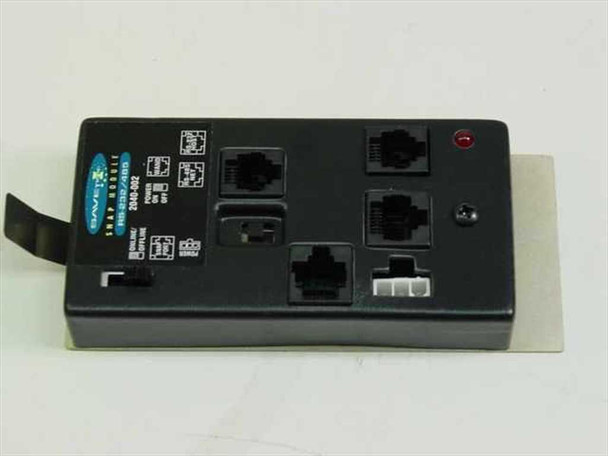

• Connectors: Multiple RJ-style modular jacks (4 visible on port face)
• Indicators: LED indicator visible on port face
• Form Factor: Snap-on accessory module for CMI time clocks
• Compatible With: CMI Control Module Inc legacy time clock systems
• Module only — no additional accessories included

Applications

Control Module Inc (CMI) has manufactured time and attendance clock systems used in commercial and industrial workplaces for employee time tracking. The 2040-002 Comm Snap Module is an add-on accessory for the CMI legacy time clock product line, enabling the clock to communicate over RS-232 or RS-485 serial connections. RS-485 in particular supports multi-drop wiring, making it well suited for environments where several time clocks need to report back to a central data collection point over a single cable run. These communication modules were commonly used in manufacturing plants, warehouses, and other facilities running CMI time and attendance systems that required centralized payroll data collection. This type of snap-on modular design was a cost-effective way for operators to add or upgrade communication options on existing CMI clock installations without replacing the base unit. Facilities maintaining legacy CMI time clock infrastructure will find this module a direct replacement part for restoring or expanding serial connectivity.
