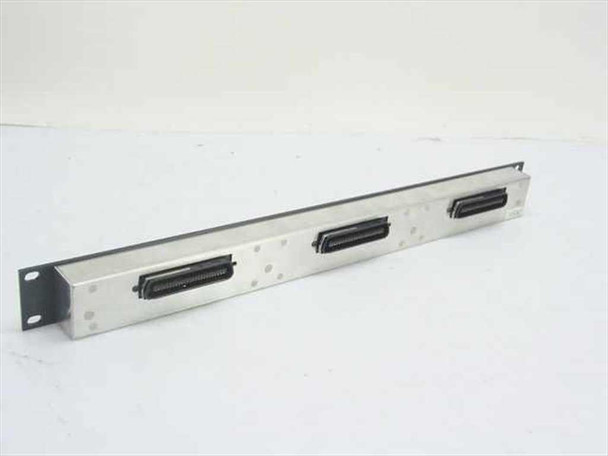

The Clear Signal Modular Patch Panel is a 24-port, 1U rackmount panel designed for organizing and managing structured cabling in a standard 19-inch equipment rack. The front face presents 24 numbered RJ45 jacks arranged in a single row across the brushed-metal chassis. The rear of the panel features three Telco 50-pin (Amphenol-style) connectors — one per group of eight ports — for quick-connect termination to 25-pair telco cabling or cross-connect blocks.

Specifications & What's Included

• Brand: Clear Signal
• Type: Modular Patch Panel
• Number of ports: 24 (numbered 1–24)
• Front connector: RJ45 (8P8C) modular jacks
• Rear connector: Three Telco 50-pin (Amphenol-style) connectors (8 ports per connector)
• Form factor: 1U, 19-inch rackmount
• Rack ears: Integrated mounting ears with rack-screw holes on both ends
• Management: Unmanaged passive panel
• Included: Panel only — no patch cables

Applications

Modular patch panels like this Clear Signal unit are standard infrastructure components in structured cabling installations — used in office telephone systems, data networks, and mixed voice/data environments to provide a central termination and cross-connect point between horizontal cabling runs and network switches or PBX equipment. The Telco 50-pin rear interface is especially common in voice wiring applications, allowing a full group of 25 pairs to be connected to a PBX, 66-block, or 110-block with a single pre-terminated cable. These panels became widely adopted in the 1990s as organizations standardized on 19-inch rack infrastructure for both voice and data distribution, and they remain in use today wherever legacy telco-style rear connectors are in the cabling plant. A 24-port, 1U panel is a practical choice for small-to-medium wiring closets where rack space is at a premium.
