Description

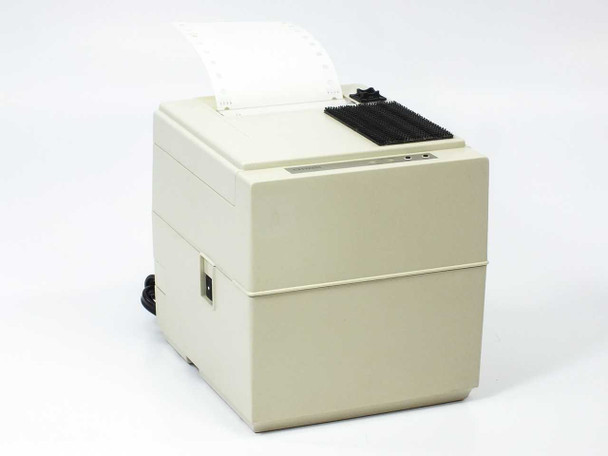

Citizen CBM iDP3530 Tractor Feed Receipt Printer 25-Pin Serial RS-232C Dot Matrix
Dot matrix receipt printer with tractor feed paper mechanism and RS-232C serial interface. Designed for point-of-sale and industrial receipt printing applications requiring continuous sprocketed paper forms.
Specifications & What's Included
- Model: iDP3530 (Secondary: 3530P40RF120)
- Print Method: Dot Matrix
- Paper Feed: Tractor feed (sprocketed continuous paper only)
- Interface: 25-pin serial DB-25 RS-232C
- Power: AC 120V, 50/60Hz, 0.5A, 30W
- Form Factor: Desktop
- Certifications: UL Listed, CSA Listed
- Includes: Printer ribbon and power cord
Applications
Tractor feed dot matrix printers were standard equipment in point-of-sale systems, restaurant POS terminals, and industrial receipt/label printing throughout the 1980s and 1990s. The RS-232C interface connects to legacy POS systems and industrial controllers. These printers are compatible with continuous-form receipt stock and multi-part carbonless forms, making them suitable for establishments requiring durability and high-volume printing.

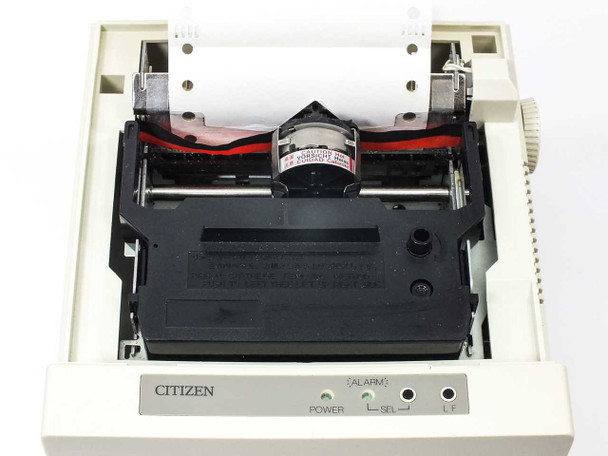

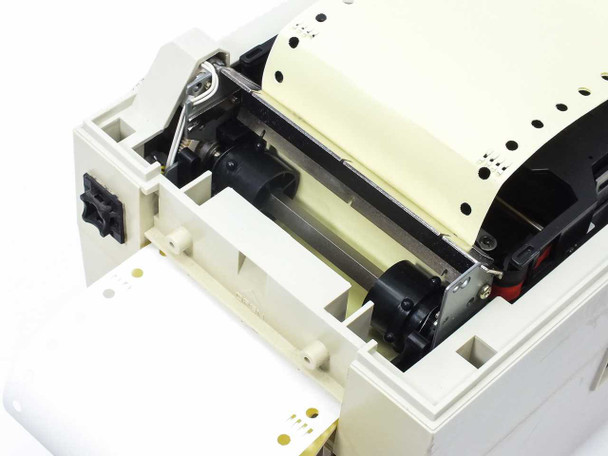

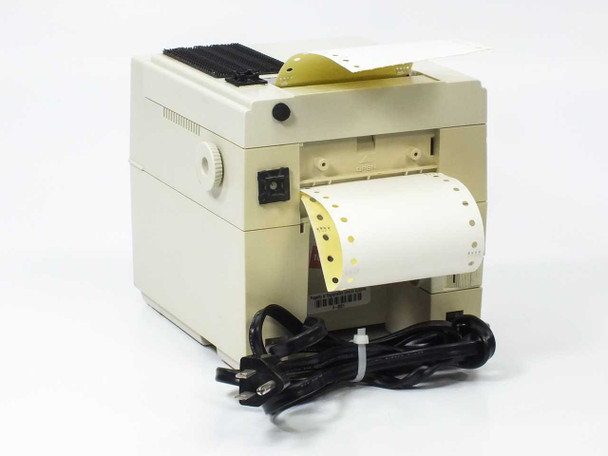

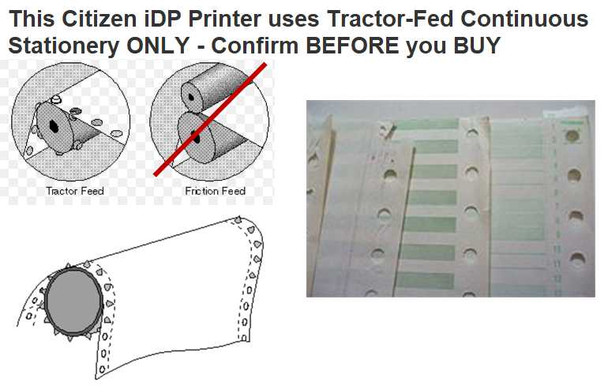

This Citizen CBM iDP3530 Tractor Feed Dot Matrix Receipt Printer has been powered on and passed its self-test, which produced a sample test print confirming the paper feed and printing functions are working. Connection to a Point-of-Sale system or computer has not been tested. The outer shell shows some yellowing typical of older cream-colored plastics of this era. The ribbon is installed and the unit includes its power cord. Note: this is a tractor feed model — it requires sprocketed continuous paper with holes along the sides. Plain roll receipt paper will not work. The end user may need to configure the DIP switches for their specific setup. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Citizen |
Model: |
iDP3530 |
MPN: |
iDP3530 |
Secondary Model: |
3530P40RF120 |
Type: |
Dot Matrix Tractor Feed Receipt Printer |
SKU: |
26487 |
Manufacturer: |
Japan CBM Corporation |
Interface: |
25-Pin Serial (RS-232C) |
Print Method: |
Dot Matrix |
Paper Feed Type: |
Tractor Feed (sprocketed continuous paper only) |
Power Requirements: |
AC 120V, 50/60Hz, 0.5A, 30W |
Connector Type: |
DB-25 (25-pin serial) |
Compatible Paper: |
Sprocketed continuous tractor feed paper only |
Form Factor: |
Desktop |
Certifications: |

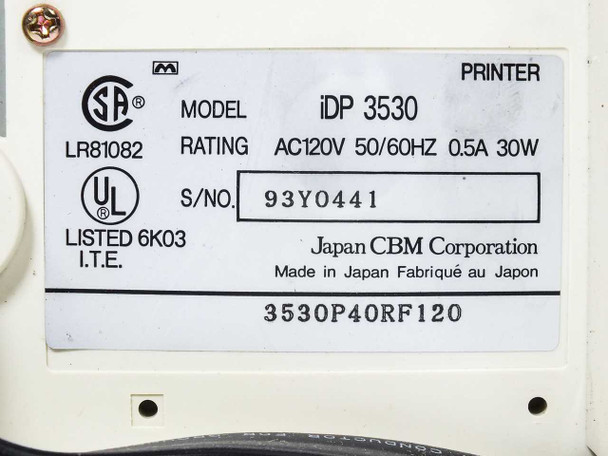

UL Listed (6K03 I.T.E.), CSA (LR81082) |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes printer ribbon and power cord. Tractor feed paper not included. |
Condition Notes: |
Citizen CBM iDP3530 tractor feed dot matrix printer passed power-on self-test; paper feed and print functions confirmed working. Serial/POS connection not tested. Shell shows yellowing. Ribbon and power cord included. |
