Cincinnati Fan HDBI-150 Centrifugal Fan 10HP 3500RPM Baldor 230/460V 3Ph 6000CFM

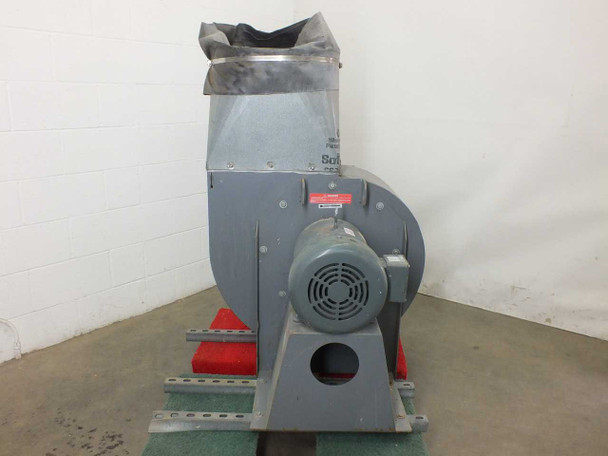

The Cincinnati Fan HDBI-150 is a heavy-duty industrial centrifugal blower driven by a direct-coupled Baldor 10HP three-phase motor running at 3500 RPM. It delivers an estimated 6,000 CFM of airflow through a 16-inch diameter inlet opening. This unit has been tested and is in working order.
Specifications & What's Included
- Manufacturer: Cincinnati Fan and Ventilator Company, Inc. — Mason, Ohio, USA
- Model: HDBI-150
- Fan type: Backward-curved centrifugal blower
- Drive type: Direct drive (motor coupled directly to impeller)
- Inlet diameter: 16 inches
- Estimated airflow: ~6,000 CFM

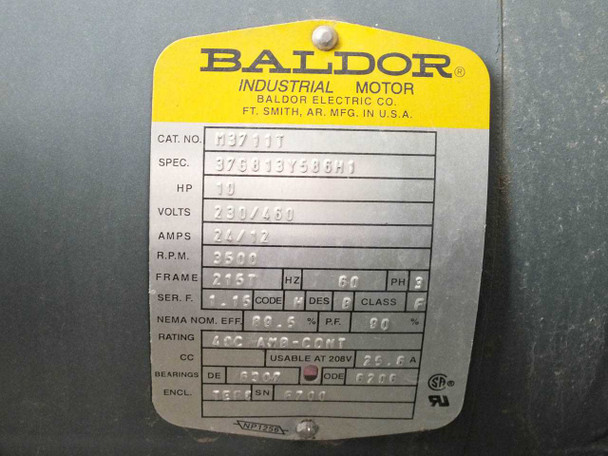

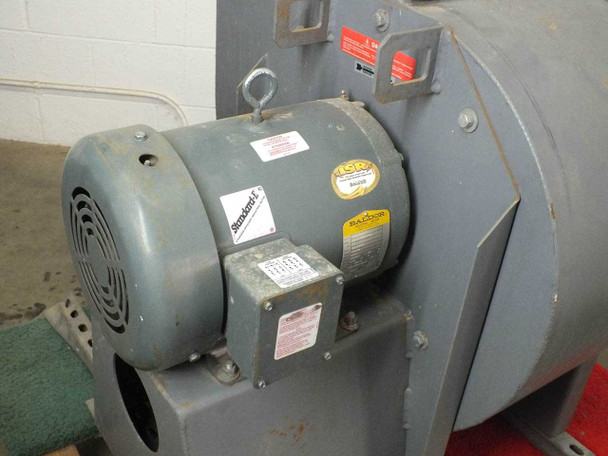

- Motor brand/model: Baldor Industrial Motor, CAT. NO. M3711T
- Motor spec: 37G813Y586H1
- Horsepower: 10 HP
- Voltage: 230/460V AC (also usable at 208V @ 24.6A)
- Amperage: 24A @ 230V / 12A @ 460V
- Phase: 3-Phase
- Frequency: 60 Hz
- Speed: 3500 RPM
- Motor frame: NEMA 215T
- NEMA nominal efficiency: 90.5%
- Power factor: 80%
- Service factor: 1.15
- Motor design: Design C
- Motor insulation class: Class F
- Duty rating: Continuous (CONT)

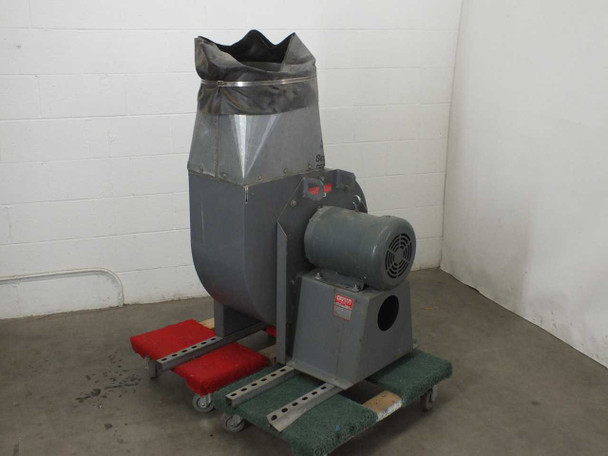

- Unit is mounted on a wheeled dolly with rubber pads (dolly may not ship with unit — contact us to confirm)
Applications
Cincinnati Fan and Ventilator Company has been manufacturing industrial centrifugal fans and blowers in the United States for decades, and the HDBI series is part of their heavy-duty backward-inclined fan line. Centrifugal fans of this type are used throughout industrial and commercial facilities for process ventilation, exhaust, dust collection supply, fume extraction, air makeup systems, and HVAC applications. The backward-curved impeller design is well suited to clean-air or lightly particulate-laden airstreams and is a common choice in manufacturing plants, warehouses, paint booths, chemical processing, and general industrial ventilation. At 10HP and approximately 6,000 CFM with a 16-inch inlet, this unit is sized for medium-to-large industrial ventilation duties. Direct-drive configurations like this one eliminate belt and sheave maintenance, making them popular in installations where uptime and reduced maintenance overhead are priorities.
This Cincinnati Fan HDBI-150 centrifugal fan with Baldor 10HP 3-phase motor has been tested and is in working order. The unit shows typical industrial wear consistent with prior service use — the impeller blades and hub show surface rust and oxidation visible through the inlet opening, and the housing and motor exteriors show general scuffing and marks from previous use. The unit is mounted on a wheeled dolly for easy movement (dolly may not ship with the unit — please contact us to confirm). Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Cincinnati Fan and Ventilator Company |
Model: |
HDBI-150 |
MPN: |
HDBI-150 |
Type: |
Centrifugal Fan / Industrial Blower |
SKU: |
52512 |
Motor Brand: |
Baldor |
Motor Model: |
M3711T |
Motor Spec: |
37G813Y586H1 |
Horsepower: |
10 HP |
Voltage: |
230/460V AC (also usable at 208V) |
Amperage: |
24A @ 230V / 12A @ 460V / 24.6A @ 208V |
Phase: |
3-Phase |
Frequency: |
60 Hz |
RPM: |
3500 RPM |
Motor Frame: |
215T (NEMA) |
Motor Efficiency (NEMA Nom.): |
90.5% |
Power Factor: |
80% |
Service Factor: |
1.15 |
Motor Design: |
Design C |
Motor Insulation Class: |
Class F |
Motor Duty: |
Continuous (CONT) |
Drive Type: |
Direct Drive |
Airflow (Estimated): |
~6,000 CFM |
Inlet Diameter: |
16 inches |
Fan Type: |
Backward-Curved Centrifugal |
Country/Region of Manufacture: |
USA (Mason, Ohio) |
Seller Notes: |
Fan unit with Baldor motor; on wheeled dolly (dolly may not ship with unit) |
Condition Notes: |
This Cincinnati Fan HDBI-150 centrifugal fan with Baldor 10HP 3-phase motor has been tested and is in working order. Shows typical industrial wear; impeller has surface rust visible through inlet. Please contact us with any questions. |
