Cherry-Burrell Tank Bracket Clamp Gas Container 7.5-8" Dia 10.25x10x2.25 Steel

Cherry-Burrell Tank Bracket Clamp Gas Container 7.5-8" Dia 10.25x10x2.25 Steel

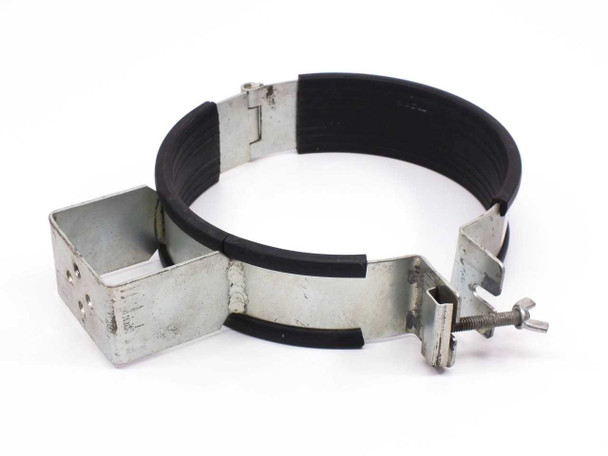

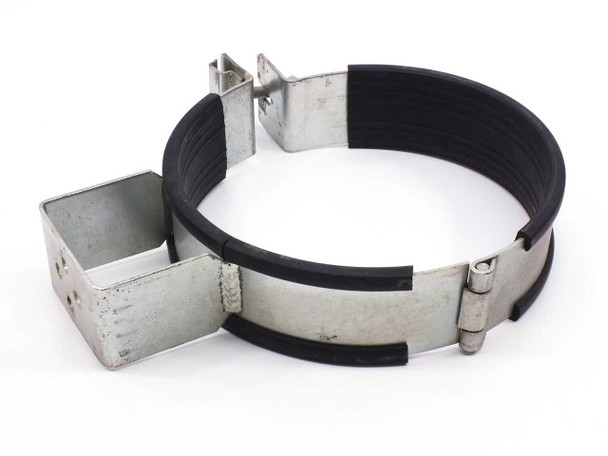

This Cherry-Burrell bracket clamp is designed to secure gas containers and similarly shaped cylindrical tanks with a rubber-lined steel band that wraps around the vessel body. The band is tightened and locked via a wing-nut bolt assembly, allowing tool-free adjustment and secure clamping within the supported diameter range.

Specifications & What's Included

• Brand: Cherry-Burrell
• Type: Tank mounting bracket clamp
• Minimum clamping diameter: 7.5 in
• Maximum clamping diameter: approximately 8 in
• Overall dimensions: 10.25 x 10 x 2.25 in
• Band: rubber-lined for grip and vessel protection
• Frame/tabs: galvanized/zinc-plated steel construction
• Closure: wing-nut tightening bolt — no tools required
• Mounting flanges: two square mounting tabs with pre-drilled holes for surface or frame attachment
• Riveted construction on mounting flange — 3 rivets visible and intact
• Bracket only — no hardware included

Applications

Cherry-Burrell is a long-established American manufacturer of equipment and hardware for food, dairy, beverage, and industrial processing environments. This style of bracket clamp is used to mount and stabilize cylindrical tanks, gas cylinders, or similar round vessels to walls, frames, or equipment structures — keeping them upright and in a fixed position during storage or operation. Clamps of this type are common in laboratory gas supply installations (CO₂, nitrogen, argon), dairy and food processing facilities, industrial compressed-gas stations, and general-purpose tank storage setups where a secure, adjustable mount is needed for standard-size cylinders. The rubber-lined band protects the vessel surface while maintaining a firm grip, and the wing-nut closure makes it straightforward to install or remove a cylinder without special tools.
