Certus Technologies 3600A Spindle Controller GPIB Interface 110VAC 3.5A

(No reviews yet) Write a Review
SKU:
22595
MPN:
90-0300
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
53.00 LBS
Shipping:
Calculated at Checkout

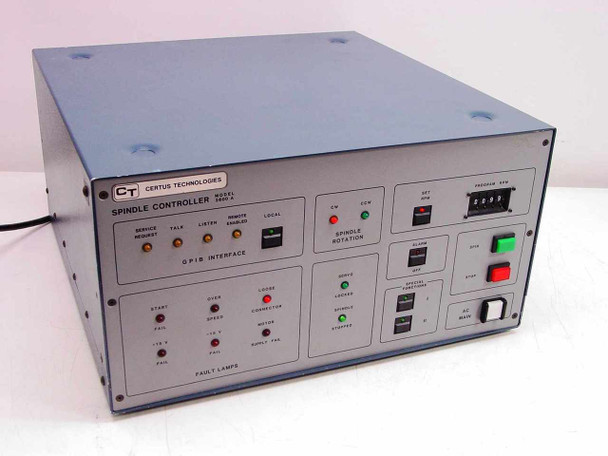

  • Certus Technologies 3600A Spindle Controller – front panel showing GPIB Interface indicators, Spindle Rotation controls, fault lamps, and control switches
  • Certus Technologies 3600A Spindle Controller – rear panel overview with handwritten GPIB address note, Certus Technologies label, and large heatsink/fan
  • Redlake Corporation rating plate showing Model No. 90-0300, Serial No. 127, Voltage 110VAC, Current 3.5 AMP, Morgan Hill CA
  • Certus Technologies 3600A Spindle Controller – rear panel close-up showing GPIB connector, Spindle D-sub, Optional Remote, BNC connectors, IEC inlet, fuse holders, and GPIB address DIP switches
  • Certus Technologies 3600A Spindle Controller – front panel side-angle view showing full panel layout including Spindle Rotation section and fault lamps
  • Certus Technologies 3600A Spindle Controller – front panel upper-left close-up showing CT logo, model 3600A label, GPIB Interface indicators: Service Request, Talk, Listen, Remote Enabled
  • Certus Technologies 3600A Spindle Controller – rear panel angle view with handwritten GPIB address note, Certus Technologies address label, and large heatsink
$249.00
Was: $450.00
Current Stock: 1

Sold Out

Description

Certus Technologies 3600A Spindle Controller GPIB Interface 110VAC 3.5A

Benchtop spindle controller with GPIB (IEEE-488) interface for remote operation and monitoring. Manages spindle motor speed, direction, and rotation via local, remote, or computer control.

Specifications & What's Included

  • Model: 3600A (MPN 90-0300) by Certus Technologies / Redlake Corporation
  • Interface: GPIB (IEEE-488) with configurable address via DIP switches
  • Power: 110VAC, 50/60Hz, 3.5A max; 1.5A / 2.0A SLO fuses
  • Control modes: Local, Remote, GPIB; CW/CCW rotation selectable
  • Front panel indicators: Service Request, Talk, Listen, Remote Enabled, CW, CCW, Spindle Rotation, Alarm, Servo, Loaded, Spindle, Stopped, Fault
  • Rear connectors: GPIB, Spindle D-sub, optional Remote, Auxiliary Power, BNC inputs (RPM, Index, Encoder, Start), IEC AC inlet

Applications

Spindle controllers like this model were used in industrial automation, precision machining systems, and test equipment setups to regulate motor speed and direction via computer interface. GPIB connectivity allowed integration into lab automation and manufacturing control systems from the 1980s–2000s. Typically paired with CNC machines, grinding systems, or research equipment requiring remote spindle management.

Condition: For Parts or Not Working
This Certus Technologies 3600A Spindle Controller (Redlake Corporation MPN 90-0300) is being sold as-is for parts or repair. It has not been tested and no functionality is guaranteed. The unit shows general wear consistent with previous use. Please review all photos carefully before purchasing, and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Certus Technologies
Model:
3600A
MPN:
90-0300
Secondary Model:
90-0300
Type:
Spindle Controller
SKU:
22595
Interface Type:
GPIB (IEEE-488)
Power Requirements:
110VAC, 50/60Hz
Current Rating:
3.5A
Voltage Rating:
110VAC
Fuse Rating 1:
1.5A SLO
Fuse Rating 2:
2.0A SLO
GPIB Address:
Configurable via rear-panel DIP switches
Front Panel Indicators:
Service Request, Talk, Listen, Remote Enabled, CW, CCW, Spindle Rotation, Alarm, Servo, Loaded, Spindle, Stopped, Fault Lamps
Rear Panel Connectors:
GPIB (IEEE-488), Spindle (D-sub), Optional Remote, Auxiliary Power, BNC (RPM, Index, Encoder, Start), IEC AC inlet
Control Modes:
Local / Remote / GPIB
Rotation Direction:
CW / CCW selectable
Form Factor:
Benchtop
Manufacturer Address:
15005 Concord Circle, Morgan Hill, CA 95037
OEM Manufacturer:
Redlake Corporation
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair. No functionality guarantee.
Country/Region of Manufacture:
United States
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
Certus Technologies 3600A Spindle Controller (Redlake 90-0300) sold as-is for parts or repair. Not tested, no functionality guaranteed. Shows general wear. Review photos before purchasing.
