Cayman 3220-H DSL Router 4-Port 10Base-T LAN Console Port w/ Power Supply

Cayman 3220-H DSL Router 4-Port 10Base-T LAN Console Port w/ Power Supply

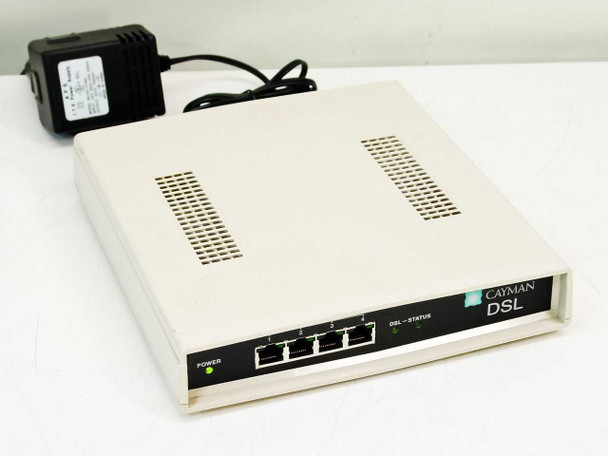

The Cayman 3220-H is a compact desktop DSL router designed for home or small office broadband sharing over a DSL WAN connection. It provides four 10Base-T Ethernet LAN ports for local network connectivity and a dedicated DSL WAN port for the upstream internet connection. A rear DB9 serial Maintenance Console port allows out-of-band management and configuration access. The unit is branded and manufactured by Cayman, based in Billerica, MA, and carries FCC compliance certification for home and office use.

Specifications & What's Included

• Brand: Cayman
• Model: 3220-H
• Type: DSL Router
• LAN Ports: 4 × 10Base-T RJ45
• WAN Interface: DSL (RJ45)
• Management: DB9 Serial Maintenance Console port (rear)
• Front Panel Indicators: Power LED, DSL-Status LED
• Form Factor: Desktop
• DC Power Input: 9V, 1.2A (barrel jack on rear)
• Included: APS ITE Power Supply, Model D9-15-950
• Power Supply Input: 120V AC, 60Hz, 25W
• Power Supply Output: 9V DC, 1500mA
• FCC: Tested to comply with FCC standards
• Manufacturer location: Billerica, MA 01821

Applications

The Cayman 3220-H belongs to a line of early consumer and small-office DSL routers that were popular in the late 1990s and early 2000s, when DSL broadband first became widely available as an alternative to dial-up internet. Devices like the 3220-H allowed multiple computers on a small LAN to share a single DSL connection — a significant capability at the time. The four-port 10Base-T LAN switch handled local traffic while the DSL WAN port connected upstream to the telephone company's DSLAM. The serial Maintenance Console port was typical of the era, providing direct CLI access for configuration when the network path was unavailable. Today these units are primarily of interest for vintage networking collectors, legacy network lab environments, retro computing enthusiasts, and anyone maintaining or studying early broadband infrastructure from that generation of equipment.
