Description
Cavium CN1120-350-NFB Nitrox XL SSL IPSec Security Accelerator PCI-X Card Rev 3.0
Hardware security accelerator card for SSL and IPSec encryption. Processes cryptographic operations offload from host systems, supporting 1,000 Mbps throughput for both SSL and IPSec protocols.
Specifications & What's Included
- Model: CN1120-350-NFB; Revision 3.0
- Bus Interface: PCI-X, 64-bit, 66 MHz; 3.3V/5V universal
- Form Factor: Half-Height PCI Card
- Protocols: SSL, IPSec, 3DES, SHA1, ARC4, MD5
- IPSec Throughput: 1,000 Mbps (3DES + SHA1)
- SSL Throughput: 1,000 Mbps (ARC4 + MD5)
- RSA Performance: 14,000 ops/sec (1024-bit)
- DH Performance: 24,000 ops/sec (1024-bit)
- Card only; no bracket or accessories included
Applications
Used in servers and security appliances requiring dedicated SSL/IPSec acceleration. Common in older firewalls, VPN gateways, and load balancers from the mid-2000s era. Typical platforms include systems supporting PCI-X slots. Reduces CPU load for cryptographic operations on systems handling encrypted traffic at scale.
Condition: Used

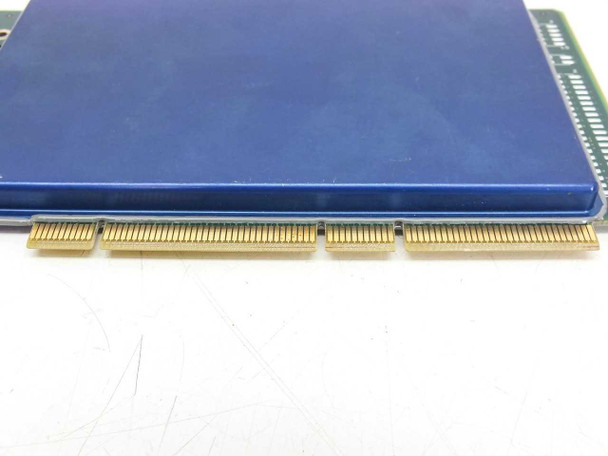

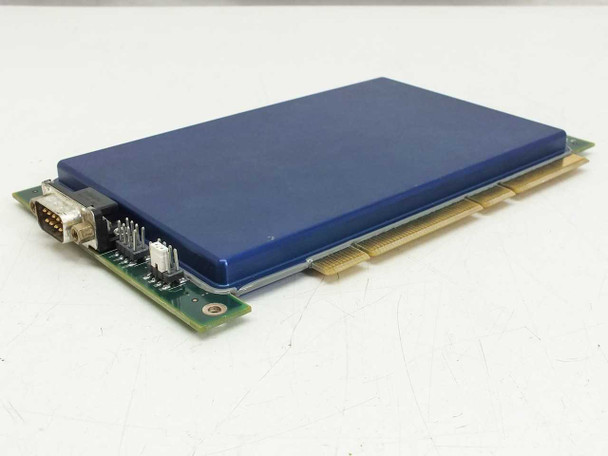

This Cavium CN1120-350-NFB Nitrox XL SSL/IPSec Security Accelerator Card has been inspected and appears to be in good condition. The blue EMI shield shows light handling marks consistent with prior use, and the DB-9 connector shows minor surface wear, but the gold PCI-X edge connector fingers are clean and free of damage. The card was pulled from a working environment. Please view our photo set and contact us if you have any questions.
This Cavium CN1120-350-NFB Nitrox XL SSL/IPSec Security Accelerator Card has been inspected and appears to be in good condition. The blue EMI shield shows light handling marks consistent with prior use, and the DB-9 connector shows minor surface wear, but the gold PCI-X edge connector fingers are clean and free of damage. The card was pulled from a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Cavium Networks |
Model: |
CN1120-350-NFB |
MPN: |
CN1120-350-NFB |
SKU: |
24336 |
Type: |
Hardware SSL/IPSec Security Accelerator Card |
Hardware Revision: |
Rev 3.0 |
Bus Interface: |
PCI / PCI-X |
Bus Width: |
64-bit |
Bus Speed: |
66 MHz |
Voltage: |
3.3V / 5V Universal |
Form Factor: |
Half-Height PCI Card |
Protocols Supported: |
SSL, IPSec, 3DES, SHA1, ARC4, MD5 |
IPSec Throughput: |
1,000 Mbps (3DES + SHA1) |
SSL Record Throughput: |
1,000 Mbps (ARC4 + MD5) |
RSA Performance: |
14,000 RSA 1024-bit ops/sec |
DH Performance: |
24,000 DH 1024-bit ops/sec |
Connector: |
DB-9 (external), header pins |
Condition: |
Used – Inspected and Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Card only. No bracket or accessories included. |
Condition Notes: |
Cavium CN1120-350-NFB Nitrox XL PCI-X security accelerator. Inspected, good condition. EMI shield shows light wear; PCI-X edge connector clean. Pulled from a working environment. |
