Catel VFMM-2000 Video FM Modulator 219-265 MHz Cable TV CATV RF

Catel VFMM-2000 Video FM Modulator 219-265 MHz Cable TV CATV RF

The Catel VFMM-2000 is a Video FM Modulator designed for cable television (CATV) headend applications. It accepts a baseband video input signal and outputs an FM-modulated RF carrier within the 219–265 MHz frequency range, allowing video content to be placed on a designated cable channel for distribution through a cable system. The unit reviewed here carries a rear-panel label indicating it is tuned to 249 MHz. It was manufactured by Catel of Mountain View, California, USA.

Specifications & What's Included

• Model: Catel VFMM-2000
• Type: Video FM Modulator
• Frequency Range: 219 to 265 MHz
• Unit Tuned Frequency (per rear label): 249 MHz
• Signal Type: FM-modulated RF video

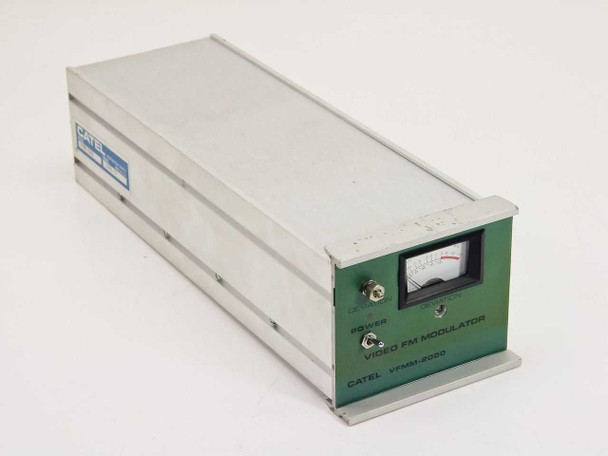

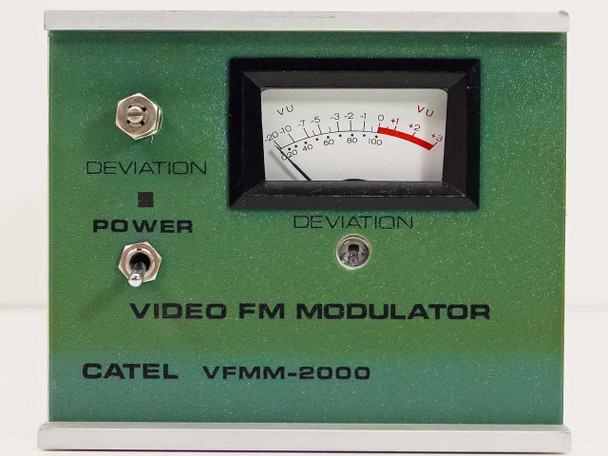

• Front Panel: Deviation control knob, Power switch, Deviation VU meter

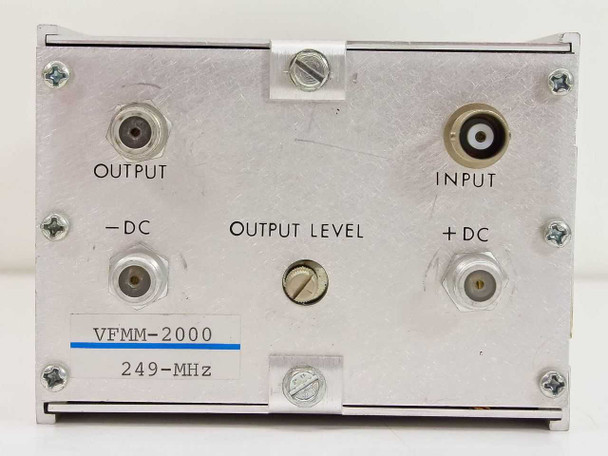

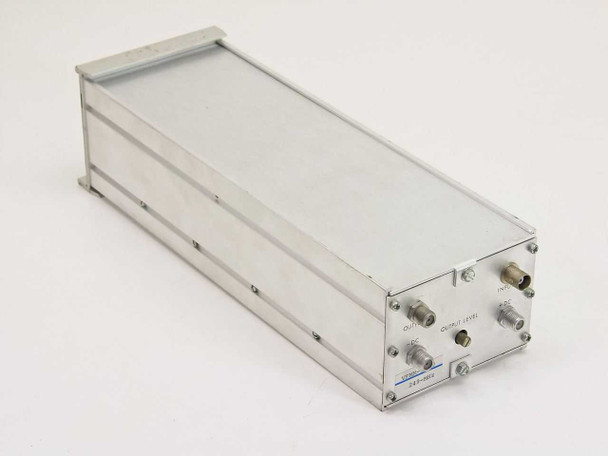

• Rear Panel: BNC Output port, BNC Input port, –DC and +DC bias connectors, Output Level trimmer adjustment
• Enclosure: Aluminum, benchtop/rack-module form factor

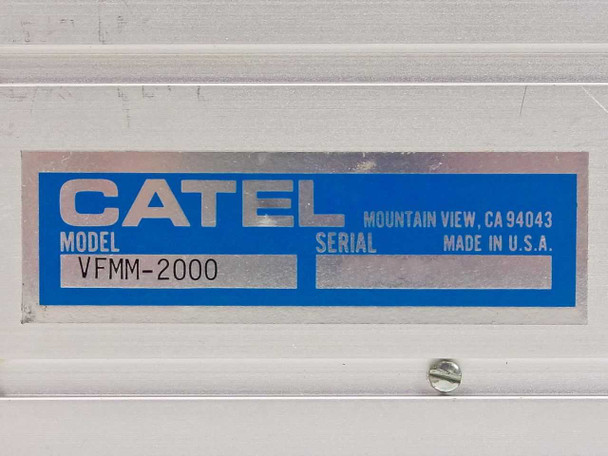

• Country of Manufacture: USA (Made in Mountain View, CA)
• Unit only — no accessories, cables, or documentation included

Applications

Video FM modulators like the VFMM-2000 are used in cable television headend facilities to place individual video sources — such as locally generated programming, security camera feeds, or satellite receivers — onto specific RF channels for distribution over a cable plant. In a typical CATV headend, each channel to be carried on the cable system has its own modulator; the modulated outputs are then combined in a broadband combiner and fed into the coaxial distribution network. The 219–265 MHz range places this unit in the mid-band/superband portion of the cable spectrum, covering channels commonly used for expanded cable channel lineups. Catel was a California-based manufacturer of cable TV headend equipment, and units like the VFMM-2000 were widely used in small-to-medium cable systems from the 1970s through the 1990s. This type of analog FM video modulator has been largely superseded in modern systems by digital QAM modulators, but these units remain relevant for maintaining legacy analog headend installations, for closed-circuit television (CCTV) distribution over coax, and for vintage cable system restoration.
