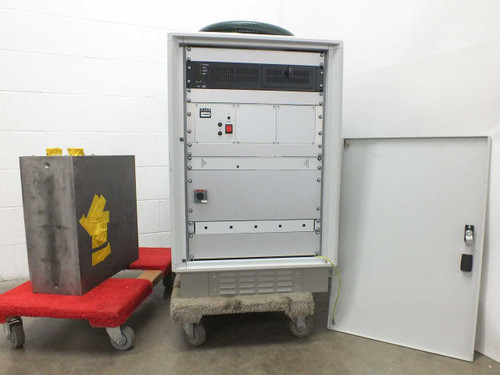

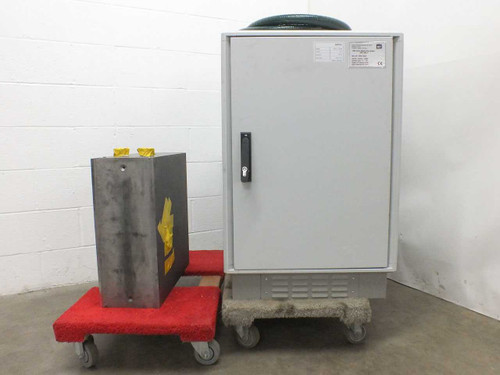

  • Amtec XRF 940V system front view — closed main cabinet on dolly with separate measuring head unit beside it Amtec XRF 940V main cabinet open showing internal rack-mounted electronics, control panel with red emergency stop button
    Add to Cart
    Quick view

    Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System 230V Water

    Amtec

    $15,000.00
    Was: $30,000.00
    Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System 230V Water Cooled X-ray fluorescence (XRF) system for inline measurement of coating thickness and elemental composition. Floor-standing cabinet with separate measuring head unit, designed...
    52196
    SKU:
    52196
    Availability:
    This item is available for local pickup or freight shipment — please contact us for a shipping quote before purchasing.
    Weight:
    510.00 LBS
    Brand:
    Amtec Analysenmesstechnik GmbH
    Model:
    XRF 940V
    MPN:
    XRF 940 V
    SKU:
    52196
    Condition:
    Used – Inspected, Not Bench-Tested
    Seller Notes:
    Includes operating manual and measuring head cable assembly
    Country of Manufacture:
    Germany
    Form Factor:
    Floor-Standing Cabinet with Separate Measuring Head Unit
    Power Requirements:
    230V AC, 1 Phase, 10A, 60Hz, 1000W
    Voltage Rating:
    230 VAC
    Current Rating:
    10 A
    Frequency:
    60 Hz
    Power Consumption:
    1000W
    Supply Fuse:
    +E01-13F2
    Enclosure Rating:
    IP 30
    Ambient Temperature Range:
    10°C to 35°C
    Measurement Type:
    X-Ray Fluorescence (XRF)
    Measurement Application:
    Coating thickness and composition analysis
    Measurement Range:
    Coating thickness from nm to µm
    Elemental Range:
    Na/Mg through U (periodic system)
    Reproducibility:
    1% (measurement duration dependent)
    Minimum Measurement Period:
    3 seconds
    Max Object Temperature:
    Up to 500°C
    Detector Type:
    Silicon Drift Chamber (high energy resolution)
    X-Ray Source:
    Compact water-cooled X-ray source
    Cooling Method:
    Water Cooled
    Installation Type:
    Inline / In-Situ production integration
    Compatible With 1:
    Solar cell production: CIS, CIGS, CdTe
    Compatible With 2:
    Fuel cell, corrosion protection, barrier layers
    Compatible With 3:
    Magnetic layers, contact layers, alloy layers
    Main Unit Dimensions:
    32" x 24" x 35.5" H
    Measuring Head Unit Dimensions:
    19.75" x 19.75" x 10"
    Date of Manufacture:
    03/2012
    CE Certified:
    Yes
    Condition Notes:
    Amtec XRF 940V XRF Coating Measuring System. Inspected, good physical condition. Not powered or tested at our facility. Includes operating manual and measuring head cable. Freight only — contact for quote.
    $15,000.00
    Was: $30,000.00
