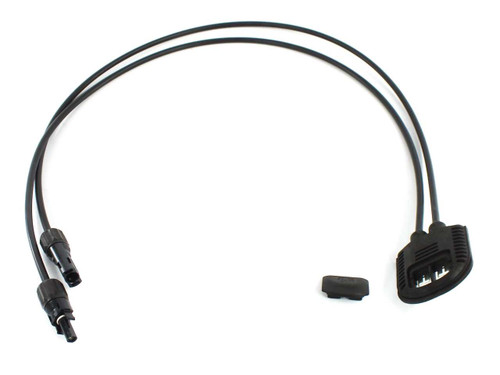

Amphenol Helios H4 HBTGBNANCNAA Thin Film PV Junction Box 14AWG MC4 36" Cable
Amphenol
$13.20Was: $35.00Amphenol Helios H4 HBTGBNANCNAA Thin Film PV Junction Box 14AWG MC4 36" Cable PV junction box for thin-film and rigid glass solar panel installations. Connects solar panel outputs to system wiring using MC4 connectors with a 36-inch 14AWG cable pair...52301- SKU:
- 52301
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Amphenol
- Model:
- Helios H4
- MPN:
- HBTGBNANCNAA
- Type:
- Thin-Film PV Junction Box with MC4 Connectors
- SKU:
- 52301
- Condition:
- New
- Seller Notes:
- New original Amphenol Helios H4 J-box with 36" 14AWG MC4-compatible cable pair
- Country/Region of Manufacture:
- China
- Compatible With:
- Thin-film flexible solar panels, rigid glass solar panels
- Compatible Connector:
- MC4 (MC4-compatible)
- Cable Gauge:
- 14 AWG (2.5mm²)
- Cable Length:
- 1000mm (39.37" / approx. 36")
- Connector Style:
- Male and Female pair
- Rated Voltage:
- 1500V DC (TÜV), 1000V DC (UL)
- Rated Current:
- Up to 20A
- Protection Rating:
- IP67
- Termination Type:
- Soldering (solder contacts)
- Sealing Type:
- Potting
- Flame Class:
- UL94 5V
- Diode Quantity:
- None (1 contact / no diode — HBTGBNANCNAA config)
- Wire Rating:
- E467101-B (UL) 14AWG PV Wire, 105°C Dry, 90°C
- Product Line:
- Amphenol Helios JB — Thin Film PV Junction Box
- Application:
- Solar panel photovoltaic (PV) systems
- Form Factor:
- Low-profile over-molded junction box
- Condition Notes:
- New, unused Amphenol Helios H4 HBTGBNANCNAA PV junction box. Genuine Amphenol stock. Includes J-box body, MC4-compatible male/female connectors, dust cap, and 36" 14AWG PV cable leads.
$13.20Was: $35.00 -
Copeland ZR19M3-TWD-561 Scroll Compressor 460V 3-Phase 15HP R-22 AC
Copeland
$875.00Was: $3,600.00Copeland ZR19M3-TWD-561 Scroll Compressor 460V 3-Phase 15HP R-22 AC Copeland scroll compressor designed for air conditioning and refrigeration systems. This unit operates at 460V 3-phase 60Hz (380/420V 50Hz compatible) with 15 HP motor output and R-22...52300- SKU:
- 52300
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 225.00 LBS
- Brand:
- Copeland
- Model:
- ZR19M3-TWD-561
- MPN:
- ZR19M3-TWD-561
- SKU:
- 52300
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair. Not tested, no functionality guarantee.
- Form Factor:
- Vertical Canister / Free-Standing
- Compressor Type:
- Scroll
- Refrigerant Type:
- R-22
- Voltage Rating:
- 460V @ 60Hz; 380/420V @ 50Hz
- Phase:
- 3-Phase
- Power Rating:
- 15 HP
- Capacity Range:
- 157,000 – 222,000 BTU/hr
- Cooling Efficiency (EER):
- Up to 11.5
- Application:
- Air Conditioning / Refrigeration
- Compatible With:
- Split systems, rooftop units, chiller applications
- Motor Protector:
- INT69 DC Motor Protector (Kriwan), Part No. 071-0087-01
- Country of Manufacture:
- United States
- Overall Dimensions:
- 13" x 14" x 24" H
- Condition Notes:
- This Copeland ZR19M3-TWD-561 Scroll Compressor is being sold AS-IS for parts or repair. It has not been tested and no functionality is guaranteed. Suction port shows visible oxidation.
$875.00Was: $3,600.00 -

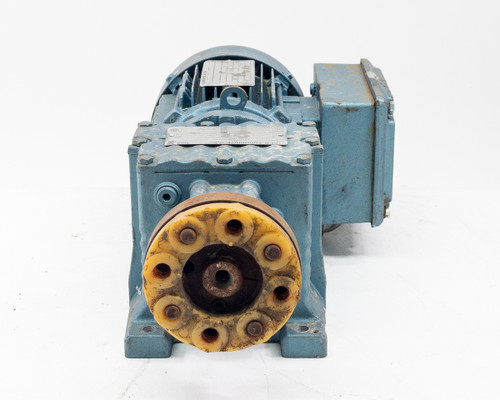

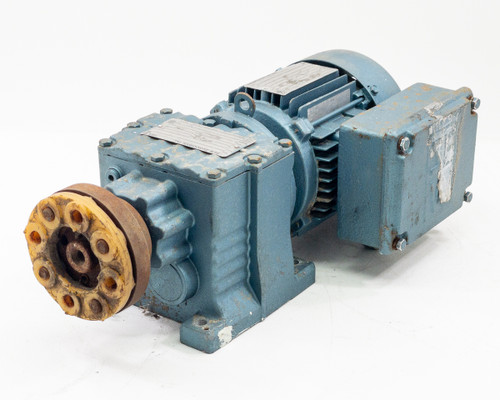

SEW-EURODRIVE R27DT71D4TH Helical Gear Motor 1/3HP 230/460V 3-Ph 35RPM 890lb-in
SEW-EURODRIVE
$500.00Was: $1,000.00SEW-EURODRIVE R27DT71D4TH Helical Gear Motor 1/3HP 230/460V 3-Ph 35RPM 890lb-in The SEW-EURODRIVE R27DT71D4TH is a compact inline helical gear motor combining an R27 helical gearbox with a DT71D4TH three-phase AC motor. The R-series gearbox uses helical...52297- SKU:
- 52297
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 42.00 LBS
- Brand:
- SEW-EURODRIVE
- Model:
- R27DT71D4TH
- MPN:
- R27DT71D4TH
- Type:
- Helical Gear Motor
- SKU:
- 52297
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair; untested
- Country/Region of Manufacture:
- USA
- Voltage Rating:
- 230/460V AC
- Phase:
- Three Phase
- Frequency:
- 60 Hz
- Power Rating:
- 1/3 HP
- Output Speed (RPM):
- 35 RPM
- Input Speed (RPM):
- 1700 RPM
- Gear Reduction Ratio:
- 48.17:1
- Output Torque:
- 890 lb-in
- Current Rating:
- 2.00/1.00 A
- Motor Frame:
- DT71D
- Gear Unit Series:
- R-Series (R27)
- Mounting Position:
- Foot Mount
- Certifications:
- CSA, CE
- Service Factor:
- 1.0
- Form Factor:
- Inline Helical Gear Motor
- Output Configuration:
- Hollow Shaft / Flange Mount
- Lubrication:
- Mobil Oil (factory fill)
- Condition Notes:
- Used, tested & working. SEW-EURODRIVE R27DT71D4TH 1/3HP helical gear motor. Paint chips, surface rust on flange & housing, industrial grime. Junction box shows rust. Structurally sound & fully operational.
$500.00Was: $1,000.00 -
Montalvo 350 Load Cell Transducer Type FN Load 50 LBS with 13.5" Long Roller
Montalvo
$355.00Was: $1,200.00Montalvo 350 Load Cell Transducer Type FN Load 50 LBS with 13.5" Long Roller BLACK Roller Dimension 13.5" Long x 3.5" Diameter Overall Dimensions: 16" x 5" x 5" -- 22 LBS Condition: UsedThis used load cell has been inspected and it appears to be...52295- SKU:
- 52295
- Weight:
- 27.00 LBS
$355.00Was: $1,200.00 -
Cisco Systems WS-C2924-XL-EN Catalyst 2900 XL Series 24-Port Ethernet Switch
Cisco Systems
$15.30Was: $60.00Cisco Systems WS-C2924-XL-EN Catalyst 2900 XL Series 24-Port Ethernet Switch 24 fixed autosensing 10/100 ports Includes Power Cord From the manufacturer: The 2900 XL series switches are workgroup Ethernet switches that supply autosensing 10BaseT or...52294- SKU:
- 52294
- Weight:
- 12.00 LBS
$15.30Was: $60.00 -
Paradise P300 Datacom Earth Station Data Link Satellite Modem - Rackmountable
Paradise
$195.00Was: $1,000.00Paradise P300 Datacom Earth Station Data Link Satellite Modem - Rackmountable Condition: UsedThis used satcom equipment has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use and...52292- SKU:
- 52292
- Weight:
- 12.00 LBS
$195.00Was: $1,000.00 -
Paradise P500 Datacom 1-FOR-8 Redundancy Controller with P520 P550 P551
Paradise
$1,313.00Was: $5,000.00Paradise P500 Datacom 1-FOR-8 Redundancy Controller with Modules: P520 P550 P551 Inside: P520 Data Switching Module P550 Backup Interface Module P551 Traffic Interface Modules (x8) From the manufacturer: The P500 1-FOR-8 redundancy system can operate...52291- SKU:
- 52291
- Weight:
- 70.00 LBS
$1,313.00Was: $5,000.00 -

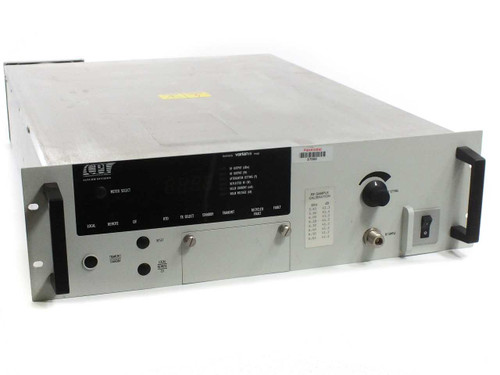

CPI VZC-6964A4 400W C-Band TWTA Satellite Amplifier 5.85-6.65 GHz For Parts
CPI
$1,200.00Was: $2,400.00CPI VZC-6964A4 400W C-Band TWTA Satellite Amplifier 5.85-6.65 GHz For Parts Traveling wave tube amplifier (TWTA) designed for C-band satellite uplink applications. Operates across 5.85–6.65 GHz with 400W output power, supporting wideband single- and...52287- SKU:
- 52287
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 67.00 LBS
- Brand:
- CPI (Communications & Power Industries)
- Model:
- VZC-6964A4
- Secondary Model:
- VZC-6964
- MPN:
- 01018590-02
- SKU:
- 52287
- Type:
- Traveling Wave Tube Amplifier (TWTA)
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. Fans spin on power-up.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rackmount, 3U
- Frequency Band:
- C-Band
- Frequency Range:
- 5.850 – 6.650 GHz
- Output Power:
- 400 W
- Application:
- Satellite Uplink / Earth Station
- Signal Type:
- Wideband, Single- and Multi-Carrier
- TWT Type:
- Dual-Depressed Collector Helix TWT
- Interface:
- Local/Remote Control, CIF

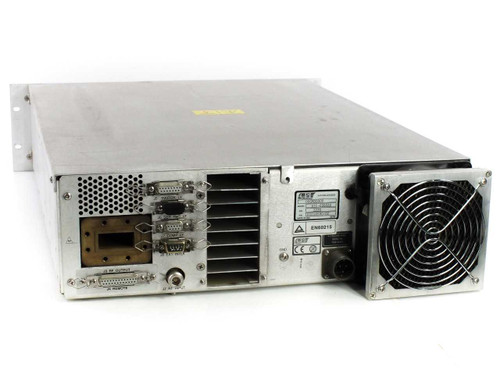

- Rear Connectors:
- D-Sub (2x), DB-25, BNC (RF), Multi-pin
- Standards Compliance:
- EN60215
- Division:
- CPI Satcom Division (formerly Varian)
- Compatible With:
- Fixed and transportable earth stations
- Control:
- Microprocessor-controlled with computer interface
- Condition Notes:
- CPI VZC-6964A4 400W C-Band TWTA sold as-is for parts or repair. Came from an earth station, reported non-working. Fans spin on power-up. Not bench-tested by us. No functionality guaranteed.
$1,200.00Was: $2,400.00
