  • Power Man HP-230-ATX 230W ATX power supply – rear panel view showing IEC AC inlet, rocker on/off switch, and top-mounted external cooling fan Power Man HP-230-ATX 230W ATX power supply – three-quarter top view showing IN230ATX REV:02 label, top fan, and full output cable harness
    Add to Cart
    Quick view

    Power Man HP-230-ATX 230W ATX Desktop Power Supply 115V/230V w/ External Fan

    Power Man

    $40.00
    Was: $80.00
    Power Man HP-230-ATX 230W ATX Desktop Power Supply 115V/230V w/ External Fan This is a 230W ATX desktop power supply manufactured by Power Man. It converts AC input (115V or 230V) to regulated DC outputs for ATX-compatible computers and is equipped with...
    14079
    SKU:
    14079
    Availability:
    Usually ships within 1–2 business days.
    Weight:
    5.00 LBS
    Brand:
    Power Man
    Model:
    HP-230-ATX
    MPN:
    HP-230-ATX
    SKU:
    14079
    Condition:
    Used – Inspected and Tested
    Seller Notes:
    Includes attached output harness with Molex and floppy connectors
    Form Factor:
    ATX Desktop
    Power Output:
    230W Max
    AC Input Voltage:
    115V~/6A or 230V~/3.5A, 60/50Hz
    DC Output +5V:
    +5V / 25A
    DC Output +12V:
    +12V / 7A
    DC Output -5V:
    -5V / 0.3A
    DC Output -12V:
    -12V / 0.3A
    Max Output Power:
    230W; 3.3V rail 12A max
    Fuse Rating:
    T6.3AH/250VAC; +5SB 0.1A
    Cooling:
    External top-mounted 80mm fan
    Rear Power Switch:
    Yes – rocker on/off switch
    Connector Type:
    ATX 20-pin main, Molex 4-pin, floppy
    Board Revision:
    REV:02 (IN230ATX label visible)
    Certifications:
    CE, CB, CSA (LR99969 Level 3), UL (E143709)
    Country of Manufacture:
    Thailand
    Compatible With:
    ATX desktop computers and PC builds requiring ATX PSU
    Condition Notes:
    This Power Man HP-230-ATX 230W ATX Desktop Power Supply has been powered and tested at our facility and is confirmed to be in good working order. The unit is cosmetically consistent with normal use — the metal chassis shows light surface wear
    $40.00
    Was: $80.00
    Add to Cart Quick view

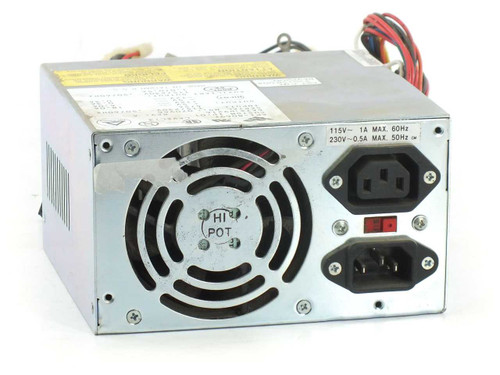

  • AST API-8069F 230128-004 power supply front panel showing dual IEC AC input connectors, fan grille, and voltage selector switch AST 230128-004 power supply rear and side view showing full cable harness with Molex peripheral connectors and power switch assembly
    Add to Cart
    Quick view

    AST 230128-004 Bravo 4/33 Power Supply API-8069F Dual 115-230V 50/60Hz AT

    AST

    $60.00
    Was: $125.00
    AST 230128-004 Bravo 4/33 Power Supply API-8069F Dual 115-230V 50/60Hz AT AT form factor power supply designed for AST Bravo 4/33 desktop computers. Provides regulated output voltages and auxiliary power for legacy computer systems. Specifications &...
    14086
    SKU:
    14086
    Availability:
    Usually ships within 1-2 business days.
    Weight:
    5.00 LBS
    Brand:
    AST
    Model:
    API-8069F
    Secondary Model:
    230128-004
    MPN:
    230128-004
    SKU:
    14086
    Condition:
    Used – Inspected and Tested
    Seller Notes:
    Includes full internal cable harness and power switch assembly
    Form Factor:
    AT Desktop
    Compatible With:
    AST Bravo 4/33
    Country of Manufacture:
    Taiwan
    Power Requirements:
    115/230V AC, 50/60Hz, 4A/2A input
    Voltage Rating:
    115V / 230V AC (dual voltage)
    Output Voltages:
    +5V 18A, +12V 4A, -5V 0.3A, -12V 0.3A
    Auxiliary Output:
    115/230V 50/60Hz, 1.0A / 0.5A
    Revision:
    Rev A
    Custom ID:
    01
    Power Supply Type:
    AT Form Factor
    Connector Type:
    Molex 4-pin peripheral, AT motherboard connector
    Condition Notes:
    This AST 230128-004 API-8069F Desktop AT Power Supply for the AST Bravo 4/33 has been tested at our facility and is in good working order. The unit includes the complete internal cable harness — Molex peripheral connectors, the power switch
    $60.00
    Was: $125.00
