Catalyst Systems SMTC1310/1550-1x8 SC/APC Fiber Optic Coupler 1U Rackmount

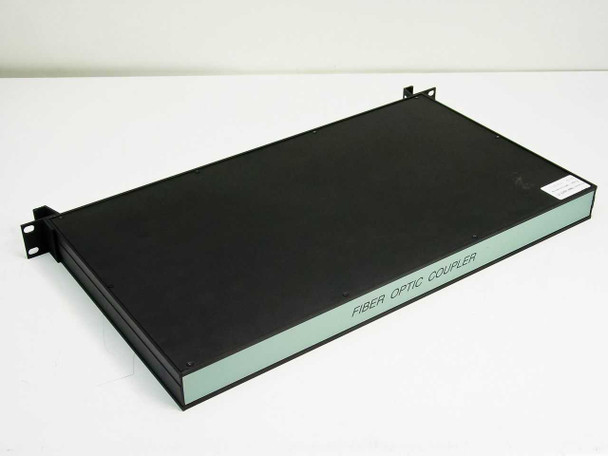

This is a Catalyst Systems SMTC1310/1550-1x8 passive fiber optic coupler chassis — a 1x8 single-mode splitter/coupler module designed to split or combine optical signals at 1310nm and 1550nm wavelengths. The unit is housed in a 1U rackmount enclosure with rack ears installed, and the front panel is populated with 8 SC/APC fiber optic adapter ports.
Specifications & What's Included
- Manufacturer: Catalyst Systems
- Model / Type: SMTC1310/1550-1*8 — Chassis Coupler (SC/APC)
- Unit label: CS2004974
- Split configuration: 1x8 (one input, eight outputs)
- Supported wavelengths: 1310nm and 1550nm
- Fiber type: Single-mode (SM)
- Connector type: SC/APC (angled physical contact) — green adapters
- Number of ports: 8 SC/APC coupler ports on front panel (numbered; visible in photos)
- Form factor: 1U rackmount chassis with standard 19-inch rack ears
- Passive device — no power required
Applications
Fiber optic couplers (also called splitters or passive optical splitters) are used in fiber-to-the-premises (FTTP/FTTH), CATV fiber distribution, test lab setups, and telecom central office environments to distribute an optical signal from a single source across multiple output fibers. A 1x8 coupler splits one input signal into eight equal output paths, making it a building block in passive optical networks (PON). The SC/APC connector type — identified by its green housing and angled ferrule — is standard in high-return-loss applications such as CATV, DWDM, and FTTH deployments, where back-reflection must be minimized. Rack-chassis coupler modules like this one allow high-density fiber distribution within a standard 19-inch equipment rack, commonly used in data centers, telecom central offices, and campus fiber infrastructure.
Catalyst Systems SMTC1310/1550-1x8 SC/APC Fiber Optic Coupler 1U Rackmount in used condition. The chassis and SC/APC coupler ports are intact with green SC/APC adapters present and undamaged. Light surface wear visible on the rack chassis consistent with normal use. Unit has not been tested for optical performance; we recommend verification before relying on it in a production environment. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Catalyst |
Model: |
SMTC1310/1550-1x8 |
MPN: |
SMTC1310/1550-1*8 |
Type: |
Fiber Optic Coupler / Splitter Chassis |
SKU: |
37086 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is; includes 1U rack chassis with 8 SC/APC coupler ports installed |
Form Factor: |
1U Rackmount |
Connector Type: |
SC/APC |
Number of Ports: |
8 |
Wavelength: |
1310nm / 1550nm |
Split Ratio: |
1x8 |
Fiber Type: |
Single-Mode (SM) |
Product Type Label: |
Chassis Coupler (SC/APC) |
Compatible With: |
Standard 19-inch telecom / network racks |
Country/Region of Manufacture: |
China |
Condition Notes: |
Catalyst Systems SMTC1310/1550-1x8 SC/APC Coupler 1U Rackmount, used. Chassis and ports intact, light wear. Not tested for optical performance. |
