Cashco 8903 Stainless Steel Pressure Reducing Regulator 150 PSIG 300F Ryton EPDM
The Cashco 8903 is a stainless steel pressure reducing regulator designed for industrial process applications where precise downstream pressure control is required. This unit features a flanged base body, cross-bar handle assembly with a lever-actuated clamp mechanism, and is built for corrosion-resistant service in demanding fluid and gas systems.
Specifications & What's Included
- Brand: Cashco
- Model: 8903

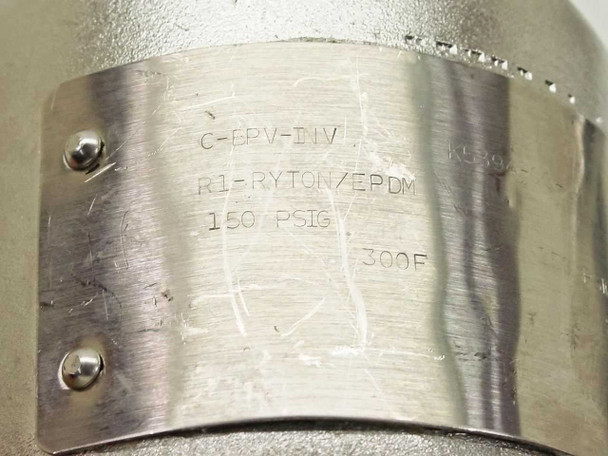

- Configuration: C-6PV-INV
- Trim Code: CFBM
- Seat / Seal Material: Ryton / EPDM (R1)
- Body Material: Stainless Steel
- Maximum Pressure Rating: 150 PSIG
- Maximum Temperature Rating: 300°F
- Mounting: Flanged base
- Handle: Cross-bar handle assembly with lever clamp mechanism
- Regulator only — no additional accessories included
Applications
Cashco pressure reducing regulators are used in industrial process piping systems to maintain a stable, reduced downstream pressure from a higher-pressure supply source. The 8903 series, with its stainless steel construction and Ryton/EPDM seat and seal materials, is suited for use with corrosive or high-purity process fluids and gases in chemical processing, pharmaceutical manufacturing, semiconductor fabrication, food and beverage production, and similar industries where material compatibility and reliable pressure control are critical. The Ryton (polyphenylene sulfide) seat material offers strong resistance to a broad range of chemical media, making this configuration a common choice for aggressive or sanitary process environments. Pressure reducing regulators of this type reduce an inlet supply pressure down to a lower, controlled set-point pressure on the outlet side, protecting downstream equipment and maintaining consistent process conditions.
This Cashco 8903 stainless steel pressure reducing regulator has been inspected and is in good used condition. The stainless body, flange base, and cross-bar handle assembly are all intact with no cracks or significant damage observed. The unit shows light surface marks and minor casting wear consistent with normal use and storage, but is structurally sound and complete. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Cashco |
Model: |
8903 |
MPN: |
8903 |
Type: |
Pressure Reducing Regulator |
SKU: |
40982 |
Configuration Code: |
C-6PV-INV |
Trim / Seat Code: |
CFBM |
Seat / Seal Material: |
Ryton / EPDM (R1) |
Body Material: |
Stainless Steel |
Maximum Pressure Rating: |
150 PSIG |
Maximum Temperature Rating: |
300°F |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Regulator only, no additional accessories included. |
Country/Region of Manufacture: |
United States |
Application: |
Industrial Process, Chemical, Sanitary, Fluid Control |
End Connection Type: |
Flanged Base |
Condition Notes: |
Cashco 8903 stainless steel pressure reducing regulator. Inspected and in good used condition. Body, flange, and handle assembly intact. Light surface marks consistent with normal use. No cracks or damage observed. |
