Carrier FB4ANF060 60000 BTU 4-Ton Central AC Air Handler Condenser R-22 AS-IS

(No reviews yet) Write a Review
SKU:
43421
MPN:
FB4ANF060
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
500.00 LBS
Shipping:
Calculated at Checkout

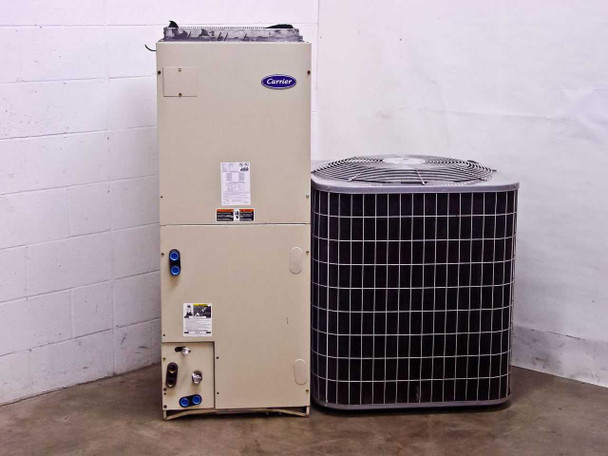

  • Carrier FB4ANF060 air handler and outdoor condenser unit shown together — front view with Carrier branding visible on air handler

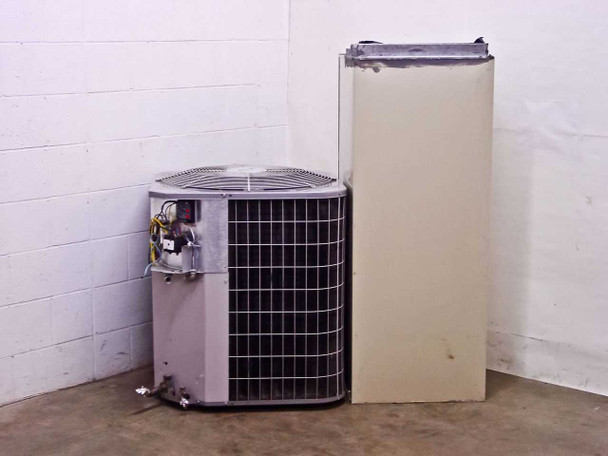

  • Carrier FB4ANF060 outdoor condenser and air handler — rear/side view showing condenser fan guard and back panel of air handler

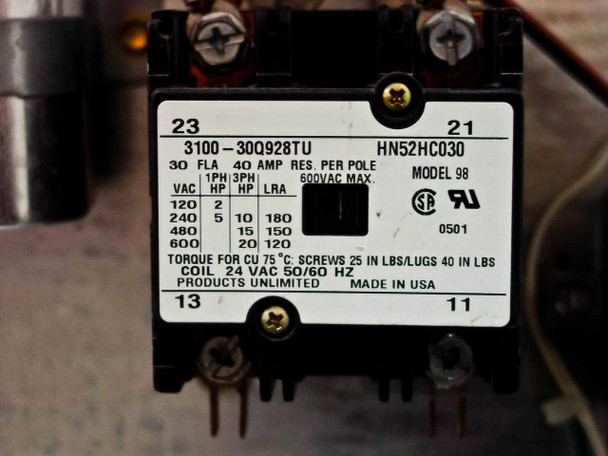

  • Close-up of Products Unlimited contactor HN52HC030 — 30 FLA, 40 AMP, 24 VAC coil, 600 VAC max, model 98
  • Carrier FB4ANF060 rating plate showing product number FB4ANF060000AEAA, 208/230V, 3/4 HP motor, 5.4A FLA, R-22 refrigerant, 300 PSIG, and approved accessories list
  • Refrigerant line port grommet on air handler panel — dual blue-capped fittings, close-up view
  • Lower corner of air handler showing refrigerant line connections — one capped copper fitting, one capped port with foil wrap, and dual blue-cap drain/line grommet; surface shows scuffing and scoring

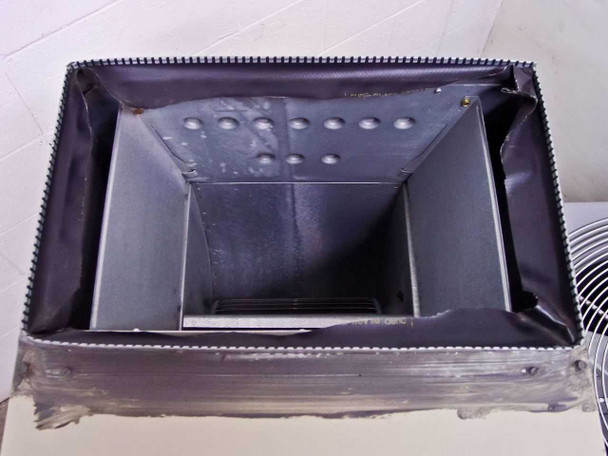

  • Interior top view of air handler — sheet metal plenum with insulation liner, drain pan, and evaporator coil housing visible from above
  • Refrigerant line stubs at base of air handler — copper lines with foil-wrapped cut ends and corroded brass fittings resting on concrete floor

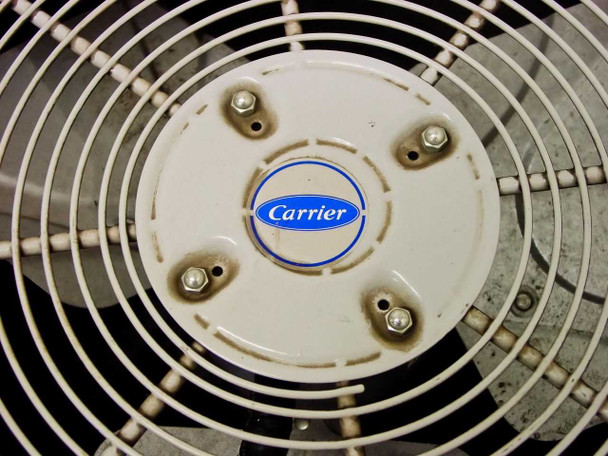

  • Close-up of Carrier logo on outdoor condenser fan motor hub — Carrier brand badge centered on fan blade assembly

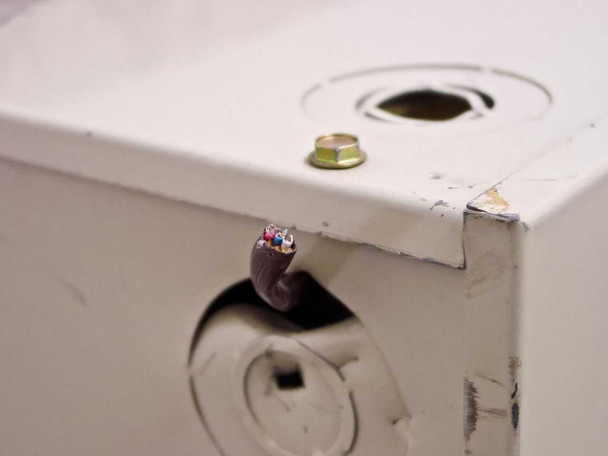

  • Top corner of air handler showing cut multi-conductor wiring stub emerging from knockout hole; paint chipping visible on cabinet corner

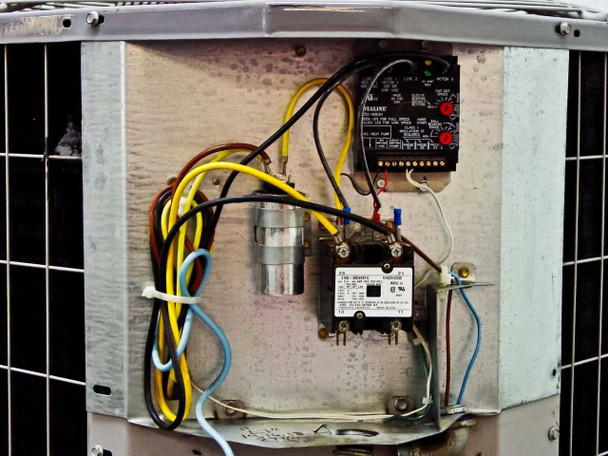

  • Outdoor condenser electrical compartment — Totaline P251-0083H fan speed/motor protection board, run capacitor, and contactor with multi-color wiring harness visible

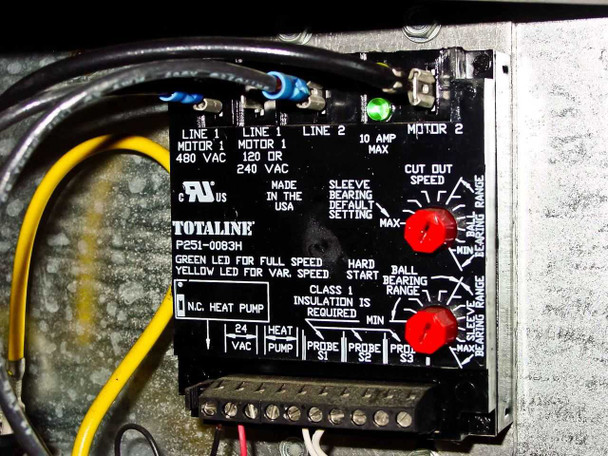

  • Close-up of Totaline P251-0083H motor protection and variable speed control module — label showing wiring diagram, bearing range settings, and heat pump configuration
$456.00
Was: $2,500.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Carrier FB4ANF060 60000 BTU 4-Ton Central AC Air Handler Condenser R-22 AS-IS

This listing includes a complete Carrier FB4ANF060 central air conditioning split system — the upright indoor air handler and the outdoor condenser unit — sold together as a matched set. The FB4ANF060 is a 60,000 BTU (5-ton nominal) fan coil air handler rated for use with a 4-ton condensing unit, designed for 208/230V single-phase residential and light commercial installations using R-22 refrigerant. This system was deinstalled over 10 years ago and has been in storage since. It is sold strictly AS-IS for parts or repair with no functionality guarantee.

Specifications & What's Included

  • Product Number: FB4ANF060000AEAA
  • Model: FB4ANF060
  • Cooling Capacity: 60,000 BTU
  • System Type: Split system — upright indoor air handler + outdoor condenser
  • Voltage: 208 / 230V AC
  • Phase / Frequency: Single-phase / 60 Hz
  • Motor: 3/4 HP fan motor
  • Motor Full Load Amps (FLA): 5.4 A
  • Refrigerant: R-22 (Refrigerant 22)
  • Design PSIG: 300
  • Test Static: 0.67 IN. W.C.
  • Air Handler Dimensions: 21" W x 20" D x 56" H
  • Outdoor Condenser Dimensions: 30" W x 30" D x 36" H
  • Contactor: Products Unlimited HN52HC030 (30 FLA / 40 AMP, 24 VAC coil, 600 VAC max)
  • Fan Speed/Motor Control Board: Totaline P251-0083H (variable speed, heat pump compatible)
  • UL Listed Fan Coil Unit — RADCO Certification/Listing No. 1175
  • Refrigerant lines are cut and foil-wrapped; electrical wiring is cut at the cabinet knockouts
  • Estimated R-22 recharge needed: approximately 10 lbs (charge status unverified)
  • Freight shipping required — cannot ship via standard parcel carrier

Applications

Carrier's FB4ANF series fan coil air handlers are designed for central forced-air cooling systems in residential and light commercial buildings. Paired with a compatible outdoor condensing unit, they form a complete split-system central air conditioner that conditions interior air by passing it across the evaporator coil and distributing cooled air through existing ductwork. The FB4ANF060 was a common choice for larger homes, small offices, and commercial suites requiring 4- to 5-ton cooling capacity. R-22 (Freon) was the standard residential refrigerant used in systems manufactured through the late 1990s and into the 2000s; it was phased out of new equipment production under EPA regulations, making R-22 systems like this one dependent on existing recovered refrigerant stock for recharging. This unit is well suited for a buyer who needs matched Carrier split-system components for restoration, parts harvesting, or a project where R-22 equipment is already in use on-site.

Condition: For Parts or Not Working
This Carrier FB4ANF060 60,000 BTU central AC split system is being sold AS-IS for parts or repair. It was deinstalled from service over 10 years ago and has been in storage since — it has not been powered or tested at our facility. The previous owner reported it was working at the time of removal, but we cannot verify that claim given the time elapsed. The system likely needs approximately 10 lbs of R-22 refrigerant (which is no longer in production and must be sourced from existing stock), though the charge status has not been confirmed. Photos show the refrigerant line stubs are cut and foil-wrapped, the electrical wiring is cut at the cabinet, and the lower air handler panel shows surface scuffing and scoring. The outdoor condenser, Totaline fan control board, and contactor are all present. Freight shipping is required for this item — it cannot ship via standard parcel carriers. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Specifications:
Carrier FB4ANF060 Specifications
Brand:
Carrier
Model:
FB4ANF060
MPN:
FB4ANF060000AEAA
Secondary Model:
HN52HC030
SKU:
43421
Type:
Central AC Split System (Air Handler + Condenser)
Cooling Capacity:
60,000 BTU (5 Tons nominal / 4-Ton condenser)
Voltage:
208 / 230 Volts
Phase / Hertz:
1-Phase / 60 Hz
Motor HP:
3/4 HP
Motor FLA:
5.4 A
Refrigerant Type:
R-22
Design PSIG:
300
Test Static:
0.67 IN. W.C.
Condenser Dimensions:
30" W x 30" D x 36" H
Air Handler Dimensions:
21" W x 20" D x 56" H
Contactor:
Products Unlimited HN52HC030, 30 FLA / 40 AMP, 24 VAC coil
Fan Control Board:
Totaline P251-0083H motor protection/speed control module
Seller Notes:
Includes both air handler and outdoor condenser unit. Freight shipping required.
Country/Region of Manufacture:
United States
Form Factor:
Split System (Upright Air Handler + Outdoor Condenser)
Compatible With 1:
KFAEH0201N05, KFAEH0301N08, KFAEH0401F15
Compatible With 2:
KFAEH1401C08, KFAEH1601C15, KFAEH1801S15
Compatible With 3:
KFAEH2001S24, KFAEH0701309, KFAEH0901318
Compatible With 4:
KFAEH1101F30, KFAEH2801C15, KFAEH1601F15
UL Listed:
Yes — UL Listed Fan Coil Unit (RADCO Listing No. 1175)
Condition Notes:
Carrier FB4ANF060 60,000 BTU 4-ton central AC split system sold AS-IS for parts or repair. Deinstalled 10+ years ago, untested. May need ~10 lbs R-22 (unverified). Refrigerant lines and wiring are cut. Freight shipping required.
