Carling TIGAS1-6S-RD-NBL-XWG1 Red Rocker Switch 10A 250VAC 15A 125VAC 2-Pin

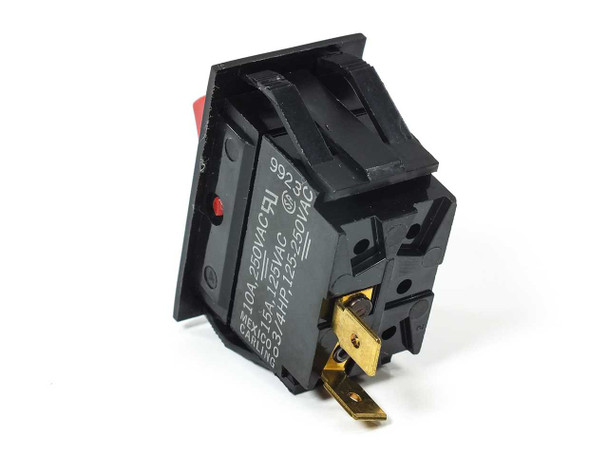

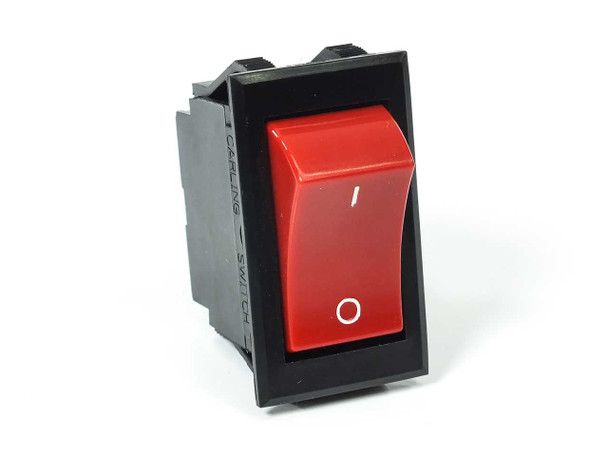

The Carling TIGAS1-6S-RD-NBL-XWG1 is a non-illuminated red rocker switch in a 2-pin On-Off configuration, manufactured by Carling Technologies. It features a bold red rocker actuator with I/O markings on a black body housing and is rated for both 125VAC and 250VAC circuits. The switch mounts in a standard panel cutout and terminates via gold-plated blade/tab terminals on the rear.
Specifications & What's Included
- Model: TIGAS1 / Full Part Number: TIGAS1-6S-RD-NBL-XWG1
- Switch Function: On-Off (SPST)
- Rocker Color: Red
- Illuminated: No (non-illuminated)
- Number of Pins/Terminals: 2 (blade/tab terminals)
- Current/Voltage Rating: 10A @ 250VAC
- Current/Voltage Rating: 15A @ 125VAC
- Motor Load Rating: 3/4 HP, 125–250VAC
- Faceplate Dimensions: 1-11/16 x 15/16 inches
- Rocker Body Dimensions: 1-7/16 x 3/4 inches
- Rocker Switch (actuator) Dimensions: 1-1/4 x 5/8 inches
- Mounting Style: Panel mount
- Certifications: UL Listed, CSA (visible on rating plate)
- Country of Manufacture: Mexico
- Includes: Switch unit only
Applications
Carling Technologies rocker switches are a standard component in industrial equipment panels, power tools, appliances, medical devices, test instruments, and a wide range of OEM machinery where a reliable On-Off panel switch is required. The TIGAS series is a common choice for equipment manufacturers needing a compact, snap-in panel-mount switch rated for both 125VAC and 250VAC circuits. The 2-pin configuration makes wiring straightforward for simple single-pole On-Off control. The red color is frequently used to indicate power or stop functions, making these switches easy to identify on busy equipment panels. Carling Technologies has long been a widely specified supplier of rocker and toggle switches across industrial, commercial, and consumer equipment sectors.
This Carling TIGAS1-6S-RD-NBL-XWG1 Red Rocker Switch is new and unused, sourced directly from the manufacturer. The switch is in open-box condition — it has not been installed or used but original retail packaging may be absent or opened. The switch itself shows no wear and is in new condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Carling Technologies |
Model: |
TIGAS1 |
MPN: |
TIGAS1-6S-RD-NBL-XWG1 |
Type: |
Rocker Switch |
SKU: |
29365 |
Switch Function: |
On-Off (SPST) |
Color: |
Red |
Illuminated: |
No |
Number of Pins: |
2 |
Voltage Rating (AC): |
10A @ 250VAC / 15A @ 125VAC |
Current Rating: |
10A @ 250VAC; 15A @ 125VAC |
Power Rating: |
3/4 HP, 125-250VAC |
Faceplate Dimensions: |
1-11/16 x 15/16 in |
Rocker Body Dimensions: |
1-7/16 x 3/4 in |
Rocker Switch Dimensions: |
1-1/4 x 5/8 in |
Mounting Style: |
Panel Mount |
Connector Type: |
Blade / Tab Terminal |
Country/Region of Manufacture: |
Mexico |
Certifications: |
UL Listed, CSA |
Seller Notes: |
New open-box unit. Switch only, no additional accessories. |
Condition Notes: |
Carling TIGAS1-6S-RD-NBL-XWG1 Red Rocker Switch. New open-box — unused and uninstalled, sourced from the manufacturer. Original packaging may be absent. Switch is in new condition with no wear. |
