Description
Canare DVJ-W 24-Port 75 Ohm Dual Video Patchbay 19" Rack Mount BNC Lot/24
This listing is for a lot of 24 Canare DVJ-W 75-ohm dual video patchbays in 19" rackmount frames. The DVJ-W is a professional broadcast-grade dual video jackfield — each unit provides 24 dual BNC video jacks (48 BNC connections total) wired at 75 ohms for proper video impedance matching. Normalling buttons on the front panel allow signals to be passed through or interrupted for routing flexibility without needing to patch a cable.
Specifications & What's Included
- Manufacturer: Canare
- Model: DVJ-W
- Configuration: 24-port dual video jackfield
- Impedance: 75 ohms
- Connector type: BNC (front and rear)

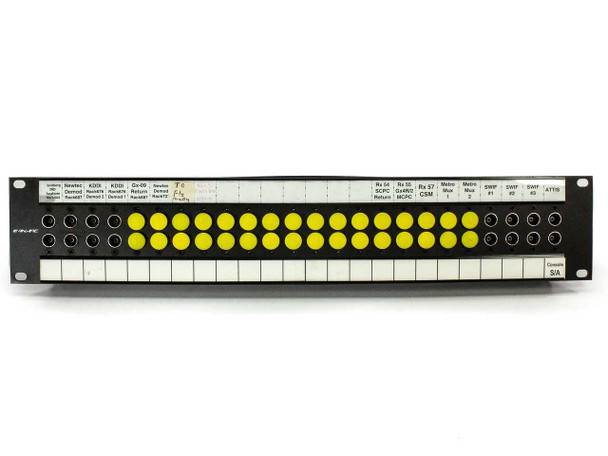

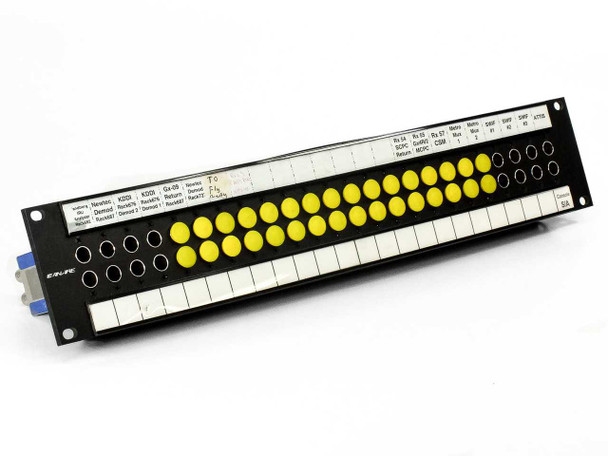

- Front panel: Yellow normalling buttons, label strips with handwritten port assignments
- Form factor: 19" rack mount (approximately 2U per unit)
- Signal compatibility: Composite video, analog video, SDI
- Quantity: Lot of 24 units
- Cables not included
Applications
The Canare DVJ-W is a staple of professional broadcast and post-production facilities, used to route and patch video signals between cameras, VTRs, routing switchers, monitors, and other video equipment. Operating at 75 ohms, it maintains proper termination for analog composite and serial digital (SDI) video signals, preventing reflections and signal degradation. Patchbays like this are central to broadcast control rooms, master control suites, mobile production units, and post-production edit bays where flexible signal routing between many sources and destinations is required. A lot of 24 units is well suited for outfitting a full broadcast rack room or for facilities integrators building out a large installation. Canare is a Japanese manufacturer with a long reputation in broadcast and professional audio/video cabling and connectivity.

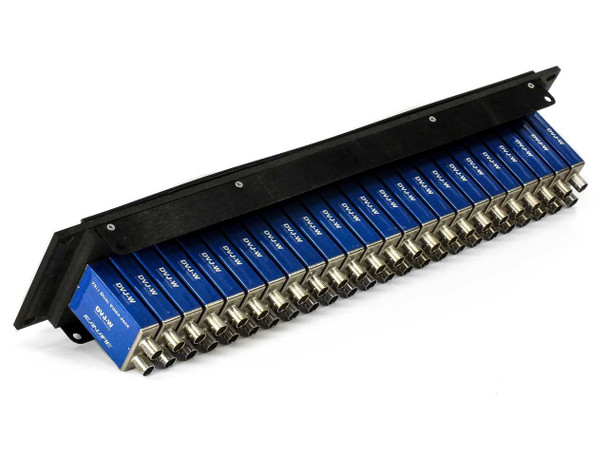

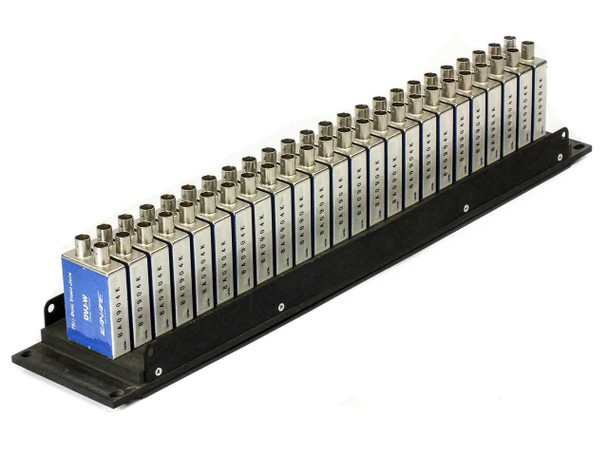

This lot of 24 Canare DVJ-W 75-ohm dual video patchbays has been inspected and appears to be in good used condition. The units have not been powered up or tested at our facility, but they came from a working broadcast environment where they were previously in service. The front panels show typical rack wear including scuffing and some handwritten port labeling on the label strips, as visible in the photos. BNC connectors on the rear appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Canare |
Model: |
DVJ-W |
MPN: |
DVJ-W |
Type: |
Dual Video Patchbay / Video Jackfield |
SKU: |
50289 |
Number of Ports: |
24 (dual — 48 BNC jacks total per unit) |
Impedance: |
75 Ohm |
Connector Type: |
BNC |
Form Factor: |
19" Rack Mount |
Rack Units: |
2U (approximate) |
Signal Type: |
Video (composite, SDI, analog) |
Quantity: |
24 Units (lot) |
Seller Notes: |
Lot of 24 Canare DVJ-W patchbay units. No cables included. |
Country/Region of Manufacture: |
Japan |
Compatible With: |
Broadcast video routing, SDI, composite, analog video systems |
Condition Notes: |
Lot of 24 Canare DVJ-W 75-ohm dual video patchbays. Inspected, good used condition. Not tested at our facility but pulled from a working broadcast environment. Front panels show typical rack wear; BNC connectors appear intact. |
