Cabletron 9C206-1 Smartswitch 9000 MMAC Plus 9C106 Chassis Power Supply Zytec
The Cabletron Systems 9C206-1 is a slide-in chassis power supply designed for the Smartswitch 9000 / MMAC Plus 9C106 modular chassis. Manufactured by Zytec (P/N 61006300, Rev U14) under OEM contract for Cabletron Systems, it provides multiple regulated DC output rails to power the switching modules and backplane of the 9C106 chassis. The front panel features Power and Redundancy status LEDs and an analog load percentage meter for at-a-glance monitoring.
Specifications & What's Included
- Cabletron Model: 9C206-1

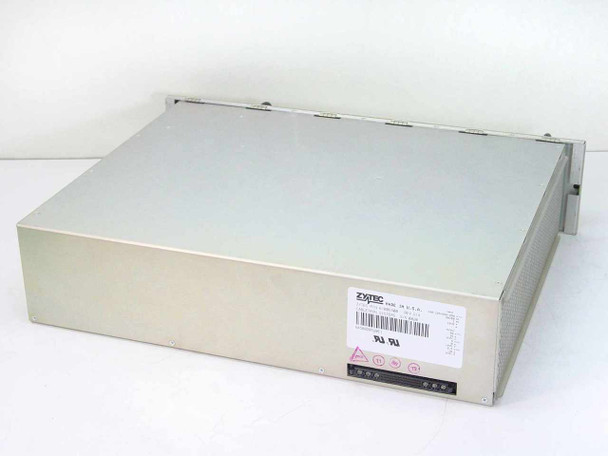

- OEM Manufacturer: Zytec — Part Number 61006300, Rev U14
- Compatible Chassis: Cabletron Smartswitch 9000 / MMAC Plus 9C106
- Input Voltage: 100–125V AC or 200–250V AC (auto-ranging)
- Input Current: 12.0A @ 100–120V / 6.0A @ 200–240V
- Input Frequency: 50/60 Hz
- Phase: Single Phase
- Output — Level 1: 56V DC at 16A
- Output — Level 3: 5V DC at 3A
- Output — Level 3: 3.3V DC at 16A
- AC Inlet: IEC C14 on rear panel
- Power Switch: Rocker on/off on rear panel
- Backplane Connector: Multi-pin edge connector for chassis backplane

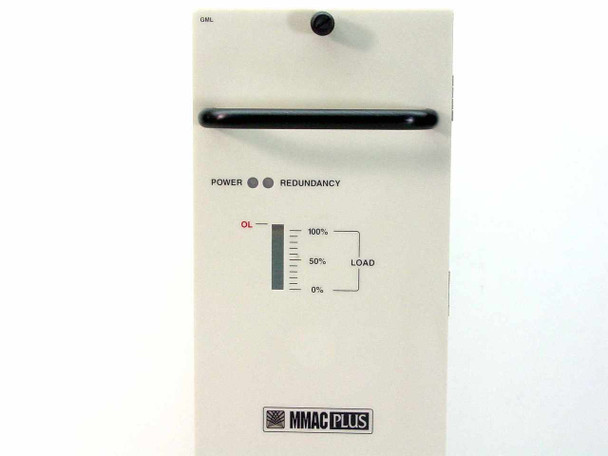

- Front Panel: Power LED, Redundancy LED, analog load meter (0–100% + OL)
- Country of Manufacture: United States (Zytec, Made in U.S.A.)
- Form Factor: Rack-mount chassis slide-in module
- Included: Power supply unit only — no AC power cord or accessories
Applications
The Cabletron Smartswitch 9000 (also marketed as the MMAC Plus) was Cabletron Systems' flagship modular enterprise chassis switch of the mid-to-late 1990s. It was widely deployed in large campus networks and enterprise data centers as a high-density, hot-swappable switching platform supporting Ethernet, Fast Ethernet, Token Ring, FDDI, and ATM modules in a single chassis. The 9C206-1 power supply slots into the 9C106 chassis and provides the regulated multi-rail DC power that the switching and routing modules require. The front-panel redundancy LED supports configurations where a second power supply operates in parallel for fault tolerance — a common design in mission-critical installations. These chassis power supplies remain in demand for organizations still running legacy Cabletron infrastructure or sourcing spares for aging campus equipment rooms.
This Cabletron 9C206-1 Smartswitch 9000 chassis power supply has been inspected and is in good used condition. The unit shows typical light wear consistent with prior rack deployment. The front panel, indicators, and rear IEC inlet all appear intact with no visible damage. Please review our photos for a full look at the cosmetic condition, and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Cabletron |
Model: |
9C206-1 |
MPN: |
9C206-1 |
Secondary Model: |
Zytec 61006300 |
Type: |
Chassis Power Supply |
SKU: |
11157 |
Compatible With: |
Cabletron Smartswitch 9000 9C106 Chassis |
Compatible With 2: |
Cabletron MMAC Plus |
OEM Manufacturer: |
Zytec |
OEM Part Number: |
61006300 |
Hardware Revision: |
Rev U14 |
Input Voltage: |
100-125V / 200-250V AC |
Input Current: |
12A @ 100-125V; 6A @ 200-240V |
Input Frequency: |
50/60 Hz |
Phase: |
Single Phase |
Output Voltage 1: |
56V DC, 16A (Level 1) |
Output Voltage 2: |
5V DC, 3A (Level 3) |
Output Voltage 3: |
3.3V DC, 16A (Level 3) |
Form Factor: |
Rack Mount / Chassis Slide-In |
Connector Type: |
IEC C14 AC inlet; multi-pin backplane connector |
Front Panel Indicators: |
Power LED, Redundancy LED, Load meter |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Power supply only — no power cord or additional accessories included. |
Condition Notes: |
This Cabletron 9C206-1 Smartswitch 9000 power supply has been inspected and is in good used condition. Shows light wear typical of prior rack use. No visible damage. Please contact us with any questions. |
