Cabletron IRBM 9000224-11 Fiber Ethernet Console Module Rev B Card
This is a fiber optic Ethernet console module card designed for Cabletron MMAC modular chassis systems. The module provides fiber optic network connectivity and console management access via dedicated ports on the faceplate.
Specifications & What's Included
- Brand: Cabletron | Model: IRBM 9000224-11 Rev B
- Interface: Fiber Optic Ethernet with TX/RX (SMA/ST style connectors)
- Console Port: DB-9 connector on faceplate
- Form Factor: Modular card for chassis slot installation
- LED Indicators: ONLNK, STDBY, INCV, XMIT, CLN, PDK, RNK, PWR, RCV, CLK
- Module only—no chassis included
Applications
This module was used in Cabletron's modular switching and routing systems for remote console management and fiber-based network connections. It provided out-of-band management capabilities for network administrators working with distributed chassis architectures. The fiber interface allowed extended distance connectivity in enterprise and telecom networking environments where copper-based connections were not suitable.

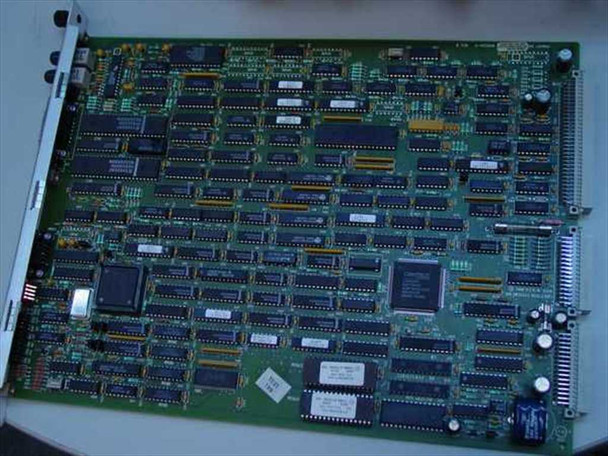

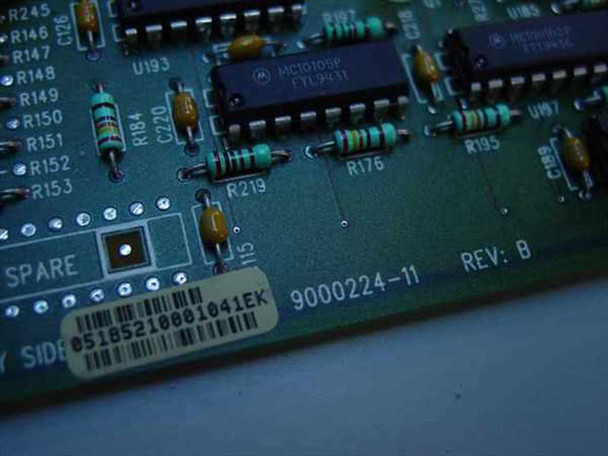

This Cabletron IRBM 9000224-11 Fiber Ethernet Console Module has been inspected and is in good condition. The PCB is clean and fully populated with no visible damage, cracked traces, or missing components. The faceplate shows minor handling wear consistent with prior rack use. The fiber TX/RX ports and DB-9 console connector appear intact. LED indicators are present. Hardware revision is Rev B as printed on the PCB. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Cabletron |
Model: |
IRBM |
MPN: |
9000224-11 |
Secondary Model: |
9000224-11 Rev B |
Type: |
Fiber Ethernet Console Module Card |
SKU: |
15176 |
Interface Type: |
Fiber Optic Ethernet |
Connector Type: |
Fiber TX/RX (SMA/ST style), DB-9 Console |
Form Factor: |
Card/Module (Chassis Slot) |
Hardware Revision: |
Rev B |
LED Indicators: |
ONLNK, STDBY, INCV, XMIT, CLN, PDK, RNK, PWR, RCV, XMIT, CLK, PDK |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Module only, no chassis. Rev B PCB. Fiber TX/RX and DB-9 console port on faceplate. |
Country/Region of Manufacture: |
United States |
Compatible With: |
Cabletron MMAC modular chassis systems |
Network Type: |
Ethernet |
Media Type: |
Fiber Optic |
Condition Notes: |
Cabletron IRBM 9000224-11 Fiber Ethernet Console Module, Rev B. Inspected and in good condition. PCB clean, no visible damage. Faceplate shows minor handling wear. Fiber and DB-9 ports intact. |
