Busch

Busch SV 1016 B 000 1HXX Dry Rotary Vane Vacuum Pump 150 mbar 3-Phase

(No reviews yet) Write a Review
SKU:
48360
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
54.00 LBS
Shipping:
Calculated at Checkout
  • Busch SV 1016 B 000 1HXX dry rotary vane vacuum pump — three-quarter front view showing motor junction box and Busch logo on pump head
  • Busch SV 1016 B 000 1HXX dry rotary vane vacuum pump — rear three-quarter view showing exhaust/outlet mesh grille and top of housing

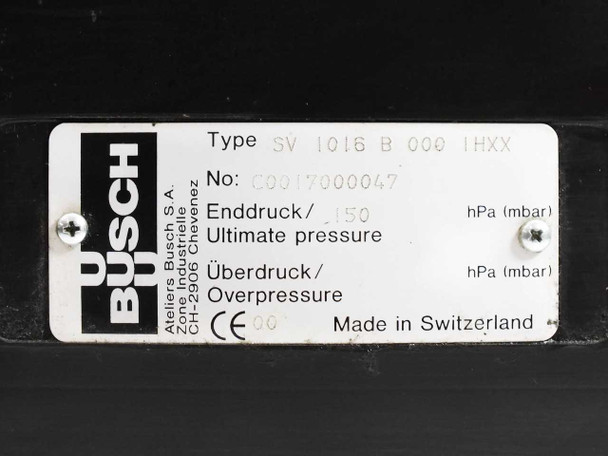

  • Busch SV 1016 B 000 1HXX vacuum pump nameplate — Type SV 1016 B 000 1HXX, ultimate pressure 150 hPa (mbar), Made in Switzerland
  • Busch SV 1016 B 000 1HXX vacuum pump — left side view showing motor nameplate label and type plate on pump body

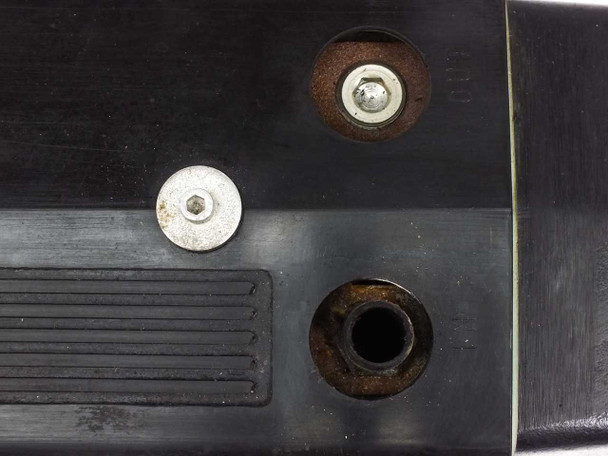

  • Busch SV 1016 B 000 1HXX vacuum pump — top port detail showing inlet port with surface rust around fitting and hardware
  • ATB AF80/4C-11 motor nameplate on Busch SV 1016 B 000 1HXX — showing 3-phase ratings: 346-420/200-242V 1.9/3.3A 1400 RPM 50Hz, 346-480/200-277V 1.7/2.95A 1740 RPM 60Hz, 0.55 kW, IP54
  • Busch SV 1016 B 000 1HXX vacuum pump — direct front view of pump head showing inlet port, Busch logo plate, and mounting base
$475.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Busch SV 1016 B 000 1HXX Dry Rotary Vane Vacuum Pump 150 mbar 3-Phase

The Busch SV 1016 B 000 1HXX is a dry rotary vane vacuum pump that runs without oil, using self-lubricating carbon vanes and sealed-for-life ball bearings. It achieves an ultimate pressure of 150 hPa (mbar) and is driven by an ATB three-phase motor rated at 0.55 kW. Because it uses no process oil, it produces a clean, dry exhaust and generates no oil mist or oil waste. The unit is manufactured in Switzerland by Ateliers Busch S.A.

Specifications & What's Included

  • Model: SV 1016 B 000 1HXX
  • Type: Dry rotary vane vacuum pump (oil-free)
  • Ultimate pressure: 150 hPa (mbar)
  • Vane material: Carbon, dry-running, self-lubricating
  • Bearings: Sealed-for-life ball bearings
  • Motor: ATB AF80/4C-11 (P/N 7918097 X 038)
  • Power: 0.55 kW
  • Phase: Three-phase (3~)
  • Insulation class: F
  • Enclosure rating: IP54
  • 50 Hz rating: 346–420 / 200–242 VAC, 1.90 / 3.30 A, 1400 RPM
  • 60 Hz rating: 346–480 / 200–277 VAC, 1.70 / 2.95 A, 1740 RPM
  • Inlet port outer diameter: 0.75 in
  • Dimensions (approx.): 16 × 8.5 × 8.5 in
  • Country of manufacture: Switzerland
  • Includes: Pump unit only

Applications

Busch SV-series dry rotary vane pumps are used in industrial and laboratory processes where an oil-free vacuum source is required. Common applications include packaging machinery (MAP/vacuum packaging), pick-and-place handling systems, printing and paper handling, woodworking and CNC router vacuum tables, medical and dental equipment, and general laboratory vacuum service. Because the pump runs dry, it is well suited to processes where oil contamination of the pumped gas stream is not acceptable. The SV 1016 is a compact, single-stage pump in the lower end of Busch's SV range, making it a practical choice for benchtop and small-system vacuum requirements. Busch vacuum pumps have been manufactured in Switzerland since the 1960s and the SV series carbon-vane design has been a workhorse in light industrial and packaging applications for several decades.

Condition: Used
This Busch SV 1016 B 000 1HXX dry rotary vane vacuum pump is in used condition and was pulled from a working industrial environment where it had been in service. The unit has been visually inspected and photographed. The black cast housing shows general use wear consistent with industrial service. Photo 5 shows surface rust around the top inlet port fitting and surrounding hardware — buyers should note this. The exhaust grille on the rear face is present and intact. The motor junction box and both nameplates (pump and motor) are present and legible. No testing was performed at our facility. Please review all photos carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Busch
Model:
SV 1016 B 000 1HXX
MPN:
SV 1016 B 000 1HXX
SKU:
48360
Type:
Dry Rotary Vane Vacuum Pump
Ultimate Pressure:
150 hPa (mbar)
Power Rating:
0.55 kW
Phase:
Three Phase
Voltage (50 Hz):
346-420 / 200-242 VAC
Voltage (60 Hz):
346-480 / 200-277 VAC
Current (50 Hz):
1.90 / 3.30 A
Current (60 Hz):
1.70 / 2.95 A
Speed (50 Hz):
1400 RPM
Speed (60 Hz):
1740 RPM
Frequency:
50/60 Hz
Motor Model:
ATB AF80/4C-11
Motor Part Number:
7918097 X 038
Insulation Class:
F
Enclosure Rating:
IP54
Inlet Port Outer Diameter:
0.75 in
Lubrication:
Oil-free / Dry Running
Vane Material:
Carbon (self-lubricating)
Country/Region of Manufacture:
Switzerland
Dimensions:
16 x 8.5 x 8.5 in
Form Factor:
Base-Mounted
Seller Notes:
Pump unit only — no additional accessories included.
Condition Notes:
This Busch SV 1016 B 000 1HXX dry rotary vane vacuum pump was pulled from a working industrial environment. Shows general use wear; surface rust noted around the inlet port fitting. Not tested at our facility.
