Description
Bull BDS3 BDD3022A-001 12" CRT Video Display Terminal DB25 110-240V Japan 1990

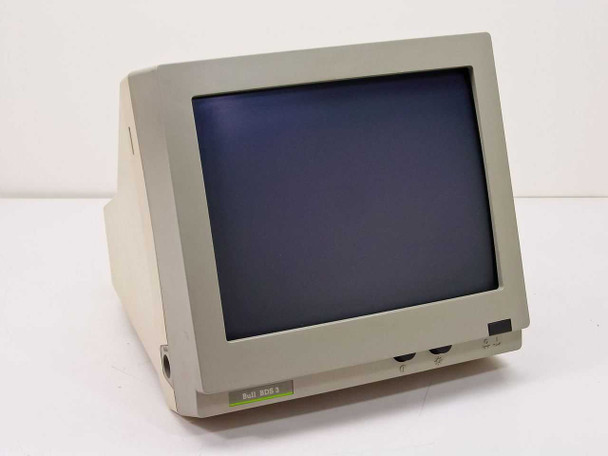

The Bull BDS3 is a 12-inch monochrome CRT video display terminal produced by Groupe Bull, the French computing company. Part number BDD3022A-001, it connects to a host system via dual DB25 serial ports (labeled MAIN and AUX on the rear) and accepts keyboard input through a DIN connector on the side panel. The unit runs on a universal 110–240V power supply, making it usable worldwide, and was manufactured in Japan in October 1990.
Specifications & What's Included
- Model: BDS 3
- Part Number: BDD3022A-001
- Screen Size: 12 inches (CRT)
- Power Input: 110–240V AC, 1.0–0.3A, 50–60Hz (universal input)
- Power Connector: IEC C14 inlet
- Host Interface: Dual DB25 ports — MAIN and AUX (rear panel)

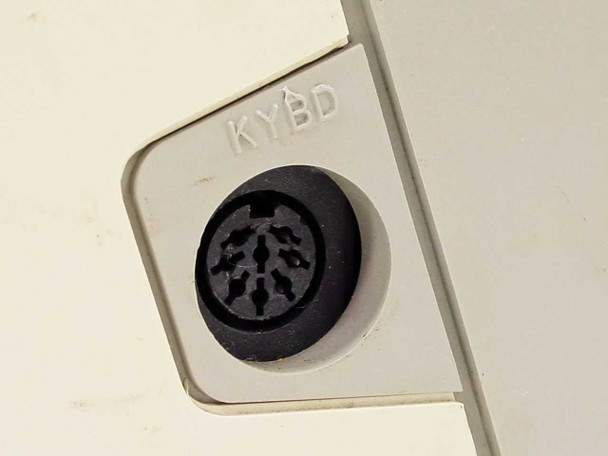

- Keyboard Connector: DIN-style KYBD port (side panel)
- Front Controls: Thumbwheel knobs for contrast and brightness; power toggle switch (0/I)

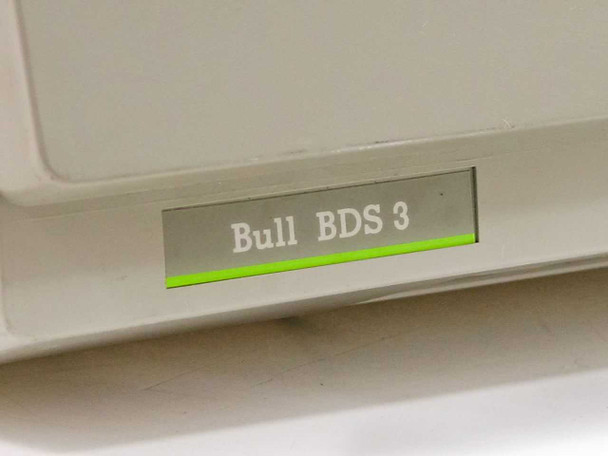

- Front Badge: IlluminatedCondition: Used
This Bull BDS3 CRT Video Display Terminal (BDD3022A-001) has been inspected and appears to be in good used condition. The housing shows the light yellowing and minor surface wear typical of early-1990s equipment that has been in storage or light use. The front-panel nameplate badge, thumbwheel controls, and keyboard connector all appear intact and undamaged. The rear DB25 MAIN and AUX ports and IEC power inlet are present and show no visible damage. This unit was not powered up or tested at our facility but was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Bull |
Model: |
BDS3 |
MPN: |
BDD3022A-001 |
Type: |
CRT Video Display Terminal |
SKU: |
12852 |
Screen Size: |
12 Inch |
Display Technology: |
CRT |
Voltage: |
110-240V AC, 50-60Hz |
Current Rating: |
1.0-0.3A |
Interface / Connector: |
Dual DB25 (MAIN and AUX), DIN Keyboard (KYBD), IEC C14 |
Keyboard Connector: |
DIN (KYBD port) |
Host Interface: |
DB25 Serial (MAIN and AUX ports) |
Country/Region of Manufacture: |
Japan |
Date of Manufacture: |
October 1990 |
FCC Compliance: |
FCC Part 15 Subpart J, Class A |
Form Factor: |
Desktop |
Compatible With: |
Bull mainframe and minicomputer systems |
Seller Notes: |
Terminal only — no keyboard or cables included. |
Condition Notes: |
This Bull BDS3 CRT Display Terminal (BDD3022A-001) is in good used condition with light yellowing and minor surface wear typical of early-1990s equipment. Not powered or tested at our facility; pulled from a working environment. |
