Buhler

Buhler 1.13.043.107B 40V DC Motor w/ Encoder 115 Pulse/Rev 5200 RPM 51mm

(No reviews yet) Write a Review
SKU:
40082
MPN:
1.13.043.107
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Buhler 1.13.043.107B 40V DC motor front view showing shaft with brass pinion gear and L-bracket mount

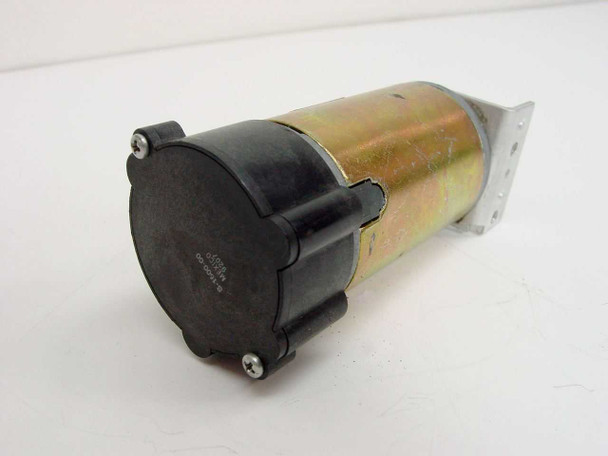

  • Buhler 1.13.043.107B DC motor rear view showing black encoder housing and end cap
  • Buhler DC motor side view showing full assembly with shaft, pinion gear, brass can body, and mounting bracket
  • Close-up of Buhler 1.13.043.107B encoder housing base showing internal disc and optical encoder components
  • Buhler motor label showing part number 1.13.043.107B, DC 40V, 066/4, Made in Germany
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Buhler 1.13.043.107B 40V DC Motor w/ Encoder 115 Pulse/Rev 5200 RPM 51mm

A compact 40V DC motor with integrated 2-phase incremental encoder, designed for precision positioning and speed feedback applications. The motor was manufactured in Germany and includes an L-bracket mount.

Specifications & What's Included

  • Voltage: 40V DC
  • No-Load Speed: 5200 RPM
  • Rated Current: 0.6 A | Maximum Current: 1.4 A
  • Encoder: 2-Phase Incremental, 115 Pulse/Revolution
  • Motor Diameter: 51 mm with round shaft and brass pinion gear
  • Mounting: L-bracket flange mount included

Applications

This motor type is commonly used in industrial automation, telecommunication equipment, and precision machinery requiring closed-loop speed control and position feedback. The encoder output enables real-time RPM monitoring and synchronization in multi-axis systems. These motors were frequently integrated into legacy telecom infrastructure, robotics, and OEM equipment where compact DC drive units with position sensing were required.

Condition: Used
This Buhler 1.13.043.107B 40V DC motor with encoder has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The motor body, encoder housing, L-bracket mount, and shaft with brass pinion gear all appear intact with no visible damage. Normal surface wear is present on the brass motor can consistent with prior installation. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Buhler
Model:
1.13.043.107B
MPN:
1.13.043.107B
Type:
DC Motor with Encoder
SKU:
40082
Voltage Rating:
40V DC
No-Load Speed:
5200 RPM
Rated Current:
0.6 A
No-Load Current:
0.07 A
Maximum Current:
1.4 A
Encoder Type:
2-Phase Incremental Encoder
Encoder Resolution:
115 Pulse/Rev
Motor Diameter:
51 mm
Shaft Type:
Round shaft with brass pinion gear
Mounting:
L-bracket / flange mount
Country/Region of Manufacture:
Germany
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes L-bracket mount. Pulled from working environment.
Condition Notes:
Buhler 1.13.043.107B 40V DC motor with encoder. Inspected and in good used condition. Pulled from a working environment. Motor body, encoder, bracket, and shaft all intact. Normal surface wear present.
View AllClose

Related Products

Related Products

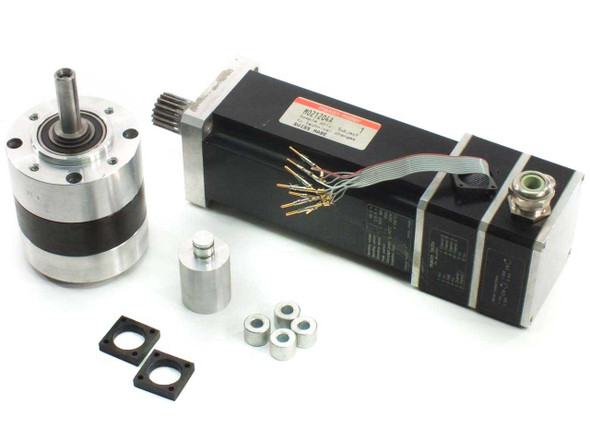

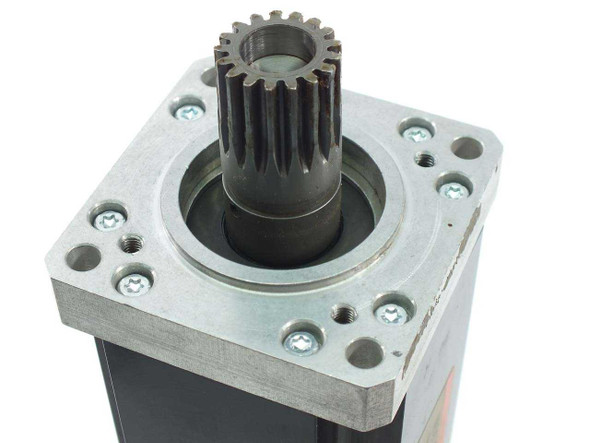

Maxon M021204A DC servo motor with planetary gearbox attached, 10-pin encoder harness, mounting adapter plate, and hardware accessories laid out Close-up of Maxon M021204A planetary gearbox output stage showing gear teeth and machined aluminum housing with mounting bolt holes
