Description
BTC 5339R-0 AT Keyboard 53 Series Coiled Cord PS/2 DIN 5-Pin 101-Key IBM PC
The BTC 5339R-0 is a full-size 101-key AT-style keyboard from BTC's 53 Series, manufactured in Taiwan and FCC-certified as a Class B computing device. It connects via a coiled DIN 5-pin (AT) cable and features a standard 101-key layout including a full numeric keypad, dedicated function keys, and a navigation cluster. Green LED indicators for Num Lock, Caps Lock, and Scroll Lock are visible on the upper right. A MACRO key is present on the lower-left of the keyboard, a feature found on some BTC keyboards of this generation for assigning programmable key sequences.
Specifications & What's Included
- Brand: BTC (Behavior Tech Computer)
- Model: 5339R-0
- Series: BTC-53 Series

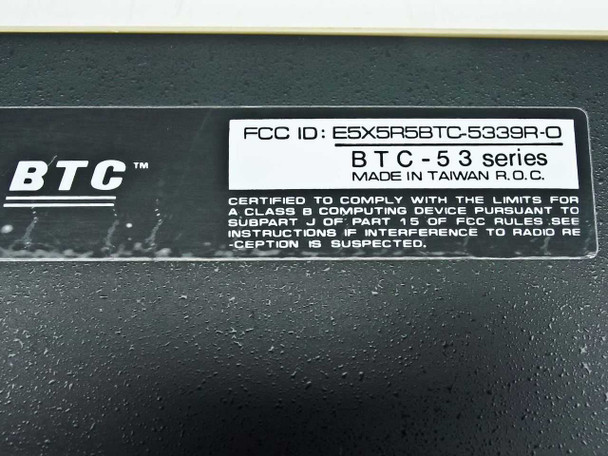

- FCC ID: E5X5R5BTC-5339R-0
- Key count: 101 keys (full size)
- Interface: AT — DIN 5-pin connector

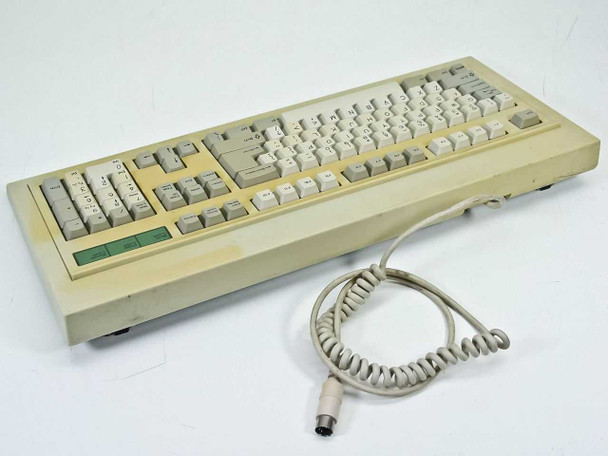

- Cable: Coiled cord (attached)
- LED indicators: Num Lock, Caps Lock, Scroll Lock (green)
- Special keys: MACRO key present
- Country of manufacture: Taiwan R.O.C.

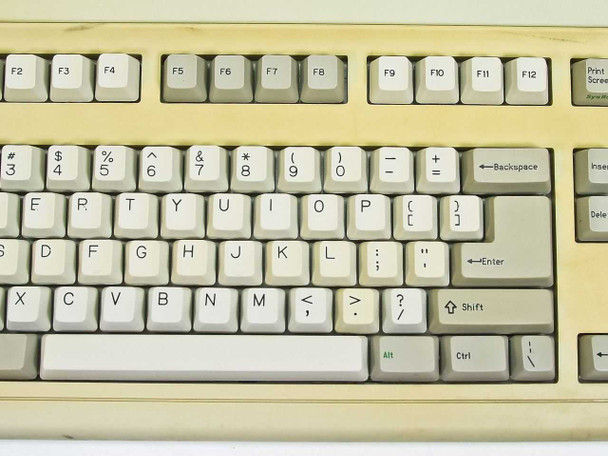

- Note: F5 keycap is missing; key switch is intact and exposed
Applications
AT-style keyboards with DIN 5-pin connectors were the standard input device for IBM PC AT compatible computers throughout the mid-1980s to mid-1990s. The AT interface preceded the smaller PS/2 mini-DIN connector, which became common from the late 1980s onward; many systems of that transitional era used one or the other, and passive adapters between AT and PS/2 were widely available. BTC (Behavior Tech Computer) was a prolific Taiwanese OEM keyboard manufacturer whose products were sold under many brand names and bundled with IBM-compatible PCs of the era. Today, AT keyboards like this one are primarily used for maintaining and operating legacy IBM PC AT, XT, and compatible systems — including older industrial computers, CNC controllers, and embedded PC platforms — that still require or expect the original AT connector. Hobbyists and vintage computer enthusiasts also seek them out for period-correct restorations.
This BTC 5339R-0 AT Keyboard (53 Series) has been tested prior to shipment and is in working condition. The housing shows noticeable yellowing throughout — typical of aged beige plastics from this era — and the case has some dirt and discoloration visible on the top surface and edges. The F5 keycap is missing, exposing the key switch underneath. All other keys and the coiled DIN 5-pin cord are present. We have had multiple units in stock; the unit shipped may vary slightly from the one photographed but will be functionally equivalent. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
BTC |
Model: |
5339R-0 |
MPN: |
5339R-0 |
Type: |
AT Keyboard |
Series: |
53 Series (BTC-53) |
SKU: |
18056 |
FCC ID: |
E5X5R5BTC-5339R-0 |
Number of Keys: |
101 |
Keyboard Layout: |
101-Key Full Size |
Connector Type: |
DIN 5-Pin (AT) |
Cable Type: |
Coiled Cord |
Interface: |
AT (DIN 5-Pin) |
Form Factor: |
Full Size Desktop |
Color: |
Beige / Cream (yellowed) |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Keyboard only with attached coiled cord; F5 keycap missing |
Compatible With: |
IBM PC AT, IBM PC XT, and compatible systems |
FCC Class: |
Class B Computing Device |
Condition Notes: |
BTC 5339R-0 AT Keyboard (53 Series) tested prior to shipment and in working condition. Housing shows yellowing and surface dirt typical of age. F5 keycap is missing. Coiled DIN 5-pin cord included. Unit shipped may vary from photo. |
