Description

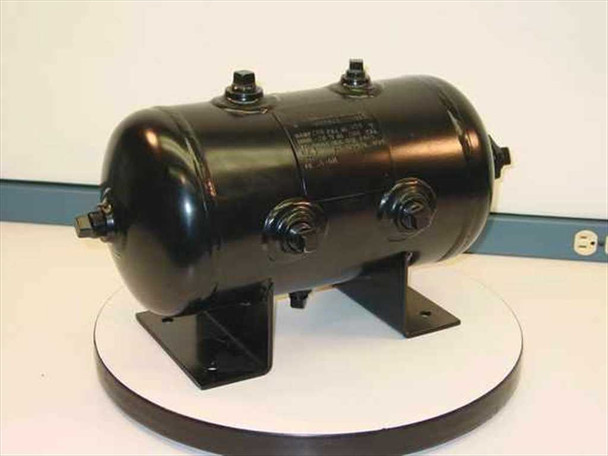

Brunner Eng. & Mfg. 0590M Air Tank 3 Gallon MAWP 200 PSI ASME Certified Receiver
The Brunner Eng. & Mfg. 0590M is a 3-gallon ASME-certified compressed air receiver tank manufactured in Quincy, IL. Built to ASME Boiler and Pressure Vessel Code Section VIII standards and stamped with National Board Number 19650, it is rated for a Maximum Allowable Working Pressure (MAWP) of 200 PSI at 450°F. The tank mounts on integral steel feet and is fitted with multiple threaded ports for flexible plumbing configurations.
Specifications & What's Included
- Model: Brunner Eng. & Mfg. 0590M
- Capacity: 3 gallons
- MAWP: 200 PSI at 450°F
- MDMT: -20°F at 200 PSI
- Certification: ASME BPVC Section VIII — National Board Certified
- National Board Number: NATL BD 19650
- Year of Manufacture: 2000
- Manufacturer: Brunner Eng. & Mfg. Inc., Quincy, IL
- Shell thickness:.094 in.
- Head thickness:.094 in.
- Mounting: Integral welded steel mounting feet
- Ports: Multiple threaded fittings on top and sides (visible in photos)
- Construction: Black-painted steel pressure vessel
- Included: Tank with mounting feet — no additional fittings, hoses, or hardware
Applications
Small ASME-certified air receiver tanks like the 0590M are used as secondary storage reservoirs in compressed air systems, smoothing pressure fluctuations and providing a buffer volume between the compressor and downstream pneumatic tools or controls. At 3 gallons, this size is well suited for point-of-use buffering on small compressors, pneumatic actuator systems, automated equipment, and laboratory or light industrial pneumatic circuits. ASME certification makes it appropriate for use wherever local codes require a code-stamped pressure vessel. Tanks of this type are also commonly used on mobile or vehicle-mounted air systems where a compact, certified receiver is needed. The integral mounting feet allow direct bolting to a panel, frame, or bench.

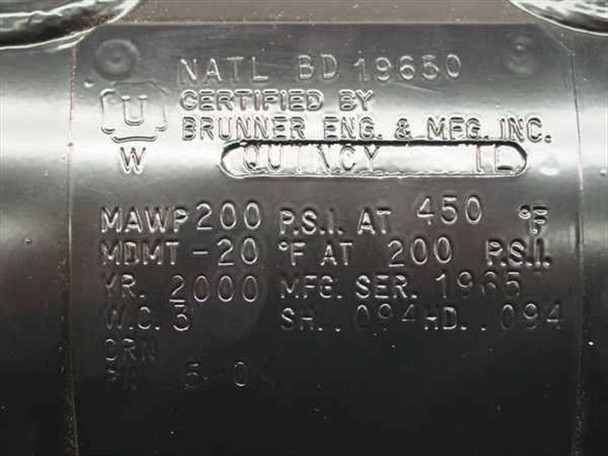

This Brunner Eng. & Mfg. 0590M 3-gallon compressed air receiver tank has been inspected and appears to be in good used condition. The black steel shell shows light surface marks consistent with normal service, and all visible port fittings and mounting feet are intact and undamaged. The ASME rating plate is clearly legible and the tank shows no visible corrosion, dents, or structural concerns. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Brunner Eng. & Mfg. |
Model: |
0590M |
MPN: |
0590M |
SKU: |
18757 |
Type: |
Compressed Air Receiver Tank |
Capacity: |
3 Gallons |
MAWP: |
200 PSI at 450°F |
MDMT: |
-20°F at 200 PSI |
Certification: |
ASME BPVC Section VIII (National Board Certified) |
National Board Number: |
NATL BD 19650 |
Year of Manufacture: |
2000 |
Manufacturer Location: |
Quincy, IL |
Mounting: |
Integral Steel Mounting Feet |
Shell Thickness: |
SH .094 |
Head Thickness: |
HD .094 |
Seller Notes: |
Tank only — no fittings, hoses, or additional hardware beyond installed ports and mounting feet. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Brunner Eng. & Mfg. 0590M 3-gallon air tank is in good used condition. Shell shows light service wear; port fittings and mounting feet intact. ASME plate legible, no visible corrosion or structural damage. Please contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
