Description

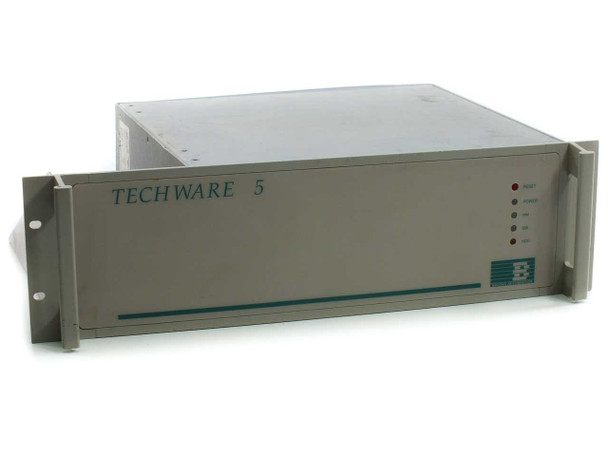

Brooks Automation Techware 5 Controller Chassis 06-80010598-001 VME Rackmount
VME rackmount controller chassis manufactured by Brooks Automation (Zero Electronic Solutions). Designed to house and power VME bus modules and cards in industrial automation and telecom environments.
Specifications & What's Included
- Model: Techware 5 (Rev C), MPN 06-80010598-001
- Form Factor: Rackmount VME chassis

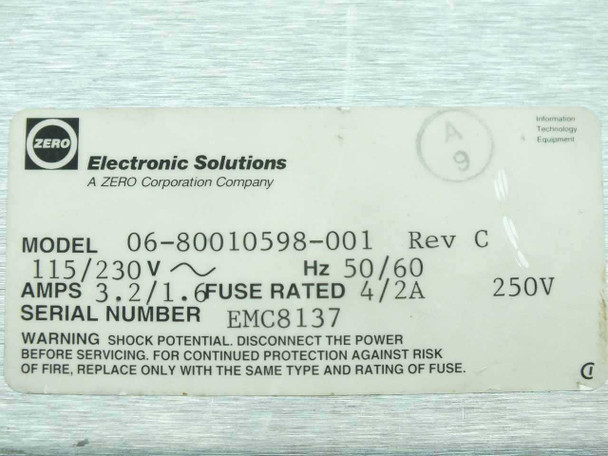

- Power Supply: Internal, 115/230V AC, 50/60Hz
- Current: 3.2A @ 115V / 1.6A @ 230V
- Fuse: 4/2A, 250V
- Bus Type: Standard VME
- VME Cards: None included
Applications
VME chassis serve as control platforms in industrial automation, telecommunications infrastructure, and data acquisition systems. The Techware 5 controller integrates with standard VME modules for signal processing, I/O control, and system management. Historically used in manufacturing plants, network switching centers, and instrumentation labs where modular, rackmount solutions were required.
Condition: For Parts or Not Working
This Brooks Automation Techware 5 VME Controller Chassis (06-80010598-001) powers up and the internal fans spin, but the front panel status lights do not illuminate. The root cause has not been diagnosed. It is being sold as-is for parts or repair and is not guaranteed functional. The chassis and power supply are present; no VME cards are included. Cosmetically the enclosure shows typical wear consistent with lab or industrial use. Please view our photo set and contact us if you have any questions.
This Brooks Automation Techware 5 VME Controller Chassis (06-80010598-001) powers up and the internal fans spin, but the front panel status lights do not illuminate. The root cause has not been diagnosed. It is being sold as-is for parts or repair and is not guaranteed functional. The chassis and power supply are present; no VME cards are included. Cosmetically the enclosure shows typical wear consistent with lab or industrial use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Brooks Automation |
Model: |
Techware 5 |
MPN: |
06-80010598-001 |
Secondary Model: |
Rev C |
Type: |
VME Controller Chassis |
SKU: |
43611 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Chassis with internal power supply only. No VME cards included. |
Form Factor: |
Rackmount |
Power Requirements: |
115/230V AC, 50/60Hz, 3.2/1.6A, Fuse 4/2A 250V |
Input Voltage: |
115/230V AC |
Frequency: |
50/60 Hz |
Current Rating: |
3.2A @ 115V / 1.6A @ 230V |
Fuse Rating: |
4/2A, 250V |
Bus Type: |
VME |
Includes VME Cards: |
No |
Manufacturer: |
Zero Electronic Solutions (A Zero Corporation Company) |
Compatible With: |
Standard VME bus modules and cards |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Brooks Automation Techware 5 VME chassis (06-80010598-001) powers up and fans spin, but front panel lights do not illuminate. Sold as-is for parts or repair — not guaranteed functional. No VME cards included. |
