Bray Series 31 3in Wafer Butterfly Valve Lever Lock 175PSI C1/316551/41655/EPON
The Bray Series 31 is a wafer-style butterfly valve with a manual lever lock actuator, designed for on/off and throttling flow control in industrial piping systems. This 3-inch (DN 76) unit carries a 175 PSI (12 Bar) pressure rating and features a 316 stainless steel disc paired with an EPDM elastomeric seat liner. The lever lock handle allows the operator to set and hold the valve in any of several discrete open positions using a toothed ratchet plate.
Specifications & What's Included
- Manufacturer: Bray Controls
- Series: 31
- Configuration Code: C1/316551/41655/EPON
- Valve Size: 3 inch (DN 76)
- Valve Style: Wafer (fits between flanges)
- Pressure Rating: 175 PSI (12 Bar)
- Disc Material: 316 Stainless Steel
- Seat / Liner Material: EPDM (EPON designation)
- Body Material: Ductile Iron (red epoxy coated)
- Actuation: Manual lever lock with multi-position ratchet plate
- Includes: Valve body with attached lever lock handle
Applications
Bray Series 31 wafer butterfly valves are widely used in water treatment, HVAC, fire protection, general industrial piping, and chemical processing systems where reliable quarter-turn flow isolation or throttling is needed. The wafer body style installs between standard ANSI flanges without the added weight and cost of lugged or flanged ends, making it a common choice for tight-space installations. EPDM seats are particularly suited to water, steam, mild acids, and many common industrial fluids, while the 316 stainless steel disc offers good corrosion resistance across a broad range of media. The lever lock actuator is a standard manual option for applications where frequent adjustment is not required and a simple, tamper-resistant position lock is preferred over a gearbox or actuator.

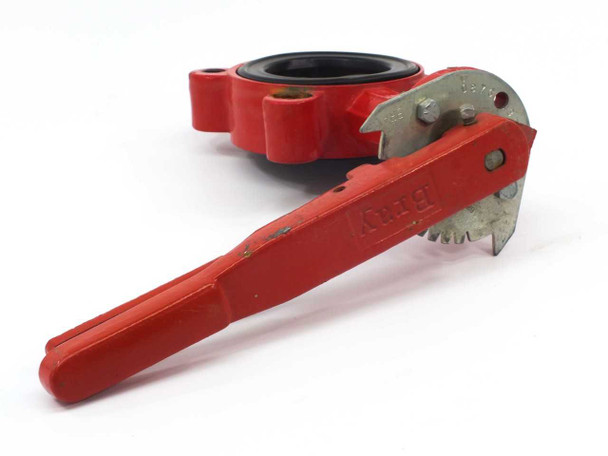

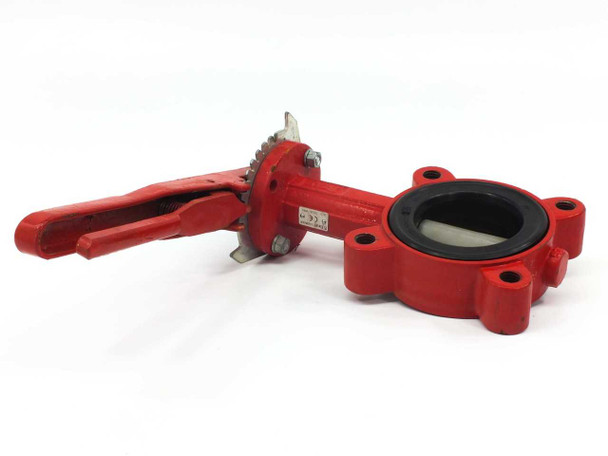

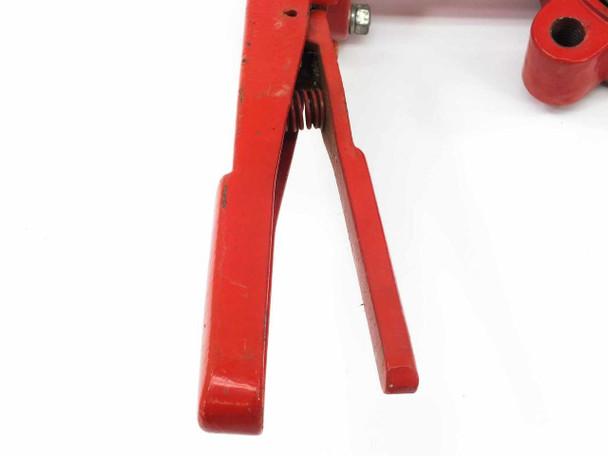

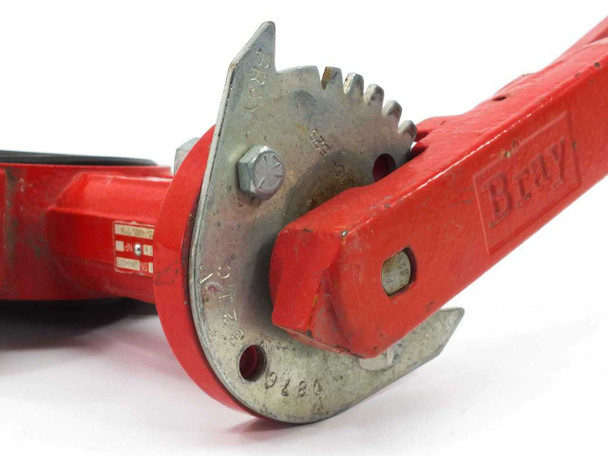

This Bray Series 31 3-inch wafer butterfly valve with lever lock has been inspected and appears to be in good used condition. The red body and disc face are clean and free of corrosion, and the EPDM seat liner looks intact with no visible cracking or deformation. The lever lock handle shows typical wear — light paint scuffing on the lever arm and some surface wear on the ratchet plate — consistent with normal service use. It was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Bray |
Model: |
Series 31 |
MPN: |
C1/316551/41655/EPON |
Type: |
Wafer Butterfly Valve |
SKU: |
48048 |
Valve Size: |
3 inch (DN 76) |
Pressure Rating: |
175 PSI (12 Bar) |
Actuation Type: |
Manual Lever Lock |
Body Material: |
Ductile Iron |
Disc Material: |
316 Stainless Steel |
Seat / Liner Material: |
EPDM |
End Connection: |
Wafer (Lug-less) |
Pipe Size: |
3 in |
Nominal Pipe Size: |
3 |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Valve with lever lock handle — no additional hardware included. |
Condition Notes: |
This Bray Series 31 3in butterfly valve with lever lock has been inspected and is in good used condition. Body and seat are clean; lever shows normal paint wear. Pulled from a working environment. Please view photos and contact us with questions. |
